Mastervolt
Mastervolt Remote On/Off Switch for AC Master Inverters
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

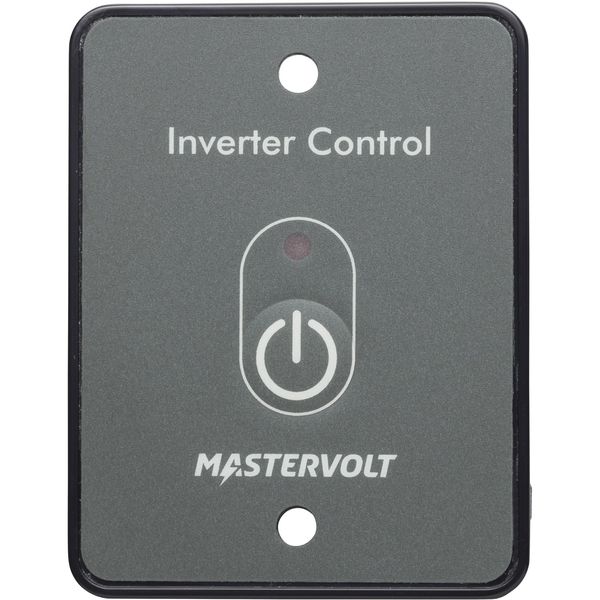

The Mastervolt AC Master Remote Control is a compact on/off panel for AC Master sine wave inverters. It provides convenient remote switching of the inverter from a chosen location, with a clear indicator that shows at a glance when the inverter is active.
As well as manual on/off control, the panel features an auxiliary input (12/24 V) that can switch the inverter on or off automatically in response to an external signal, for example when the onboard AC power is switched on or when the engine is started. This makes it easy to integrate the inverter into a wider electrical system.
The AC Master Remote Control is supplied with an 8 metre (25 ft) connection cable, so it can be mounted in a convenient position away from the inverter itself.
PRODUCT DETAILS
- Remote on/off control for AC Master sine wave inverters
- Clear indicator shows when the inverter is active
- Auxiliary 12/24 V input for automatic on/off switching
- Switches with onboard AC power or engine start
- Low standby power consumption (under 40 mA)
- Supplied with an 8 metre (25 ft) connection cable
- Compact panel for flexible mounting
- AC Master Remote Control panel
- 8 m (25 ft) connection cable
- User and installation manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Mastervolt AC Master Inverter with EU Socket (12V / 700W)
Mastervolt AC Master Inverter with UK Socket (12V / 700W)
Mastervolt AC Master Inverter with UK Socket (12V / 1000W)
Mastervolt AC Master Inverter with UK Socket (12V / 1500W)
Mastervolt AC Master Inverter With UK Socket (12V / 2500W)
Mastervolt AC Master Inverter with UK Socket (12V / 3500W)
Mastervolt AC Master Inverter with UK Socket (24V / 700W)
Mastervolt AC Master Inverter with UK Socket (24V / 1000W)
Mastervolt AC Master Inverter with UK Socket (24V / 1500W)
General specifications
| Input voltage range AUX port (optional use) | 10.5-31 V DC |
| Standby power | < 40 mA |
| Operating temperature | 0 °C to 40 |
| Delivered with | 8 m (25 ft) cable |
Physical
| Dimensions, hxw | 57 x 73.5 mm (2.2 x 2.9 inch) |
