Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

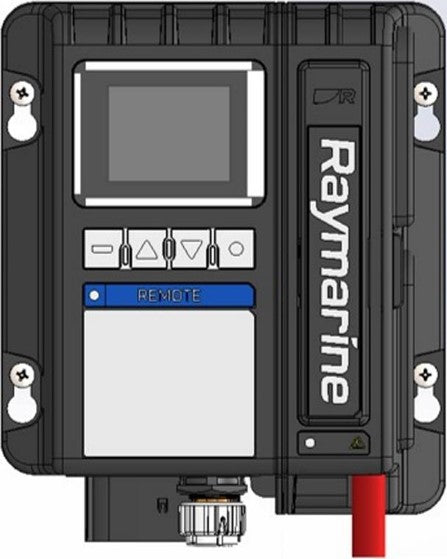

The Raymarine YachtSense Remote Module extends the reach of a YachtSense Digital Control System, letting you place switching and monitoring capability exactly where it is needed on board. Each Remote module adds eight digital or analogue signal channels and connects back to the Master module across the vessel's SeaTalkng network.
Those eight channels can control and monitor a wide range of hardware, from switches, relays and actuators to resistive sensors, pressure sensors and secondary batteries, all presented on the digital switching pages of a connected Axiom or Axiom 2 chartplotter. Like the Master module, the Remote module carries a 1.8 inch colour LCD with button controls for manual override, channel status and diagnostics, and ships with a YachtSense Power supply module. Each Remote assembly can host up to six further input and output modules, helping a single system scale to as many as 400 channels.
PRODUCT DETAILS
- Adds 8 digital or analogue input / output channels to a YachtSense system
- Connects to a Master module over a SeaTalkng backbone
- Monitors and controls switches, relays, actuators, resistive and pressure sensors and secondary batteries
- Built-in 1.8 inch colour LCD and button controls for manual override and diagnostics
- Each Remote assembly hosts up to 6 further input / output modules
- Supplied with a YachtSense Power supply module
- YachtSense Remote module (supplied fitted with SeaTalkng blanking plug and Molex connector)
- Mounting bracket and rear shim (for assemblies with 4 or more input / output modules)
- Power supply module
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Image coming soonRaymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs
Image coming soonRaymarine YachtSense High Power Output Module with 2 x 20 Amp Outputs
Raymarine Axiom 2 Pro 12 S
Power
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Module current draw | 250 mA |
| Maximum output current | 2 A (250 mA per channel) |
Connectivity
| SeaTalkng / NMEA 2000 | 1 x SeaTalkng connector |
| Input / output connections | 8 x 250 mA channels via 20-pin Molex MX150L connector |
Display
| Size (diagonal) | 1.8 in |
| Type | TFT LCD (LED backlight) |
| Resolution | 128 x 160 |
System
| Maximum current draw per assembly | 100 A |
| Input / output modules per assembly | Up to 6 |
Physical
| Dimensions (H x W x D, excl. busbars) | 165 mm x 81.00 mm x 75.50 mm |
| Weight | 0.35 kg (0.77 lb) |
