Simrad OP12 Autopilot Keypad Controller. Simrad OP12 Autopilot Keypad Controller.
Simrad OP12 Autopilot Keypad Controller.

Simrad

Simrad OP12 Autopilot Keypad Controller.

£353.99
Tax included. Shipping calculated at checkout.
000-13287-001
The OP12 is a compact keypad autopilot controller for Simrad and B&G systems. Dedicated port and starboard keys give 1 and 10 degree heading changes, with AUTO, Wind, NAV and NoDrift modes and a single mode and alarm LED. Its slim panel-mount form makes it an ideal additional control station, connected over certified NMEA 2000.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

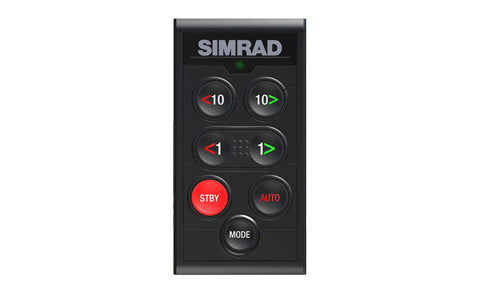

The Simrad OP12 is a compact keypad autopilot controller for Continuum and NAC-based autopilot systems. Rather than a screen, it uses a clean five-key layout: dedicated port and starboard keys adjust the set heading in one- or ten-degree steps, while AUTO, MODE and STBY keys switch between standby, automatic, Wind, NAV and NoDrift steering. A single LED gives mode and alarm feedback, glowing green in day mode and red at night.

Its slim panel-mount housing makes the OP12 an ideal additional control station at a second helm, flybridge or cockpit position, working alongside an AP44, AP48 or multifunction display on the same system. In standby it activates Non-Follow-Up steering directly from the port and starboard keys, and on sailing boats both port or both starboard keys start an automatic tack or gybe.

The OP12 connects with a single male Micro-C lead, draws very little power and carries an IPx7 waterproof rating for exposed installations.

PRODUCT DETAILS

  • Compact keypad autopilot controller for Simrad and B&G systems
  • Dedicated port and starboard keys for 1 and 10 degree heading changes
  • AUTO, Wind, NAV, NoDrift and Non-Follow-Up modes
  • Single LED mode and alarm indicator, green in day mode and red at night
  • Slim panel-mount form factor ideal as a second station
  • Certified NMEA 2000 (Micro-C), 3 LEN network load; IPx7 waterproof
  • OP12 autopilot controller
  • Micro-C drop cable, 0.6 m (2 ft)
  • Micro-C T-connector
  • 4 x mounting screws
  • Bezel
  • Suncover
  • Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Image coming soon

AC70 PCB

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Simrad GO5 XSE ROW

Simrad GO5 XSE ROW

Simrad NSO EVO3S 16 Inch MFD

Simrad NSO EVO3S 16 Inch MFD

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Electrical

Power supply9 - 16 V
Power consumption (backlight off)0.81 W (60 mA @ 13.5 V)
Power consumption (backlight max)1.38 W (102 mA @ 13.5 V)
Network load3 LEN

Connectivity

Connectors1 x male Micro-C

Mechanical

HousingPC/ABS

Environment

Waterproof ratingIPx7
Maximum humidity100% RH
Operating temperature-25 C to +65 C
Storage temperature-40 C to +85 C

Physical

Weight0.15 kg
Dimensions (W x H x D)60 x 115 x 35 mm

General

Warranty2 years
Does the OP12 have a display?
No. The OP12 is a compact keypad controller with a five-key layout and a single LED mode and alarm indicator, rather than a screen. It is ideal as an additional control station.
Which modes can I select from the OP12?
The OP12 gives access to AUTO, Wind, NAV and NoDrift modes, plus Non-Follow-Up steering, with dedicated port and starboard keys for 1 and 10 degree heading changes.
What power does the OP12 use?
The OP12 runs on 9 to 16 V with a network load of 3 LEN, connecting with a single male Micro-C lead (a 0.6 m drop cable is supplied).
Which autopilot computers is the OP12 compatible with?
The OP12 works with Simrad and B&G autopilot systems built around the NAC-2 and NAC-3 autopilot computers.
Is the OP12 suitable for an exposed helm?
Yes. The OP12 has an IPx7 waterproof rating, a PC/ABS housing and an operating range of -25 C to +65 C, and is supplied with a suncover.
What does the LED on the OP12 indicate?
The single LED shows mode and alarm status: solid in AUTO mode, flashing in Wind or NAV mode and rapidly flashing for a network alarm, glowing green in day mode and red at night.
