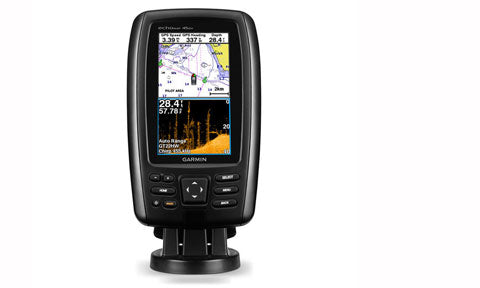

Garmin echoMAP CHIRP 45dv GPS with DownVu Preloaded with UK Cartography No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The echoMAP CHIRP 45dv is a compact 4.3 inch chartplotter and fishfinder combo that comes preloaded with UK, Ireland and north-west mainland Europe coastal maps, ready to navigate straight out of the box. Its keyed 4.3 inch sunlight-readable display is easy to operate, and the unit offers built-in support for Garmin CHIRP traditional sonar plus CHIRP DownVu scanning sonar for clear, detailed images beneath the boat when paired with a compatible transducer.
An internal 5 Hz GPS updates position and heading five times per second, while Garmin Quickdraw Contours mapping records personalised charts with 30 cm contours as you fish. NMEA 2000 support shares data from engines, sensors and other compatible devices, and the unit shares waypoints and routes with other ECHOMAP and STRIKER units. This part number is supplied without a transducer.
PRODUCT DETAILS
- 4.3 inch sunlight-readable keyed display
- Preloaded UK, Ireland and north-west Europe coastal maps
- Garmin CHIRP traditional and CHIRP DownVu sonar support
- Internal 5 Hz GPS and Quickdraw Contours mapping
- NMEA 2000 support; shares data with ECHOMAP and STRIKER units
- Supplied without a transducer
No exploded diagram available for this product.
Garmin GT21-TM Transom Mount Transducer 8 pin
Garmin GT20-TM Transom Mount 8 pin
Garmin GT23M-TM Transom Mount Transducer 8 pin
Garmin GT22TW-TM Transom Mount Transducer 8 pin
Garmin GT8HWTM Transom Mount Transducer 8 pin
Garmin 77 200kHz Trolling Motor Mount Transducer with Temperature 8 pin
Garmin Transom Trolling Motor Mount Dual Beam Transducer
Garmin Transom Trolling Motor Mount Dual Beam Transducer 8 pin
No compatible products found.
General
| GPS | Internal 5 Hz GPS |
| Preloaded cartography | UK, Ireland and north-west mainland Europe coastal maps |
| Mapping software | Garmin Quickdraw Contours (1 ft / 30 cm contours) |
| Memory card slot | 1 microSD card slot (32 GB max) |
Display
| Display size | 4.3 in diagonal (10.9 cm); 5.4 x 9.5 cm |
| Display resolution | WQVGA, 480 x 272 pixels |
| Display type | Sunlight-readable colour, keyed (non-touch) |
Sonar
| Built-in sonar | Garmin CHIRP traditional plus CHIRP DownVu (ClearVu) scanning sonar (transducer sold separately) |
| CHIRP traditional frequencies | 50 / 77 / 200 kHz |
| CHIRP DownVu frequencies | 455 / 800 kHz |
| Transmit power (RMS) | 500 W |
| Maximum depth | 701 m (2,300 ft) at 77 kHz (transducer dependent) |
Compatibility
| NMEA 2000 | Yes |
| NMEA 0183 | Yes |
| Data sharing | Shares waypoints and routes with other ECHOMAP and STRIKER units |
Physical
| Dimensions (W x H x D) | 10.2 x 16.8 x 4.6 cm (4.0 x 6.6 x 1.8 in) |
| Weight | 0.40 kg (0.9 lb) |
| Waterproof rating | IPX7 |
| Power input | 9 to 18 Vdc |
| Mount | Quick-release bail mount |
