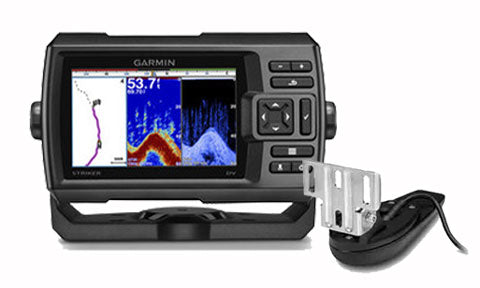

Garmin Striker 5dv GPS Fishfinder with GT20-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER 5dv puts Garmin CHIRP traditional sonar and CHIRP ClearVu down imaging on a bright 5-inch WVGA display, giving you crisp fish arches alongside near-photographic detail of structure passing below the boat. The built-in, high-sensitivity GPS marks and returns you to hot spots, slipways and docks and shows your speed over ground.
It is a fishfinder, not a chartplotter, so no charts are preloaded, but waypoints and routes can be shared with other STRIKER and echoMAP units. The supplied GT20-TM transducer includes transom and trolling-motor mounting hardware and a temperature sensor, and the rugged IPX7 housing copes with open-water and ice fishing.
PRODUCT DETAILS
- 5-inch WVGA colour display with keypad control
- Garmin CHIRP traditional sonar plus CHIRP ClearVu down imaging
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Built-in flasher and Sonar History Rewind
- Includes GT20-TM transducer with transom and trolling-motor mounts
- Rugged, waterproof to IPX7
No exploded diagram available for this product.
Garmin GT20-TM Transom Mount 8 pin
Garmin GT22TW-TM Transom Mount Transducer 8 pin
Garmin GT8HWTM Transom Mount Transducer 8 pin
Garmin 77 200kHz Trolling Motor Mount Transducer with Temperature 8 pin
Garmin Transom Trolling Motor Mount Dual Beam Transducer
Garmin Transom Trolling Motor Mount Dual Beam Transducer 8 pin
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
Display
| Display size | 5 in. (12.7 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar and Garmin CHIRP ClearVu (DownVu) scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu frequencies | 455/800 kHz |
| Transmit power | 300 W (RMS), 2,400 W (peak-to-peak) |
| Maximum depth | 2,300 ft (701 m) freshwater; 1,100 ft (335 m) saltwater |
| Transducer included | Garmin GT20-TM transom-mount transducer (4-pin) with built-in temperature sensor |
| Sonar features | Built-in flasher, Sonar History Rewind, Smooth Scaling, A-scope, split-screen zoom |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Waypoint sharing | Share waypoints and routes with other STRIKER and echoMAP units |
Physical
| Dimensions (W x H x D) | 18.8 x 11.6 x 5.4 cm (7.4 x 4.6 x 2.1 in.) |
| Weight | 0.43 kg (15.2 oz) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 10 to 20 Vdc; rated current 1 A |
