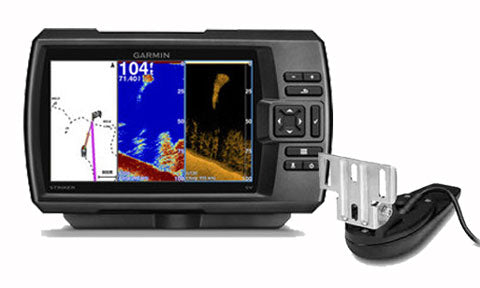

Garmin Striker 7dv GPS Fishfinder with GT20-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER 7dv combines Garmin CHIRP traditional sonar with CHIRP ClearVu down imaging on a large, clear 7-inch WVGA display, so fish arches and underwater structure are easy to read at a glance. A built-in, high-sensitivity GPS lets you mark and return to hot spots, slipways and docks and keep an eye on your speed over ground.
As a fishfinder rather than a chartplotter it carries no preloaded charts, but waypoints and routes can be shared with other STRIKER and echoMAP units. The supplied GT20-TM transducer ships with transom and trolling-motor mounting hardware and a temperature sensor, and the rugged IPX7 housing suits open-water and ice fishing.
PRODUCT DETAILS
- 7-inch WVGA colour display with keypad control
- Garmin CHIRP traditional sonar plus CHIRP ClearVu down imaging
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Built-in flasher and Sonar History Rewind
- Includes GT20-TM transducer with transom and trolling-motor mounts
- Rugged, waterproof to IPX7
No exploded diagram available for this product.
Garmin Panoptix PS21 Forward Sonar Transducer Trolling Motor Mounting Ethernet
Garmin GT21-TM Transom Mount Transducer 8 pin
Garmin Panoptix PS31 Forward Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin GT20-TM Transom Mount 8 pin
Garmin Panoptix PS30 Down Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin Panoptix PS60 Down Sonar Transducer Thru Hull Mounting with Fairing Block Ethernet
Garmin GT8HWTM Transom Mount Transducer 8 pin
Garmin 77 200kHz Trolling Motor Mount Transducer with Temperature 8 pin
Garmin Transom Trolling Motor Mount Dual Beam Transducer
Garmin Transom Trolling Motor Mount Dual Beam Transducer 8 pin
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
Display
| Display size | 7 in. (17.8 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar and Garmin CHIRP ClearVu (DownVu) scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu frequencies | 455/800 kHz |
| Transmit power | 300 W (RMS), 2,400 W (peak-to-peak) |
| Maximum depth | 2,300 ft (701 m) freshwater; 1,100 ft (335 m) saltwater |
| Transducer included | Garmin GT20-TM transom-mount transducer (4-pin) with built-in temperature sensor |
| Sonar features | Built-in flasher, Sonar History Rewind, Smooth Scaling, A-scope, split-screen zoom |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Waypoint sharing | Share waypoints and routes with other STRIKER and echoMAP units |
Physical
| Dimensions (W x H x D) | 23.5 x 14.0 x 5.8 cm (9.3 x 5.5 x 2.3 in.) |
| Weight | 0.68 kg (24.0 oz) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 10 to 20 Vdc; rated current 1 A |
