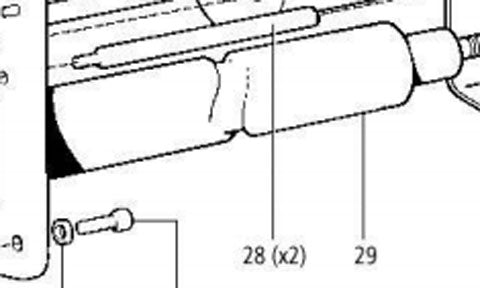

Raymarine Long Stroke Linear Drive Module

Name: Raymarine Long Stroke Linear Drive Module
Brand: Raymarine
SKU: N005
Price: 1620.00 GBP
Availability: InStock

£1,620.00

Tax included. Shipping calculated at checkout.

N005

The Long Stroke Linear Drive Module is the drive motor used in Raymarine Type 2 mechanical linear autopilot drives. This long-stroke module corresponds to the long-stroke (400 mm / 16 in) linear drive configuration. It forms the powered element of a below-decks linear drive, moving the rudder via the tiller arm or quadrant under autopilot control.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £145.80
+2 years (up to 5 years total) £291.60

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Long Stroke Linear Drive Module is the electric drive motor at the heart of a Raymarine Type 2 mechanical linear autopilot drive. Driven by the autopilot's actuator control unit, it operates a push and pull linear drive through a gearbox to move the boat's rudder via the tiller arm or quadrant. This long-stroke module corresponds to the long-stroke (400 mm / 16 in) linear drive configuration.

An electro-mechanical clutch allows the drive to freewheel for smooth hand-steering when the autopilot is disengaged. This unit forms part of an Evolution or SmartPilot autopilot system and is intended as a drive motor for the corresponding Type 2 linear drive.
