Raymarine Evolution EV-400 Sail Autopilot Pack

Raymarine

Raymarine Evolution EV-400 Sail Autopilot Pack

Name: Raymarine Evolution EV-400 Sail Autopilot Pack
Brand: Raymarine
SKU: T70161
Price: 2995.00 GBP
Availability: InStock

£2,995.00

Tax included. Shipping calculated at checkout.

T70161

Evolution autopilot pack for large sailing yachts with mechanical steering. Combines the EV-1 Sensor Core, the 30 amp ACU-400, p70s control head, rotary rudder reference sensor and cabling kit; complete with any Type 2 or Type 3 drive unit.

Quantity

✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £269.55
+2 years (up to 5 years total) £539.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

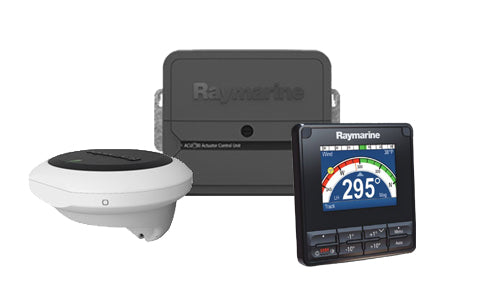

The Raymarine Evolution EV-400 Sail Pilot (T70161) is the autopilot brain for large sailing yachts with mechanical steering. At its centre is the ACU-400 actuator control unit, delivering up to 30 A of continuous drive current for the Type 2 and Type 3 drives such installations demand: mechanical linear, hydraulic linear or rotary. A rotary rudder feedback unit is included for precise rudder angle sensing, alongside the 9-axis EV-1 Sensor Core, p70s push-button control head and the Evolution SeaTalkng cabling kit.

Choose any compatible Type 2 or Type 3 mechanical linear, rotary or hydraulic linear autopilot drive to complete the system; the ACU-400 runs on 12 or 24 volt supplies and powers the SeaTalkng bus. Wind vane steering with AutoTack is available with a networked wind instrument, and a compatible Axiom chartplotter can command the pilot. Raymarine has issued a recall notice affecting certain ACU-400 units; contact us with your serial number for guidance.

PRODUCT DETAILS

EV-1, ACU-400, p70s head, rotary rudder reference and cabling kit
For large sailboats with mechanical steering systems
Complete with any Type 2 or Type 3 mechanical linear, rotary or hydraulic linear drive
ACU-400 delivers up to 30 A continuous drive current, 12 / 24 V dc
Rotary rudder feedback sensor kit included
Pilot control also available from compatible Axiom chartplotters

EV-1 Sensor Core (E70096)
ACU-400 actuator control unit (E70100)
p70s control head (E70328)
Rudder angle reference transducer (M81105)
Evolution cabling kit (R70160)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.
