Raymarine Alpha 7 Performance Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

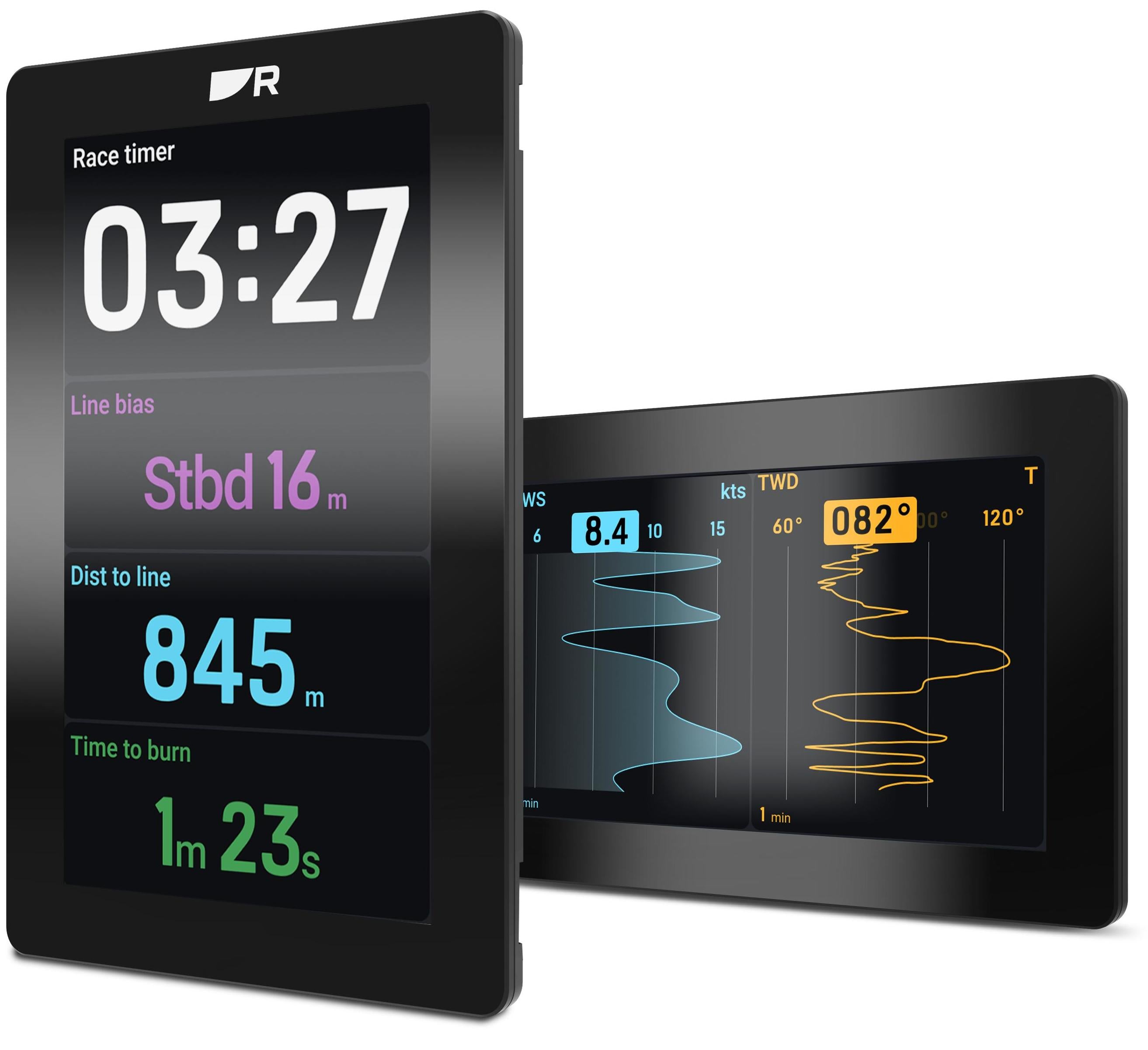

The Raymarine Alpha 7 Performance Display (E70649) is a 7 inch sailing instrument built for fast, glance friendly decision making. Its 1500 nit IPS touchscreen stays readable through polarised sunglasses, the HydroTough nano-coated glass shrugs off water, oil and fingerprints, and an ambient light sensor trims brightness automatically.
Mount it at the helm or on the mast, in portrait or landscape, flush, surface or retrofitted into the cutout of an existing ST60, i50, i60 or i70 series instrument. A single waterproof cable, sold separately, carries both power and RayNet data, and up to four Alpha displays can be daisy chained from one feed.
The Alpha 7 is not a standalone instrument: it must be networked to a Raymarine Axiom or Axiom 2 Series chartplotter running LightHouse 4 v4.7.172 or later, which feeds it wind, speed, depth, navigation and engine data from the sensors on that network. With Alpha 3.0 software it also gives full Evolution autopilot control, including Steer to Wind for sailing.
PRODUCT DETAILS
- 7 inch polarised sunglasses friendly IPS touchscreen with high brightness, high contrast and wide viewing angles
- 1500 nits peak brightness with an ambient light sensor for automatic adjustment
- HydroTough nano-coated, impact resistant glass repels water, oil and smudges
- Flush, surface, retrofit or mast mounting in portrait or landscape orientation
- Retrofit option fits the mounting hole of an existing ST60, ST60+, i50, i60, i70 or i70s instrument
- Single waterproof cable carries both power and RayNet data (sold separately)
- Daisy chain up to 4 Alpha displays from one power feed, up to 10 per network
- Fully customisable pages and widgets for wind, speed, depth, navigation, engine and pilot data
- Evolution autopilot control from the display via a LightHouse 4 MFD (v4.7.172 or later)
- Requires a Raymarine Axiom or Axiom 2 Series chartplotter (not a standalone instrument)
- Alpha Series performance display
- Suncover
- Waterproof gasket
- Documentation pack
- 4x Threaded studs (M4 x 40 mm)
- 4x Thumb nuts
- 2x Mounting brackets
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Alpha Power & RayNet Cable 1m
Raymarine Alpha Power & RayNet Cable 3m
Raymarine Alpha Power & RayNet Cable 5m
Raymarine Alpha Power & RayNet Cable 10m
Raymarine Alpha Daisy Chain Cable 0.3m
Raymarine Alpha Daisy Chain Cable 1m
Raymarine Alpha 7 Single Mast Bracket (Landscape)
Raymarine Alpha 7 Dual Mast Bracket (Landscape)
Raymarine Alpha 7 Single Mast Bracket (Portrait)
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 Pro 12 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 XL 16 Chartplotter Kit
Raymarine Axiom 2 XL 19 Chartplotter Kit
Raymarine Axiom 2 XL 22 Chartplotter Kit
Raymarine Axiom 2 XL 24 Chartplotter Kit
Raymarine Alpha 9 Performance Display
RNS-5 Gigabit Raynet Network Switch
Raymarine RNS8 - RayNet 8 Port Gigabit Network Switch with 4 POE Ports
Raymarine DST810 Gen2 Smart Transducer
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Display
| Screen type | 7 in IPS TFT LCD |
| Resolution | 1024 (H) x 600 (V) |
| Aspect ratio | 15.4:9 |
| Brightness / luminance | 1500 nits / 1500 cd/m2 |
| Pixel density | 170 PPI |
| Viewing angles | Portrait 85+ / 85+; Landscape 85+ / 85+ |
| Colour | 24-bit color (16.7 million colors) |
| Refresh rate | 60 Hz |
Power
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 10.8 V to 32 V dc |
| Current | 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dc |
| Power consumption | 10 W (maximum) |
| Inline fuse rating | 8 A |
| Thermal breaker rating | 8 A |
| Fuse rating by displays in series | 1 display 2 A; 2 displays 4 A; 3 displays 6 A; 4 displays 8 A |
Connections
| Data connections | 1x daisy-chain connector; 1x power / RayNet Ethernet connector |
| Power and data cable | Single combined power and RayNet cable, sold separately (1 m, 3 m, 5 m or 10 m) |
| Daisy chaining | Up to 4 displays in a series; up to 10 Alpha displays per network |
System
| MFD requirement | Requires a Raymarine Axiom Series or Axiom 2 Series MFD (not a standalone product) |
| Compatible MFDs | Axiom 2 Pro, Axiom 2 XL, Axiom, Axiom+, Axiom Pro, Axiom XL |
| Required MFD software | LightHouse 4, v4.7.172 or later |
| Autopilot control | Evolution Series autopilot control via a LightHouse 4 (v4.7.172 or later) MFD |
| Data page categories | Battery, Boat, Depth, Distance, Engine, Environment, Fuel, GPS, Generators, Heading, Inside environments, Navigation, Pilot, Speed, Time, Water tanks, Wind |
Physical
| Width | 118.6 mm (4.67 in) |
| Height | 188.4 mm (7.42 in) |
| Depth | 32 mm (1.26 in) |
| Weight | 0.72 kg (1.59 lbs) |
| Port separation distance | 5.71 mm (0.22 in) |
| Mounting options | Flush, surface, retrofit / offset, or mast mounting, in portrait or landscape |
| Retrofit mounting | Fits the mounting hole of an existing Raymarine ST60, ST60+, i50, i60, i70 or i70s instrument |
Environmental
| Operating temperature range | -25°C to +55°C (-13°F to +131°F) |
| Storage temperature range | -30°C to +70°C (-22°F to +158°F) |
| Relative humidity | 93% max |
| Waterproof rating | IPx6 and IPx7 |
Conformance
| Europe, Australia and New Zealand | EN 60945:2002 |
| Canada | ICES-003 |
| USA | CFR47 Part 15 |
| Japan / China | IACS section E10 |
| Product markings | UKCA, CE, Australian Tick, WEEE, Industry Canada |
| EU Declaration of Conformity | EUDOC1342 (Directive 2014/30/EU) |
| UK Declaration of Conformity | UKDOC 1342 (UK SI 2016 No 1091) |
