Simrad

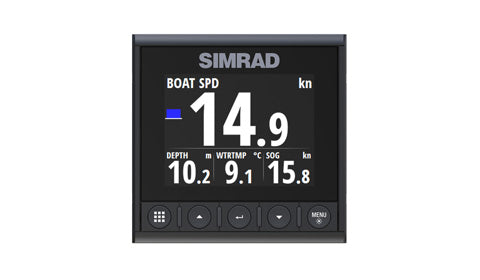

Simrad IS42 Digital Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad IS42 is a multi-purpose marine instrument with a full-colour 4.1-inch display and modern glass-helm styling. It shows wind, speed, depth, engine data, AIS information, autopilot status and much more across a series of customisable data pages, automatically presenting the most relevant information from your NMEA 2000 network.
The IS42 integrates seamlessly with Simrad multifunction displays and glass-helm systems, and can also work as a standalone instrument display and autopilot controller aboard smaller vessels. Adding the optional OP12 keypad gives you full physical control of a connected Simrad autopilot system, making it a flexible choice for both sail and power boats.
Compact and rugged, the IS42 is waterproof to IPX7 and bonded for a clear, condensation-free view in any conditions. It connects to a single NMEA 2000 backbone with a network load of 4 LEN and mounts easily at the helm.
PRODUCT DETAILS
- 4.1-inch full-colour display with glass-helm styling
- Shows wind, speed, depth, engine, AIS and autopilot data
- Customisable data pages auto-populated from NMEA 2000
- Optional OP12 keypad adds full Simrad autopilot control
- Works standalone or alongside Simrad MFDs and glass helms
- Waterproof to IPX7 with a network load of 4 LEN
No exploded diagram available for this product.
No compatible transducers listed for this product.
B&G AC42N AUTOPILOT COMP WITH 5.5M MICRO-C
B&G, Simrad NAC-2 Autopilot Computer
Simrad OP12 Autopilot Keypad Controller.
Simrad NSS 4 - 10" Chartplotter and Fishfinder
B&G, Simrad NAC-3 Autopilot Computer
Simrad NSS evo3 9
Simrad NSS evo3 12
Simrad GO9 XSE Multi-function display
Simrad GO7 XSE Multi-function display
Simrad NSO evo3 Glass Bridge 16 Inch Display Only
Simrad NSO EVO3S 16 Inch MFD
Display
| Size | 4.1 inch diagonal, 4:3 aspect ratio |
| Type | Transmissive TFT-LCD, white LED backlight |
| Resolution | 320 x 240 pixels |
| Illumination | White for day mode; red, green, blue or white for night mode |
Electrical
| Power consumption (backlight off) | 1.35 W (100 mA) at 13.5 V |
| Power consumption (backlight max) | 2.16 W (160 mA) at 13.5 V |
Connectivity
| Network | NMEA 2000 |
| Network load | 4 LEN |
Environment
| Waterproof rating | IPX7 |
| Humidity | 100% RH |
| Operating temperature | -25 C to +65 C (-13 F to +149 F) |
| Storage temperature | -40 C to +85 C (-40 F to +185 F) |
Physical
| Weight | 0.32 kg (0.7 lbs) |
| Width | 118 mm (4.64 in) |
| Height | 115 mm (4.52 in) |
| Depth | 36.5 mm (1.43 in) |
| Colour | Black |
No videos available for this product.
