Mastervolt

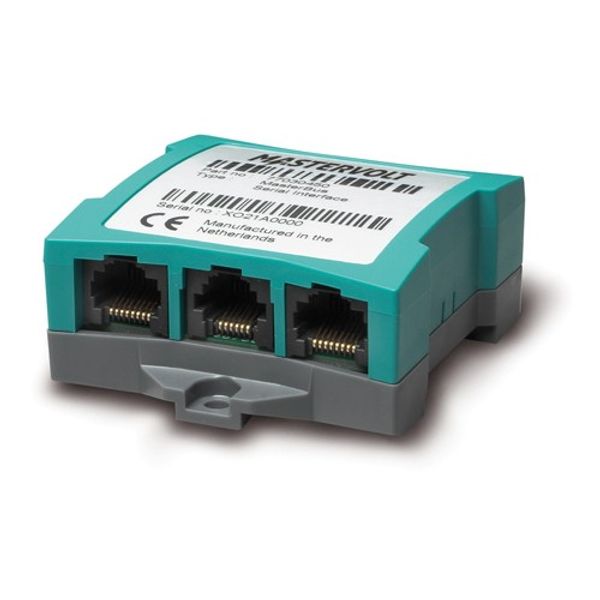

Mastervolt MasterBus Serial Interface
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt MasterBus Serial Interface connects conventional Mastervolt products to a MasterBus network, making their data permanently available so they can be configured, operated and monitored from an EasyView 5 display or a PC. It is the bridge that brings older or non-networked Mastervolt equipment into your intelligent, fully integrated system.
The interface is suitable for the Masterlink BTM-III battery monitor and the Mac and Magic DC-DC converters. It is supplied with an interface connection cable, a MasterBus cable, a MasterBus terminator and a manual, and shares the compact, IP21-rated housing of the wider MasterBus interface range.
PRODUCT DETAILS
- Connects conventional Mastervolt products to MasterBus
- Makes data permanently available on the network
- Configure, operate and monitor via EasyView 5 or PC
- Suitable for Masterlink BTM-III, Mac and Magic DC-DC converters
- Supplied with interface cable, MasterBus cable and terminator
- Compact housing, IP21 protection
- Interface connection cable
- MasterBus cable
- MasterBus terminator
- Manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
Mastervolt Magic 24/12-20
Mastervolt Magic 24/24-20
Mastervolt Magic DC-DC Converter (12V In / 24V 10A Out)
Mastervolt Magic 12/12-20
Mastervolt Mac Plus 12/12-50
Mastervolt Mac Plus Voltage Converter + CZone (24V - 12V DC / 50A)
Mastervolt Mac Plus Voltage Converter + CZone (12V - 24V DC / 30A)
Mastervolt Mac Plus Voltage Converter + CZone (24V - 24V DC / 30A)
Mastervolt Mac Plus Voltage Converter + CZone (24V - 24V DC / 50A)
General
| MasterBus powering | No |
| Operating temperature | 0 - 40 °C |
| Delivered with | Interface connection cable, MasterBus cable, MasterBus terminator, manual |
Physical
| Dimensions (h x w x d) | 66 x 78 x 32 mm |
| Weight | 0.08 kg |
Technical
| Protection degree | IP21 |
