Maretron

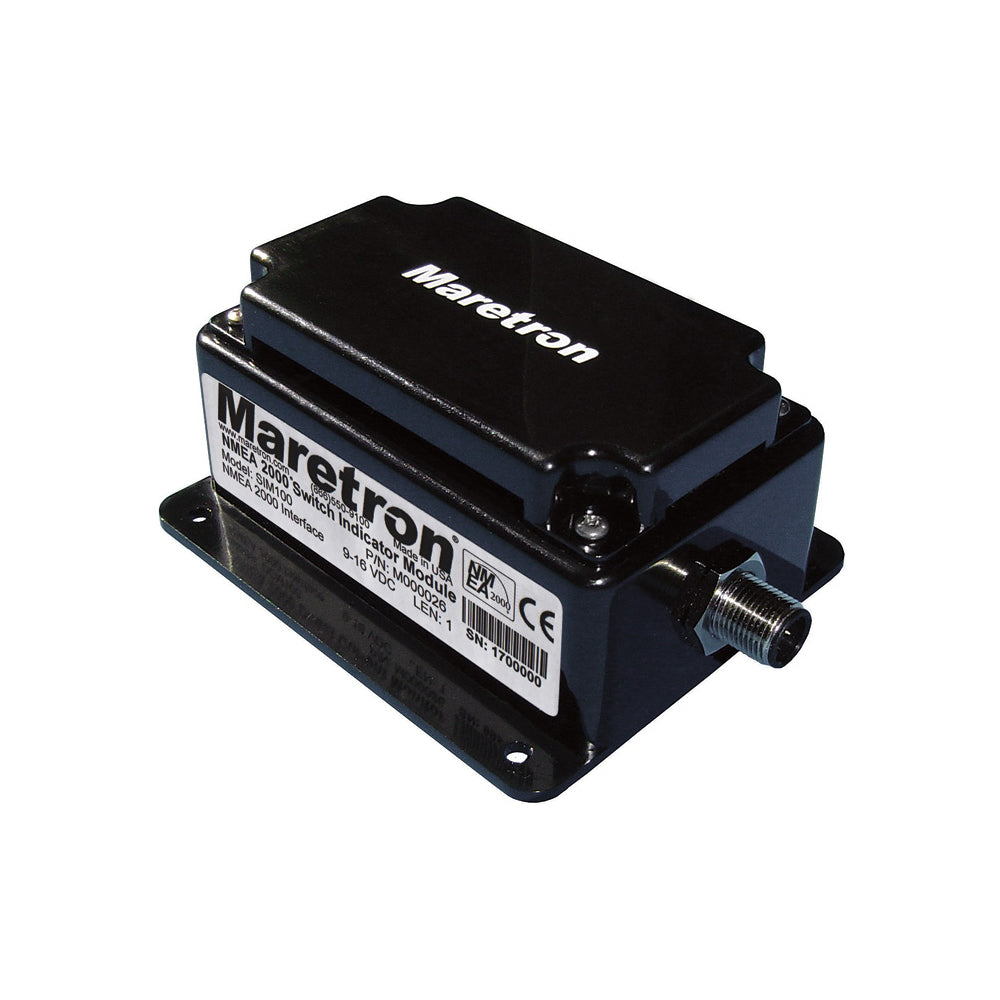

SWITCH INDICATOR MODULE
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron SIM100 Switch Indicator Module continually monitors switch-closure devices interconnected on your NMEA 2000 network, from safety equipment such as smoke, heat, carbon monoxide and explosive-vapour detectors to security devices like motion, vibration and door or hatch magnetic switches, and vessel-monitoring signals such as valve position or high bilge water. When a switch changes state, the SIM100 alerts the crew so potential problems can be investigated early.
Two switch types are supported across the module's six channels. An advanced feature detects whether power has been lost to a monitored device or whether its signal wires have become disconnected, whether through corrosion, tampering or any other cause, so faults are not silently missed. The information is displayed anywhere on the vessel using a compatible NMEA 2000 display such as the Maretron DSM410 or DSM570.
PRODUCT DETAILS
- Monitors up to six switch-closure devices over NMEA 2000
- Ideal for smoke, heat, CO and explosive-vapour safety switches
- Supports security switches and vessel-monitoring signals such as high bilge water
- Detects lost power or disconnected signal wiring from corrosion or tampering
- Waterproof (IP64) and rated to 55C for mounting in any orientation
- Broadcasts switch state to any compatible NMEA 2000 display
No exploded diagram available for this product.
No compatible transducers listed for this product.
Maretron Carbon Monoxide Detector
Maretron Magnetic Switch Rectangular Indoor SIM100 Accessory
Image coming soonMaretron Magnetic Switch Cylinder Indoor/Outdoor
Maretron Magnetic Switch Recessed Indoor/Outdoor SIM100 Accessory
Image coming soonMaretron Smoke / Heat Detector Hi Temp Kit
Image coming soonSMOKE/HEAT DETECTOR KIT
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | 100mA |
| Load Equivalence Number (LEN) | 2 |
| Reverse Battery Protection | Yes, indefinitely |
| Load Dump Protection | Yes, energy rated per SAE J1113 |
| End of Line Resistor | 8 kOhm plus/minus 5% (included with Maretron sensors) |
Mechanical
| Size | 3.50" x 4.20" x 2.03" (88.9mm x 106.7mm x 51.6mm) including mounting flanges |
| Weight | 13 oz. (368.5 g) |
Environmental
| Degree of Protection | IP64 |
| Operating Temperature | -25C to 55C |
| Storage Temperature | -40C to 70C |
| Relative Humidity | 93% RH @ 40C per IEC 60945-8.2 |
NMEA 2000
| NMEA 2000 Standard | Level A |
| Number of Switch Channels | 6 |
Certifications
| Compliance | IEC 61162-3, tested to IEC 60945, FCC and CE Mark |
