Raymarine CP570 Professional CHIRP Sonar Module Raymarine CP570 Professional CHIRP Sonar Module
Raymarine CP570 Professional CHIRP Sonar Module

Raymarine

Raymarine CP570 Professional CHIRP Sonar Module

£1,895.00
Tax included. Shipping calculated at checkout.
E70258

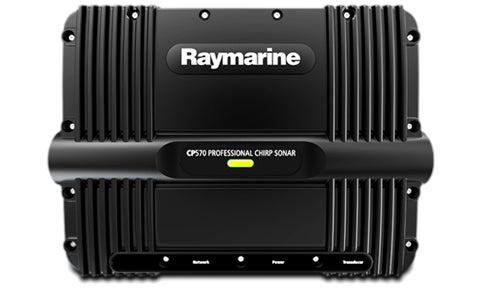

The CP570 is a professional 2 kW dual-channel CHIRP sonar module with up to 4 kW of combined power. Its two fully independent channels deliver fast target identification and high-resolution imagery for serious offshore and tournament fishing, with bottom tracking to 3,000 m (10,000 ft) and a RayNet connection to compatible LightHouse displays.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

HME Care Plus

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

Engineered for serious anglers, the Raymarine CP570 is a professional dual-channel CHIRP sonar module that brings best-in-class target separation and high-resolution sonar imagery to compatible Raymarine LightHouse multifunction displays. Using a wide spectrum of frequencies and greater sensitivity, its advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines and simultaneously target the game fish you want.

The CP570's two fully independent 2 kW sonar channels deliver up to 4 kW of combined output power and faster target identification, letting you hunt different parts of the water column at once. Rated for offshore use and rough conditions, it tracks the sea floor down to 3,000 m (10,000 ft) with ten times the resolution of ordinary sonar, while TruZoom magnification and ultra-fast ping-rate processing keep targets sharp and bottom tracking accurate.

The module automatically recognises connected transducers and optimises its settings, and connects to the network over RayNet. Choose low, medium and high CHIRP transducers in standard or wide-beam to match your fishing.

PRODUCT DETAILS

  • Professional 2 kW dual-channel CHIRP sonar module with up to 4 kW of combined output power
  • Two fully independent CHIRP channels for faster target identification across the water column
  • Wide-spectrum CHIRP transceiver sees through baitfish, identifies thermoclines and targets game fish
  • Tracks the sea floor down to 3,000 m (10,000 ft) for offshore and tournament fishing
  • Ten times the resolution of ordinary sonar with sharper, better-defined targets
  • TruZoom magnification and ultra-fast ping-rate processing for accurate bottom tracking
  • Automatically recognises connected transducers and optimises sonar settings
  • Connects to Raymarine LightHouse multifunction displays over the RayNet network
  • Sonar module
  • Power cable 1.5 m (5 ft)
  • Fixings x 4
  • Cable ferrite
  • Documentation
  • RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)

No exploded diagram available for this product.
