Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

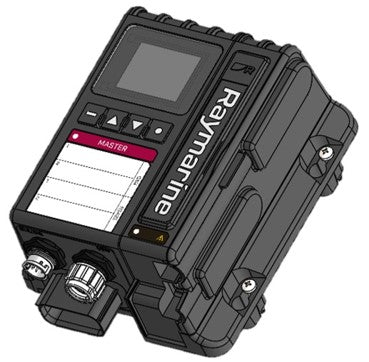

The Raymarine YachtSense Master Module is the brains of the YachtSense Digital Control System and the starting point for every installation. It is the central processor that maps your vessel's wiring to the digital switching pages shown on a connected Raymarine chartplotter, giving complete command of lighting, pumps, motors and other electrical loads from one screen.
The Master Module is the main connection point to the Raymarine Axiom chartplotter network, linking the system over both RayNet Ethernet and a SeaTalkng / NMEA 2000 backbone. Two J1939 and two RS-485 connections allow integration of OEM smart devices such as air-conditioning units and chillers. A 1.8 inch colour LCD with button controls provides manual override, channel status and on-module diagnostics. Remote modules are added over SeaTalkng to expand the system to as many as 400 channels, and the Master Module ships complete with a YachtSense Power supply module.
PRODUCT DETAILS
- Central processor and main connection point to the Raymarine Axiom chartplotter network
- Connects via RayNet (SeaTalkhs) Ethernet and SeaTalkng / NMEA 2000
- 2 x J1939 and 2 x RS-485 connections for OEM smart devices (air-conditioning, chillers)
- Built-in 1.8 inch colour LCD and button controls for manual override and diagnostics
- Required for every YachtSense system; expandable to Remote modules over SeaTalkng
- Supplied with a YachtSense Power supply module
- YachtSense Master module (supplied fitted with SeaTalkng blanking plug and Molex connector)
- Mounting bracket and rear shim (for assemblies with 4 or more input / output modules)
- Power supply module
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Image coming soonRaymarine Axiom 2 XL 16 Chartplotter Kit
Image coming soonRaymarine Axiom 2 XL 19 Chartplotter Kit
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Yachtsense Link Marine Cloud Router
Image coming soonRaymarine Axiom 2 XL 22 Chartplotter Kit
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Image coming soonRaymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs
Image coming soonRaymarine Axiom 2 XL 24 Chartplotter Kit
Image coming soonRaymarine YachtSense High Power Output Module with 2 x 20 Amp Outputs
Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs
Raymarine Axiom 2 Pro 12 S
Power
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Module current draw | 350 mA |
Connectivity
| Network (control) | 1 x RayNet type SeaTalkhs connector 10/100/1,000 Mbits/s |
| SeaTalkng / NMEA 2000 | 1 x SeaTalkng connector |
| CAN bus / Serial | 2 x J1939 and 2 x RS-485 connections via 16-pin Molex MX150L connector |
Display
| Size (diagonal) | 1.8 in |
| Type | TFT LCD (LED backlight) |
| Resolution | 128 x 160 |
System
| Maximum current draw per assembly | 100 A |
| Maximum channels per system | 400 |
| Input / output modules per assembly | Up to 6 |
Physical
| Dimensions (H x W x D, excl. busbars) | 165 mm x 81.00 mm x 75.50 mm |
| Weight | 0.37 kg (0.78 lb) |
