Simrad

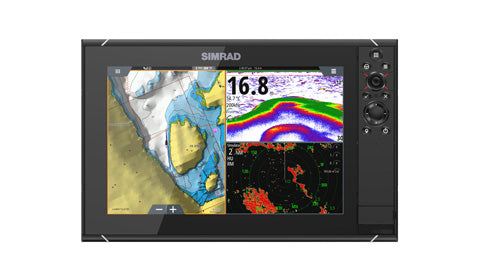

Simrad NSS12 EVO3S 12 Inch MFD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The NSS12 evo3S brings Simrad's premium hybrid-touch experience to a 12-inch SolarMAX HD IPS display, driven by the responsive iMX 8 processor. The optically bonded screen resists fogging and stays readable in direct sun and through polarised lenses, while the touchscreen, keypad and rotary dial give confident control in any sea state.
A built-in 1 kW CHIRP echosounder feeds two XSonic transducer ports, supporting conventional 50/200 kHz, HDI, TotalScan and ForwardScan sonar from one unit. Built-in GNSS, Wi-Fi, Bluetooth, Ethernet and NMEA 2000 make it easy to run the display on its own or link it across a multi-station network with engine, fuel and digital-switching data on screen.
The NSS12 evo3S anchors a full Simrad system, supporting HALO dome and open-array radar, S5100 and StructureScan 3D sonar modules, and fully integrated autopilot control. Wireless mirroring through the Simrad app extends charts, radar and sonar to mobile devices anywhere aboard.
PRODUCT DETAILS
- SolarMAX HD IPS optically bonded display with 1200 nits brightness and ultra-wide 80-degree viewing angles
- Fast iMX 8 processor for smooth screen transitions and rapid redraw
- Hybrid control: all-weather multi-touch screen plus rotary dial and keypad
- Built-in 10 Hz GNSS receiver (GPS and GLONASS, SBAS) for accurate positioning
- Built-in 1 kW CHIRP echosounder with two 9-pin XSonic sonar ports
- Built-in Wi-Fi and Bluetooth, plus dual Ethernet, NMEA 2000 and HDMI video output
- Supports HALO dome and open array radar, autopilot, AIS and digital switching
- C-MAP and Navionics cartography support with preloaded world base map
- NSS12 evo3S display unit
- Sun cover
- Bezel trim
- Power cable
- U-bracket and bracket knobs
- Mounting hardware and self-adhesive foam gasket
- Connector dust caps
- Documentation pack
No exploded diagram available for this product.
Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount
Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 12 inch |
| Resolution | 1280 x 800 px |
| Display type | High Visibility SolarMAX HD IPS optically bonded TFT |
| Brightness | 1200 nits |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right (typical at contrast ratio 10) |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 30 W (plus/minus 5 W) |
| Fuse rating | 5 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
| Humidity | IEC 60945 damp heat 66 C at 95% relative (48 hr) |
Connectivity
| GNSS receiver | Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS; SBAS (WAAS, EGNOS, MSAS, GAGAN) |
| Ethernet | 2 ports (5-pin) |
| NMEA 2000 | 1 port (Micro-C), 1 LEN |
| NMEA 0183 | 1 talker/listener via optional adaptor cable |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | Internal Bluetooth 4.0 (Classic) |
| HDMI output | 1 port (HDMI 1.4 sink with HDCP) |
| Video input | 2 ports composite video (RCA) via optional adaptor cable |
| Data card slots | 2 slots (microSD) |
Sonar
| Echosounder | Built-in 1 kW CHIRP, two 9-pin XSonic sonar ports (50/200 kHz, HDI, TotalScan, ForwardScan) |
Physical
| Dimensions (W x H x D) | 352 x 225 x 98 mm (display, including connector boss) |
| Weight (display only) | 3.1 kg |
| Compass safe distance | 50 cm |
| Mounting type | Supplied bracket or panel mount |
Approvals
| Warranty | 2 years |
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
