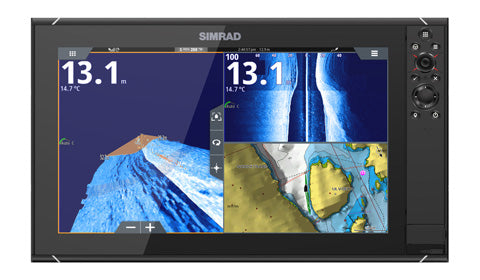

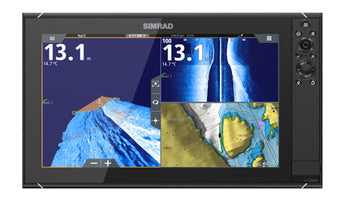

Simrad NSS16 EVO3S 16 Inch MFD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The NSS16 evo3S is the flagship 16-inch model in Simrad's premium hybrid-touch range, with a Full HD SolarMAX HD IPS display that delivers crisp charts, sonar and radar even in bright sunlight and through polarised sunglasses. The iMX 8 processor keeps the interface fast, and the touchscreen works alongside an optional keypad and rotary dial for precise control offshore.
A built-in 1 kW CHIRP echosounder and two XSonic transducer ports support conventional 50/200 kHz, HDI, TotalScan and ForwardScan sonar. Built-in GNSS, Wi-Fi, Bluetooth, Ethernet and NMEA 2000 let the large display drive a complete glass-bridge installation, showing engine, fuel and digital-switching data alongside navigation.
Expand the system with HALO dome and open-array radar, S5100 and StructureScan 3D sonar modules, and a fully integrated Simrad autopilot. The display can be mirrored wirelessly to a phone or tablet via the Simrad app for access to charts, sonar and vessel data from anywhere on board.
PRODUCT DETAILS
- Full HD 1920 x 1080 SolarMAX HD IPS display with 1200 nits brightness and ultra-wide 80-degree viewing angles
- Fast iMX 8 processor for smooth screen transitions and rapid redraw
- Hybrid control: all-weather multi-touch screen plus rotary dial and keypad
- Built-in 10 Hz GNSS receiver (GPS and GLONASS, SBAS) for accurate positioning
- Built-in 1 kW CHIRP echosounder with two 9-pin XSonic sonar ports
- Built-in Wi-Fi and Bluetooth, dual Ethernet, NMEA 2000, HDMI output and USB
- Supports HALO dome and open array radar, autopilot, AIS and digital switching
- C-MAP and Navionics cartography support with preloaded world base map
- NSS16 evo3S display unit
- Sun cover
- Bezel trim
- Power cable
- Mounting hardware and self-adhesive foam gasket
- Connector dust caps
- Documentation pack
No exploded diagram available for this product.
Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount
Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 16 inch |
| Resolution | 1920 x 1080 px (Full HD) |
| Display type | High Visibility SolarMAX HD IPS optically bonded TFT |
| Brightness | 1200 nits |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right (typical at contrast ratio 10) |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 45 W (plus/minus 5 W) |
| Fuse rating | 5 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
| Humidity | IEC 60945 damp heat 66 C at 95% relative (48 hr) |
Connectivity
| GNSS receiver | Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS; SBAS (WAAS, EGNOS, MSAS, GAGAN) |
| Ethernet | 2 ports (5-pin) |
| NMEA 2000 | 1 port (Micro-C), 1 LEN |
| NMEA 0183 | 1 talker/listener via optional adaptor cable |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | Internal Bluetooth 4.0 (Classic) |
| HDMI output | 1 port (HDMI 1.4 sink with HDCP) |
| USB | 1 port (USB-A, output 5 V DC 1.5 A) |
| Video input | 2 ports composite video (RCA) via optional adaptor cable |
| Data card slots | 2 slots (microSD) |
Sonar
| Echosounder | Built-in 1 kW CHIRP, two 9-pin XSonic sonar ports (50/200 kHz, HDI, TotalScan, ForwardScan) |
Physical
| Dimensions (W x H x D) | 437 x 256 x 98 mm (display, including connector boss) |
| Weight (display only) | 4.65 kg |
| Compass safe distance | 50 cm |
| Mounting type | Panel mount or optional bracket (P/N 000-13760-001) |
Approvals
| Warranty | 2 years |
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
