Description

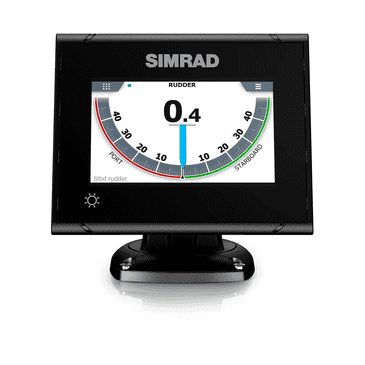

The Simrad I3000 Instrument Series 5-inch display (model I3005) gives commercial and large leisure vessels a single configurable touch-screen instrument for navigation and machinery data. A choice of graphic layouts lets you enable up to eight functions simultaneously, switching easily between analog-style gauges and digital data pages.
The I3005 is IMO type approved for use as a Rudder Angle Indicator, Heading Repeater, Propeller Pitch Indicator and Propeller Revolution Indicator, and can also monitor engine RPM, wind, depth, speed and a wide range of vessel, environmental and navigation data. It reads from Simrad rudder feedbacks, GPS and gyro compasses, magnetic compasses such as Precision-9 and RC42, and Simrad and B&G wind sensors, as well as third-party NMEA sources. The rate of turn page is type approved on the larger 7-inch I3007 only.
Built for flexible installation, the I3005 supports a wide variety of I/O signal types including two IEC 61162-2 (NMEA 0183) ports, a NMEA 2000 connection, Ethernet with Lightweight Ethernet (IEC 61162-450) and a configurable analog input. Approved for SOLAS vessels and built to IEC 60945, it suits bridges of all sizes.
PRODUCT DETAILS
- 5-inch full multi-touch colour display
- Enable up to eight instrument functions simultaneously
- IMO type approved as rudder, heading, propeller pitch and propeller RPM indicator
- Reads analog, NMEA 0183, NMEA 2000 and Ethernet (LWE) sources
- Compatible with Simrad and B&G wind sensors, GPS, gyro and magnetic compasses
- Approved for SOLAS vessels, built to IEC 60945
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Touch screen | Full touch screen (multi-touch) |
Electrical
| Supply voltage | 12/24 V DC (9.0 - 31.2 V DC min-max) |
| Recommended fuse rating | 3 A (12 V / 24 V) |
Connectivity
| Ethernet | 1x RJ45 100Base-TX, 8P8C connector, IPv4 |
| NMEA 2000 | 1x (Micro-C, 1 LEN) |
| IEC 61162-2 (NMEA 0183) ports | 2x |
| Analog input | 1x (voltage, OR frequency, OR current) |
| Data card reader | 1x slot (microSD) |
Environment
| Operating temperature | -15 C to +55 C (5 F to 131 F) |
| Storage temperature | -20 C to +60 C (4 F to 140 F) |
| Waterproof rating | IPX2 |
| Shock, vibration and humidity | According to IEC 60945 |
General
| Display size | 5 inch |
| Approvals | IMO type approved, SOLAS |
