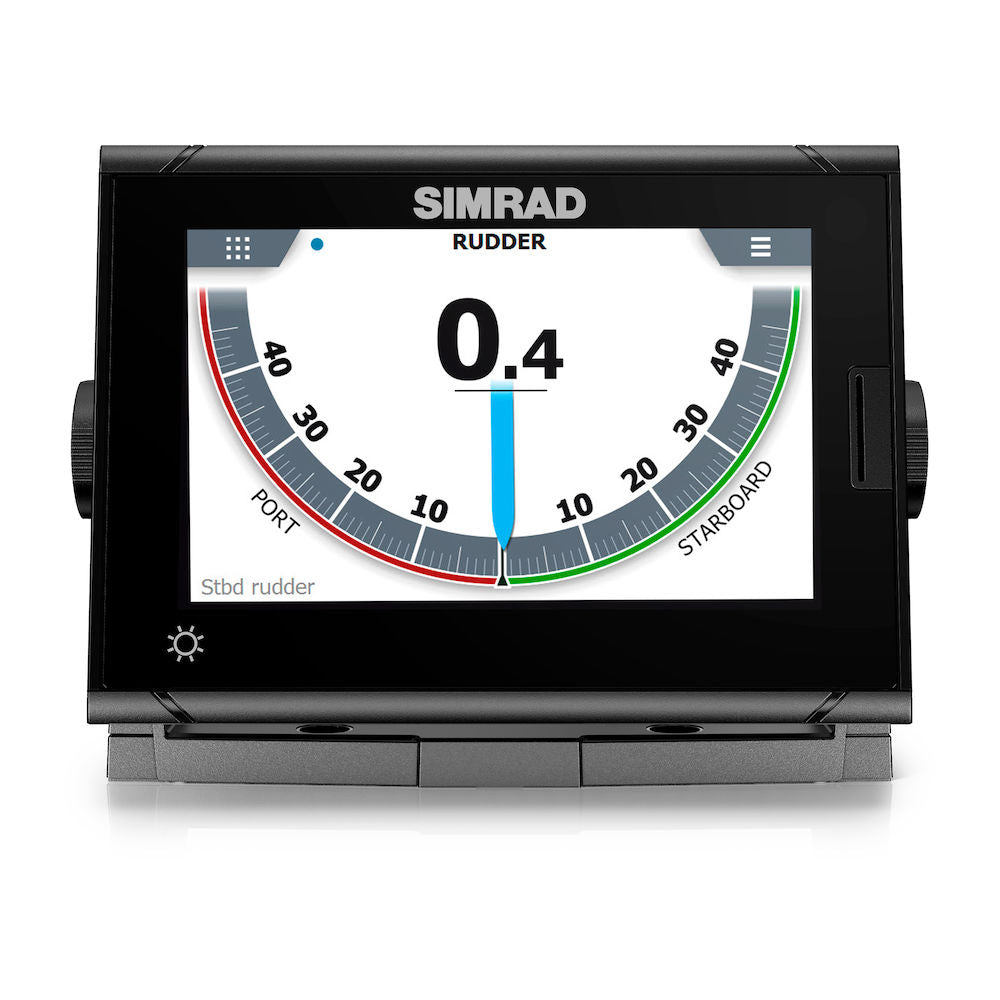

Simrad I3007 INSTRUMENT
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad I3007 is a 7-inch full-touch colour instrument from the I3000 series, giving commercial and large leisure vessels a single configurable display for a wide range of navigation and machinery data. A choice of graphic layouts lets you enable up to eight functions simultaneously, switching easily between analog-style gauges and digital data pages.
The I3007 is IMO type approved for use as a Rudder Angle Indicator, Heading Repeater, Rate of Turn Indicator, Propeller Pitch Indicator and Propeller Revolution Indicator, and can also monitor engine RPM, wind, depth, speed and a wide range of vessel, environmental and navigation data. It reads from Simrad rudder feedbacks, GPS and gyro compasses, magnetic compasses such as Precision-9 and RC42, and Simrad and B&G wind sensors, as well as third-party NMEA sources.
Designed for flexible installation, the I3007 supports a wide variety of I/O signal types. Connectivity includes two IEC 61162-2 (NMEA 0183) ports, a NMEA 2000 connection, Ethernet with Lightweight Ethernet (IEC 61162-450), a configurable analog input and a speed log input. Approved for SOLAS vessels and rated to IEC 60945, it suits bridges of all sizes.
PRODUCT DETAILS
- 7-inch full multi-touch colour display, >1200 nits brightness
- Enable up to eight instrument functions simultaneously
- IMO type approved as rudder, heading, rate of turn, propeller pitch and propeller RPM indicator
- Reads analog, NMEA 0183, NMEA 2000 and Ethernet (LWE) sources
- Compatible with Simrad and B&G wind sensors, GPS, gyro and magnetic compasses
- Approved for SOLAS vessels, built to IEC 60945
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Resolution | 800 x 480 |
| Brightness | >1200 nits |
| Touch screen | Full touch screen (multi-touch) |
| Viewing angles | Left/right 70 degrees, top 50 degrees, bottom 60 degrees |
| Nominal viewing distance | 0.85 m (2.79 ft) |
Electrical
| Supply voltage | 12/24 V DC (9.0 - 31.2 V DC min-max) |
| Power consumption | 680 mA / 330 mA at 12 V DC (backlight full/off) |
| Power consumption (24 V) | 380 mA / 200 mA at 24 V DC (backlight full/off) |
| Recommended fuse rating | 3 A (12 V / 24 V) |
Connectivity
| Ethernet | 1x RJ45 100Base-TX, 8P8C connector, IPv4 |
| Lightweight Ethernet protocol | IEEE 802.3 |
| NMEA 2000 | 1x (Micro-C, 1 LEN) |
| IEC 61162-2 (NMEA 0183) ports | 2x |
| Data card reader | 1x slot (microSD) |
| Digital input | 1x |
| Analog input | 1x (voltage, OR frequency, OR current) |
| Power output | 1x (+16 V DC, 70 mA) |
Environment
| Operating temperature | -15 C to +55 C (5 F to 131 F) |
| Storage temperature | -20 C to +60 C (4 F to 140 F) |
| Waterproof rating | IPX2 |
| Shock, vibration and humidity | According to IEC 60945 |
Physical
| Compass safe distance | 0.9 m (2.95 ft) |
| Weight (display only) | 1.32 kg (2.91 lbs) |
| Height | 220.0 mm (8.66 in) |
| Width | 174.0 mm (6.85 in) |
| Depth | 61.9 mm (2.44 in) |
