Raymarine Alpha 9 Performance Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

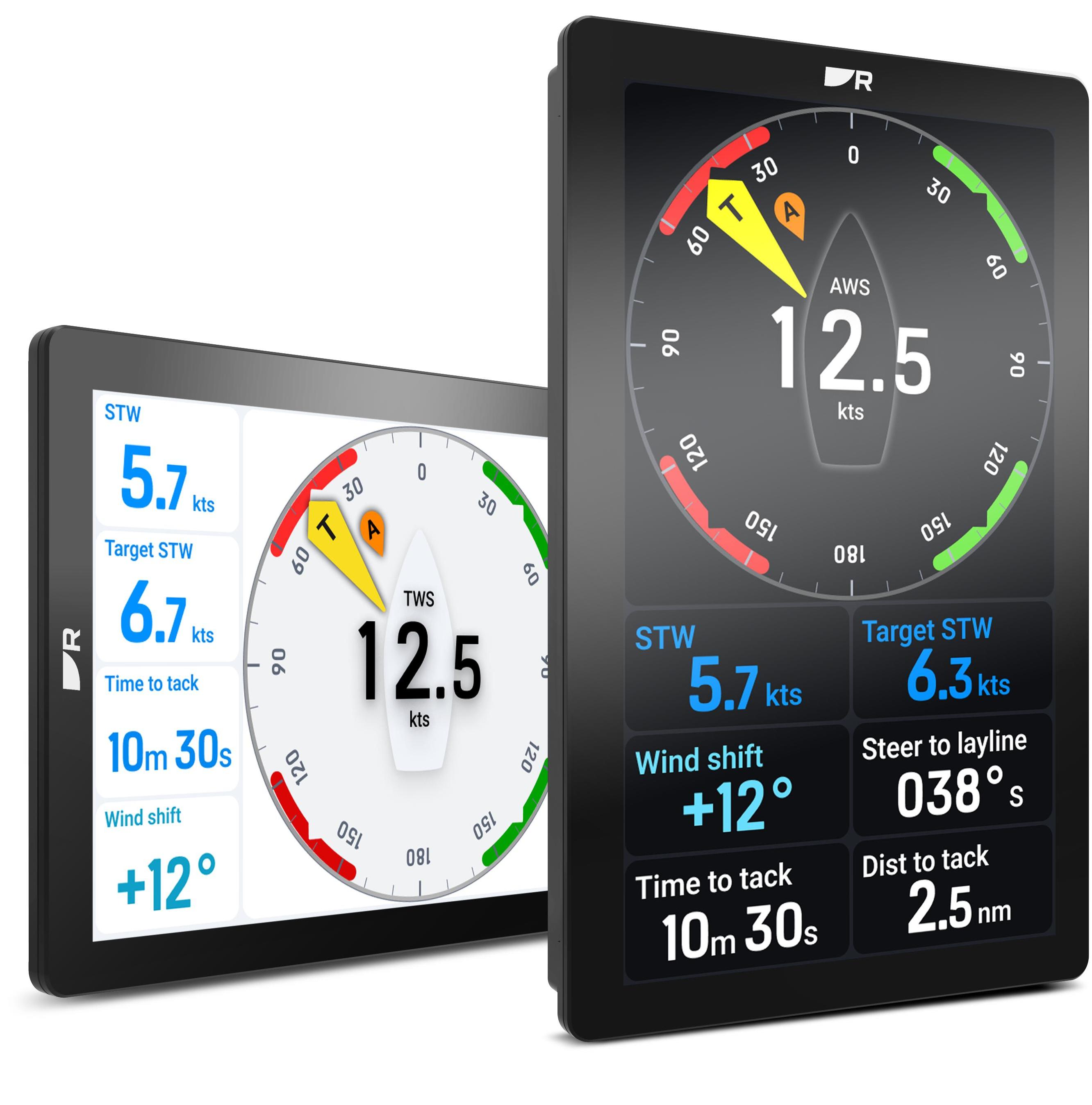

With its 9 inch, 1280 x 720 IPS panel, the Raymarine Alpha 9 Performance Display (E70650) puts big, bold sailing data where the whole crew can read it. The screen reaches 1500 nits, keeps its contrast through polarised sunglasses and wide viewing angles, and its HydroTough nano-coated glass resists impacts while repelling water and smudges.
Fit it flush or surface mounted at the helm, drop it into the cutout left by an ST60, i50, i60 or i70 series instrument, or take it up the mast with the optional single and dual brackets in portrait or landscape. One waterproof cable, available separately in lengths from 1 m to 10 m, supplies both power and RayNet data, and four displays can run from a single daisy chained feed with up to ten on one network.
An Axiom or Axiom 2 Series chartplotter running LightHouse 4 v4.7.172 or later is required: it feeds the Alpha its wind, speed, depth, navigation and engine data, and from Alpha 3.0 the display doubles as a full Evolution autopilot controller.
PRODUCT DETAILS
- 9 inch polarised sunglasses friendly IPS touchscreen with high brightness, high contrast and wide viewing angles
- 1500 nits peak brightness with an ambient light sensor for automatic adjustment
- HydroTough nano-coated, impact resistant glass repels water, oil and smudges
- Flush, surface, retrofit or mast mounting in portrait or landscape orientation
- Retrofit option fits the mounting hole of an existing ST60, ST60+, i50, i60, i70 or i70s instrument
- Single waterproof cable carries both power and RayNet data (sold separately)
- Daisy chain up to 4 Alpha displays from one power feed, up to 10 per network
- Fully customisable pages and widgets for wind, speed, depth, navigation, engine and pilot data
- Evolution autopilot control from the display via a LightHouse 4 MFD (v4.7.172 or later)
- Requires a Raymarine Axiom or Axiom 2 Series chartplotter (not a standalone instrument)
- Alpha Series performance display
- Suncover
- Waterproof gasket
- Documentation pack
- 4x Threaded studs (M4 x 40 mm)
- 4x Thumb nuts
- 2x Mounting brackets
No exploded diagram available for this product.
No compatible transducers listed for this product.
