This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

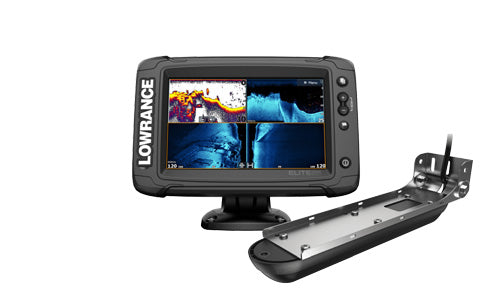

Lowrance Elite-7 Ti2 with 3-in-1 Transducer
Description
The Lowrance Elite-7 Ti2 is a discontinued 7-inch touchscreen fishfinder and chartplotter, here supplied with the Active Imaging 3-in-1 transducer for CHIRP, SideScan and DownScan. It combined a high-resolution SolarMAX display with FishReveal, an internal high-speed GPS antenna and built-in C-MAP cartography.
Wireless networking, Wi-Fi and Bluetooth supported real-time Genesis Live mapping, software updates and smartphone notifications.
The Elite-7 Ti2 has been replaced in the current Lowrance range by the Elite FS 7.
PRODUCT DETAILS
- 7-inch high-resolution SolarMAX touchscreen display
- Supplied with Active Imaging 3-in-1 transducer (CHIRP, SideScan, DownScan)
- FishReveal target separation
- Internal high-speed GPS antenna with built-in C-MAP charts
- Real-time Genesis Live mapping
- Wi-Fi, Bluetooth and wireless networking with smartphone notifications
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Display
| Screen size | 7 in |
| Resolution | 800 x 480 |
| Type | SolarMAX colour touchscreen, LED backlit |
Sonar
| Sonar support | CHIRP (Low/Med/High), Active Imaging (SideScan and DownScan) with FishReveal |
| CHIRP frequencies | 83/200 kHz, 455/800 kHz |
GPS
| Internal GPS | Built-in 10 Hz GPS antenna |
Charts
| Cartography | C-MAP with Genesis Live real-time mapping |
Connectivity
| Wireless | Built-in Wi-Fi and Bluetooth with smartphone notifications |
| Networking | NMEA 2000 and NMEA 0183 |
| Card reader | microSD slot |
Electrical
| Supply voltage | 10 - 17 V DC |
