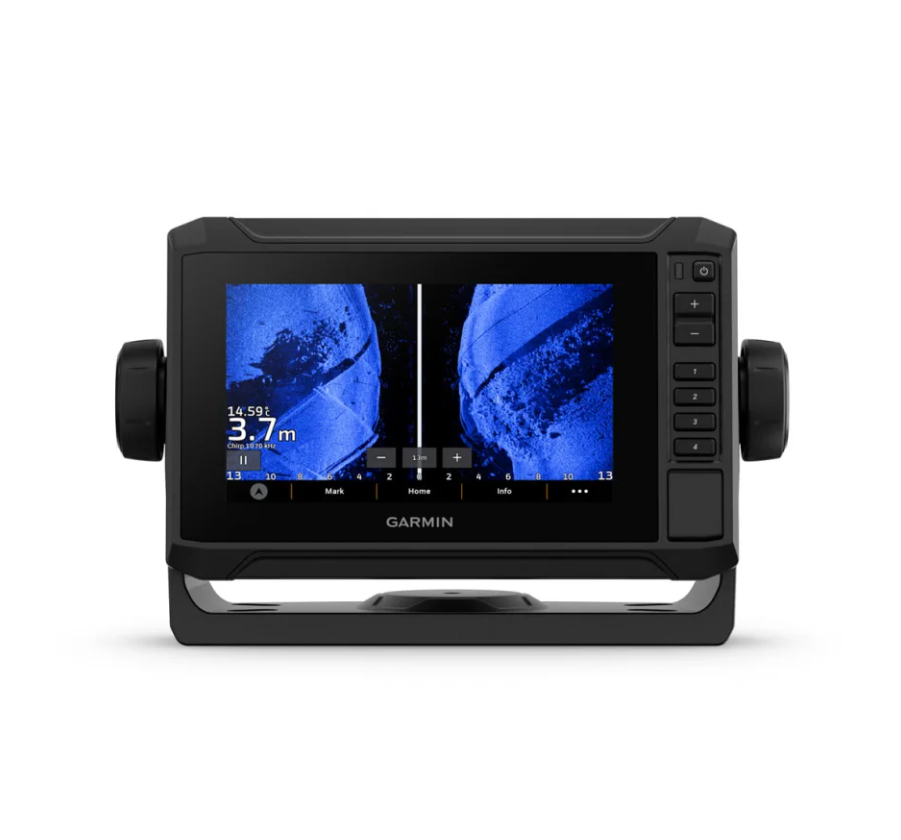

ECHOMAP™ UHD2 62sv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 62sv combines a 6-inch touchscreen, complete with keyed assist for fast, confident control, with Garmin's best-in-class sonar. Support for traditional CHIRP, Garmin ClearVu and Garmin SideVu reveals near-photographic detail of structure, cover and fish both beneath and to the sides of the boat, while the high-sensitivity GPS keeps you precisely positioned. Quickdraw Contours lets you create personal HD fishing maps as you go, and the unit is compatible with Garmin Navionics+ and Navionics Vision+ premium charts. Built-in Wi-Fi connects the chartplotter to the ActiveCaptain app for charts, smart notifications and software updates, while NMEA 2000 connectivity supports integration with sensors and engine data. The IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 6-inch touchscreen chartplotter with keyed assist and bright, sunlight-readable WVGA display
- Best-in-class Garmin sonar support: traditional CHIRP, ClearVu and SideVu (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity for sensors and engine data; IPX7 waterproof rating
- Supplied without a transducer so you can choose the model that suits your boat
- ECHOMAP UHD2 62sv chartplotter
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible products found.
Display
| Display size | 157 mm (6 in.) diagonal; 138 x 78 mm viewable |
| Display resolution | WVGA, 800 x 480 pixels |
| Control type | Touchscreen with keyed assist |
Physical
| Dimensions (W x H x D), device and cradle only | 206 x 131 x 67 mm |
| Weight | 0.8 kg (1.8 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, fast-acting (included) |
| Max. power draw | 18.3 W |
| Typical current draw at 12 Vdc (RMS) | 1.53 A |
| Max. current draw at 12 Vdc (peak) | 3.2 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP + Garmin SideVu CHIRP (sv) |
| Sonar frequencies | Traditional L, M, H CHIRP: 50/77/83/200 kHz; ClearVu CHIRP: 260/455/800/1000/1200 kHz; SideVu CHIRP: 260/455/800/1000/1200 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP, ClearVu and SideVu) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; 32 GB max. card size |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -20 to 55 C |
| Compass-safe distance | 28 cm (11 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+ |
