Garmin GT56UHD-THP
£1,189.99
/
Tax included.
Shipping calculated at checkout.
010-02732-11
The Garmin GT56UHD-THP is a matched pair of 12-pin stainless steel thru-hull transducers offering three frequencies: High-Wide CHIRP traditional sonar plus Ultra High-Definition ClearVu and SideVu. Joined by a Y-cable, the pair suits hulls of up to 25 degrees deadrise.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

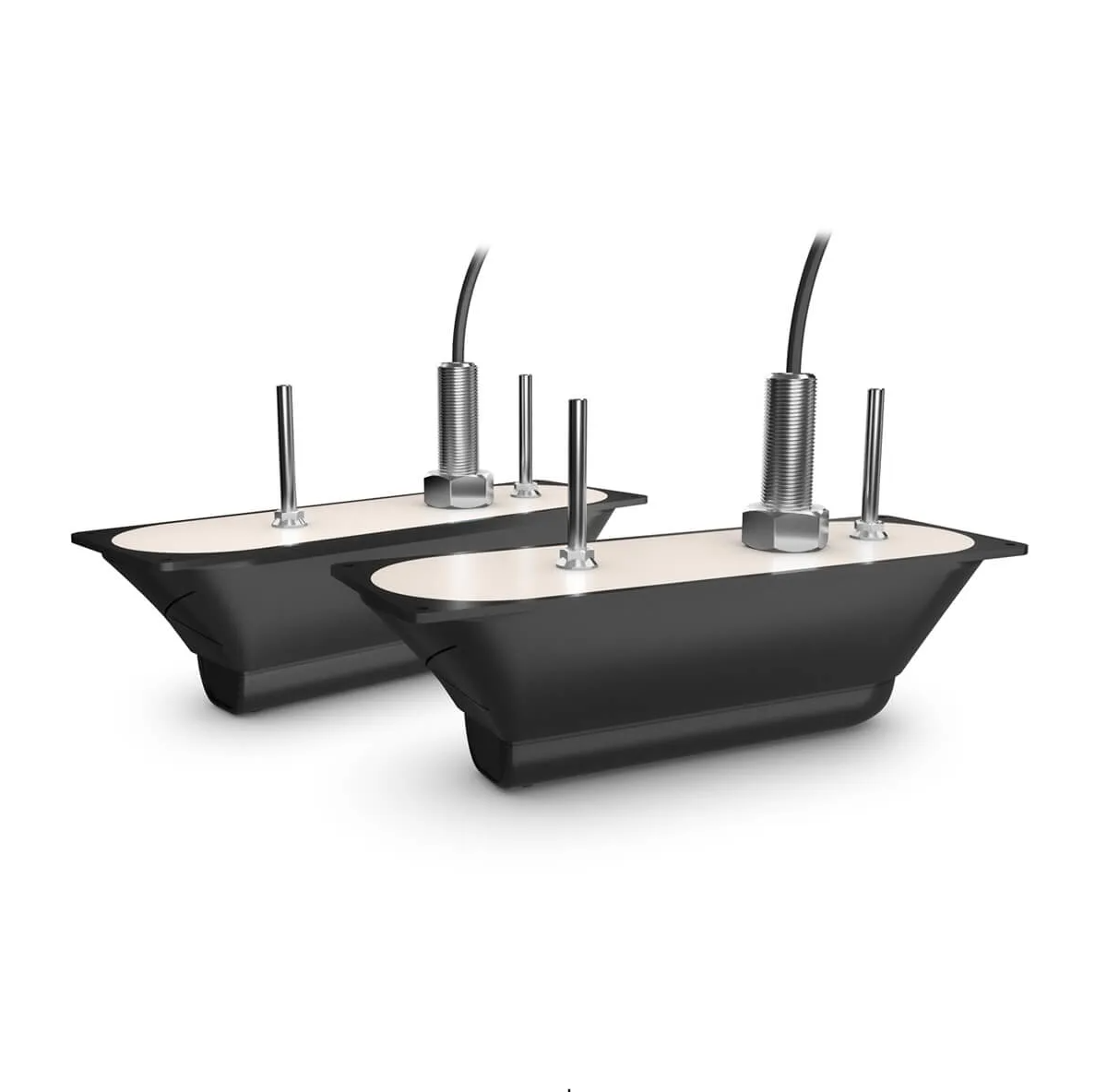

The Garmin GT56UHD-THP is a matched port-and-starboard pair of 12-pin thru-hull transducers offering the ultimate scanning versatility from three frequencies. The High-Wide traditional CHIRP element (150 to 240 kHz, 350 W) reads to 800 ft, while the 500 W ClearVu and SideVu elements run 455, 800 and Ultra High-Definition 1,000 kHz for resolution and range, giving high-resolution images below the boat (ClearVu to 400 ft) and to the sides (SideVu to 500 ft). Splitting SideVu across two hull-mounted transducers keeps clear side coverage on hulls of up to 25 degrees deadrise. Two fairing blocks, isolation plates and bushings are included, with at least one anti-rotation bolt required per transducer, plus a built-in fast-response water temperature sensor. The two transducers join via the included Y-cable to a Garmin sonar black box (GCV 20 or GSD 25) and compatible 12-pin chartplotters; the Ultra High-Definition modes require a UHD-capable display path.
PRODUCT DETAILS
- Matched pair of three-frequency thru-hull transducers: High-Wide CHIRP plus UHD ClearVu and SideVu
- High-Wide traditional CHIRP at 350 W to 800 ft; scanning sonar at 500 W
- ClearVu and SideVu run 455, 800 and Ultra High-Definition 1,000 kHz for resolution and range
- Two fairing blocks support hulls of up to 25 degrees deadrise
- Joined by a Y-cable to a Garmin sonar black box; built-in temperature sensor
- 12-pin connection to compatible Garmin chartplotters and the GCV 20 or GSD 25 black box
- Two GT56UHD thru-hull transducers with stainless steel stems
- Two fairing blocks
- Y-cable
- Isolation plates and bushings
- Mounting hardware (including anti-rotation bolts)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
ECHOMAP™ UHD2 62sv without Transducer
ECHOMAP™ UHD2 72sv without Transducer
ECHOMAP™ UHD2 92sv without Transducer
Garmin ECHOMAP™ UHD2 6" Chartplotters, 65sv without Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters, 75sv without Transducer
Garmin ECHOMAP™ UHD2 9" Chartplotters, 95sv without Transducer
ECHOMAP™ Ultra 2 10 Chartplotters, 102sv without Transducer
ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Garmin ECHOMAP™ Ultra 2 16" chartplotter 162sv without transducer
Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP® 1623xsv
GPSMAP® 9017xsv
GPSMAP® 8616 - 010-02093-01
Garmin GPSMAP 8617
Sonar
| Sonar types | Traditional High-Wide CHIRP plus Garmin ClearVu and Garmin SideVu scanning sonar (including Ultra High-Definition); three frequencies in one transducer |
| Traditional frequency | CHIRP High-Wide 150 to 240 kHz |
| ClearVu / SideVu frequency | 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) and UHD 1,000 kHz (940-1100 kHz) |
| Traditional power | 350 W |
| ClearVu / SideVu power | 500 W |
| Maximum depth | Traditional CHIRP 800 ft; ClearVu 400 ft; SideVu 500 ft |
Beam
| Traditional beamwidth | 24 to 16 degrees |
| ClearVu / SideVu beamwidth | 0.52 x 52 degrees at 1,000 kHz; 0.64 x 35 degrees at 800 kHz; 1.1 x 52 degrees at 455 kHz |
Mounting
| Mount type | Thru-hull pair (port and starboard) with cuttable fairing blocks; supported deadrise 0 to 25 degrees |
| Fairing block | Fairing block included; maximum cut angle 25 degrees; a fairing block should be used where deadrise exceeds 5 degrees |
| Installation | Must be installed with one or more included anti-rotation bolts; metal hulls use the included isolation plate and bushings |
| Anti-fouling | Apply water-based anti-fouling paint every six months; never use ketone-based paint |
Physical
| Housing material | Stainless steel stem |
| Temperature sensor | Built-in fast-response water temperature sensor |
Connectivity
| Connector | 12-pin |
| Cable length | 7.6 m (25 ft) |
Compatibility
| Compatible devices | Connects via a 12-pin sonar port to compatible Garmin chartplotters and sonar black boxes including the STRIKER, ECHOMAP UHD2 and ECHOMAP Ultra 2 series, GPSMAP 8600xsv and 9000xsv series, GPSMAP 7x3/9x3/12x3/16x3 xsv series, and the GCV 20 and GSD 25 sonar black boxes. Ultra High-Definition ClearVu and SideVu require a UHD-capable display path (a 12-pin UHD chartplotter or the GCV 20). Some combinations require an adapter cable. |
General
| In the box | Two GT56UHD thru-hull transducers with stainless steel stems, two fairing blocks, Y-cable, isolation plates and bushings, mounting hardware and documentation |
No videos available for this product.
Why is the GT56UHD-THP supplied as a pair?
Splitting SideVu across two hull-mounted transducers, one angled to each side, lets the GT56UHD-THP keep clear side coverage on hulls of up to 25 degrees deadrise. The two transducers join to a sonar black box via the included Y-cable.
What sonar does the GT56UHD-THP provide?
Three frequencies: High-Wide CHIRP traditional sonar (150 to 240 kHz, 350 W, to 800 ft) plus Garmin ClearVu and SideVu scanning sonar at 455, 800 and Ultra High-Definition 1,000 kHz (500 W; ClearVu to 400 ft, SideVu to 500 ft).
What do I need to display its sonar?
It uses 12-pin connectors joined by a Y-cable to a Garmin sonar black box (GCV 20 or GSD 25) and compatible 12-pin chartplotters. The Ultra High-Definition modes require a UHD-capable display path; some combinations require an adapter cable.
Does it read water temperature?
Yes, it has a built-in fast-response water temperature sensor.
