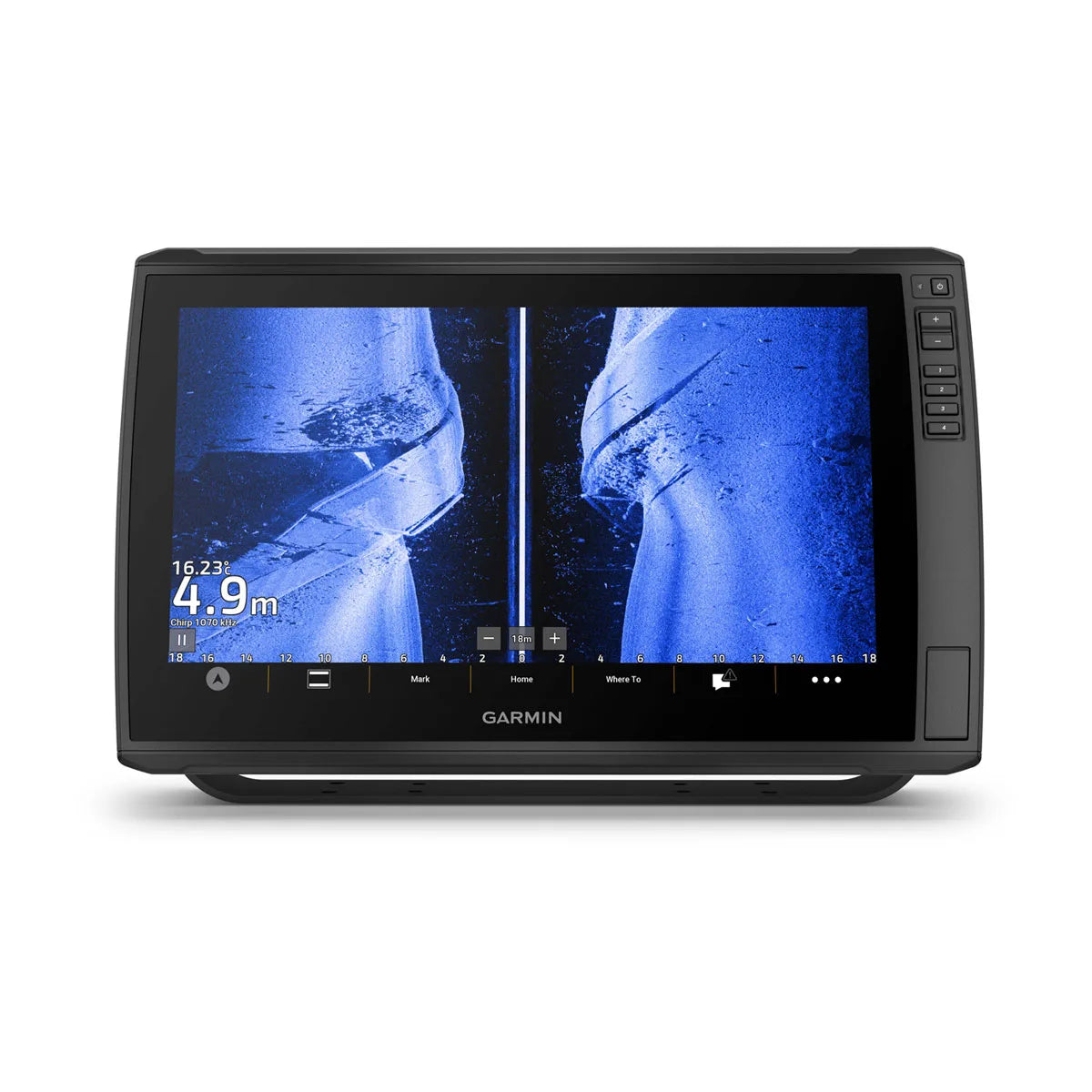

Garmin ECHOMAP™ Ultra 2 16" chartplotter 162sv without transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP Ultra 2 162sv is the flagship of the range, built for the serious angler who wants maximum on-screen clarity. Its large 16-inch (15.6 in.) touchscreen with keyed assist uses a bright Full HD 1920 x 1080 IPS panel that delivers exceptional brightness and readability for navigation mapping and sonar returns. It supports Garmin's best-in-class sonar, including traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS, and is ready for the full Garmin LiveScope live scanning sonar range through its network port. HDMI video output lets you mirror the display onto a second monitor, while twin microSD slots accept cards up to 1 TB for premium charts and Quickdraw Contours mapping. Built-in high-sensitivity GPS, Wi-Fi, ActiveCaptain connectivity and NMEA 2000 integration complete the package. The IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 16-inch (15.6 in.) touchscreen chartplotter with keyed assist and Full HD 1920 x 1080 IPS display
- Best-in-class Garmin sonar: traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS
- HDMI video output duplicates the chartplotter screen onto a TV or monitor
- Compatible with the full Garmin LiveScope live scanning sonar range via the Garmin network port
- Two microSD card slots up to 1 TB; built-in GPS, Wi-Fi and ActiveCaptain app connectivity
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity and IPX7 waterproof rating; supplied without a transducer
- ECHOMAP Ultra 2 162sv chartplotter
- Bail mount with knobs and trim caps
- Flush-mount kit, rubber gasket and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 396.3 mm (15.6 in.) diagonal; 345.2 x 194.6 mm viewable |
| Display resolution | FHD, 1920 x 1080 pixels (IPS) |
| Control type | Touchscreen with keyed assist |
Physical
| Dimensions (W x H x D), device only | 384.7 x 266.4 x 78 mm |
| Weight | 4.45 kg (9.8 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 8 A, 125 V fast-acting |
| Max. power usage at 10 Vdc | 45 W |
| RMS current draw at 12 Vdc | 3.6 A |
| Peak current draw at 12 Vdc | 6.5 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP + Garmin SideVu CHIRP (sv); compatible with Ultra High-Definition scanning and LiveScope |
| Sonar frequencies | Traditional L, M, H CHIRP: 50/77/83/200 kHz; ClearVu CHIRP: 260/455/800/1000/1200 kHz; SideVu CHIRP: 260/455/800/1000/1200 kHz |
| Sonar transmit power (RMS) | 600 W (CHIRP, ClearVu and SideVu) |
| Transducer connector | 12-pin XDCR port |
Connectivity
| Video output | HDMI out (duplicate the chartplotter screen to a TV or monitor) |
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes (LEN 2 @ 9 Vdc; 75 mA max. draw) |
| Garmin Marine Network | Garmin network port for compatible LiveScope, GCV and ECHOMAP devices |
| Memory card | 2 microSD card slots; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 85 cm (33.5 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+; Quickdraw Contours |
