Garmin GT56UHD-TH
£580.00
/
Tax included.
Shipping calculated at checkout.
010-02732-10

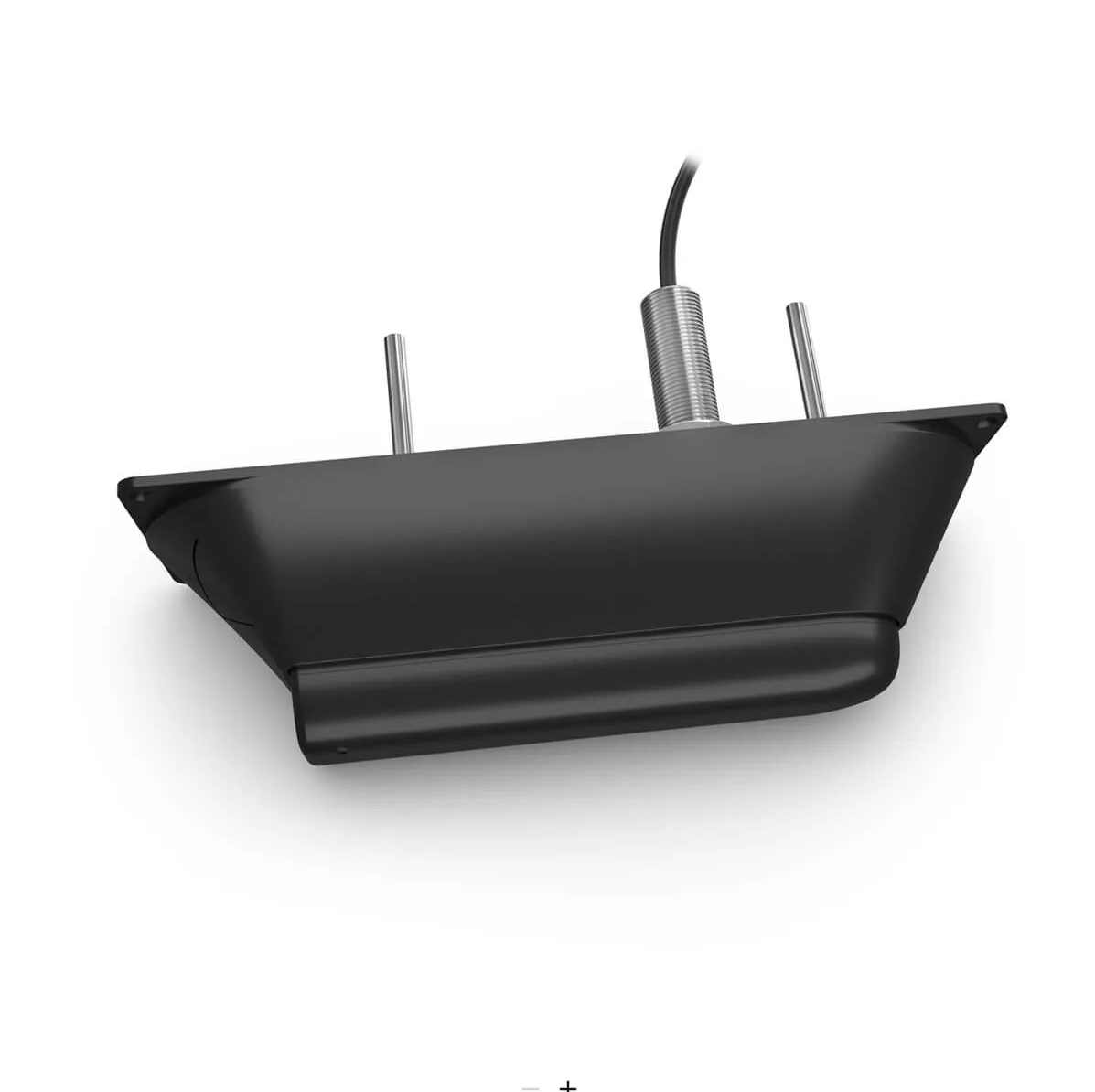

The Garmin GT56UHD-TH is a 12-pin stainless steel thru-hull transducer offering three frequencies: High-Wide CHIRP traditional sonar plus Ultra High-Definition ClearVu and SideVu scanning sonar. It includes a fairing block for hulls up to 25 degrees deadrise and a temperature sensor.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT56UHD-TH is an all-in-one 12-pin thru-hull transducer offering the ultimate scanning versatility from three frequencies. Its High-Wide traditional CHIRP element (150 to 240 kHz, 350 W) reads to 800 ft, while the 500 W ClearVu and SideVu elements run 455, 800 and Ultra High-Definition 1,000 kHz to balance resolution and range, giving high-resolution images of structure and fish below the boat (ClearVu to 400 ft) and to the sides (SideVu to 500 ft). A fairing block, isolation plate and bushings are included so it can be flush-mounted on hulls of up to 25 degrees deadrise and on metal hulls, with at least one anti-rotation bolt required, plus a built-in fast-response water temperature sensor. It connects via a 12-pin sonar port to compatible Garmin chartplotters and the GCV 20 or GSD 25 sonar black box; the Ultra High-Definition modes require a UHD-capable display path. For higher-deadrise hulls or twin-transducer SideVu, see the GT56UHD-THP pair.
PRODUCT DETAILS
- Three frequencies in one transducer: High-Wide CHIRP traditional plus UHD ClearVu and UHD SideVu
- High-Wide traditional CHIRP at 350 W to 800 ft; scanning sonar at 500 W
- ClearVu and SideVu run 455, 800 and Ultra High-Definition 1,000 kHz for resolution and range
- Stainless steel thru-hull with included fairing block for hull deadrise up to 25 degrees
- Built-in fast-response water temperature sensor
- 12-pin connection to compatible Garmin chartplotters and the GCV 20 or GSD 25 black box
- GT56UHD-TH thru-hull transducer with stainless steel stem
- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware (including anti-rotation bolts)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
ECHOMAP™ UHD2 62sv without Transducer
ECHOMAP™ UHD2 72sv without Transducer
ECHOMAP™ UHD2 92sv without Transducer
Garmin ECHOMAP™ UHD2 6" Chartplotters, 65sv without Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters, 75sv without Transducer
Garmin ECHOMAP™ UHD2 9" Chartplotters, 95sv without Transducer
ECHOMAP™ Ultra 2 10 Chartplotters, 102sv without Transducer
ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Garmin ECHOMAP™ Ultra 2 16" chartplotter 162sv without transducer
Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP® 1623xsv
GPSMAP® 9017xsv
GPSMAP® 8616 - 010-02093-01
Garmin GPSMAP 8617
Sonar
| Sonar types | Traditional High-Wide CHIRP plus Garmin ClearVu and Garmin SideVu scanning sonar (including Ultra High-Definition); three frequencies in one transducer |
| Traditional frequency | CHIRP High-Wide 150 to 240 kHz |
| ClearVu / SideVu frequency | 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) and UHD 1,000 kHz (940-1100 kHz) |
| Traditional power | 350 W |
| ClearVu / SideVu power | 500 W |
| Maximum depth | Traditional CHIRP 800 ft; ClearVu 400 ft; SideVu 500 ft |
Beam
| Traditional beamwidth | 24 to 16 degrees |
| ClearVu / SideVu beamwidth | 0.52 x 52 degrees at 1,000 kHz; 0.64 x 35 degrees at 800 kHz; 1.1 x 52 degrees at 455 kHz |
Mounting
| Mount type | Thru-hull (single) with cuttable fairing block; supported deadrise 0 to 25 degrees |
| Fairing block | Fairing block included; maximum cut angle 25 degrees; a fairing block should be used where deadrise exceeds 5 degrees |
| Installation | Must be installed with one or more included anti-rotation bolts; metal hulls use the included isolation plate and bushings |
| Anti-fouling | Apply water-based anti-fouling paint every six months; never use ketone-based paint |
Physical
| Housing material | Stainless steel stem |
| Temperature sensor | Built-in fast-response water temperature sensor |
Connectivity
| Connector | 12-pin |
| Cable length | 7.6 m (25 ft) |
Compatibility
| Compatible devices | Connects via a 12-pin sonar port to compatible Garmin chartplotters and sonar black boxes including the STRIKER, ECHOMAP UHD2 and ECHOMAP Ultra 2 series, GPSMAP 8600xsv and 9000xsv series, GPSMAP 7x3/9x3/12x3/16x3 xsv series, and the GCV 20 and GSD 25 sonar black boxes. Ultra High-Definition ClearVu and SideVu require a UHD-capable display path (a 12-pin UHD chartplotter or the GCV 20). Some combinations require an adapter cable. |
General
| In the box | GT56UHD-TH transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and documentation |
No videos available for this product.
What sonar does the GT56UHD-TH provide?
It offers three frequencies in one transducer: High-Wide CHIRP traditional sonar (150 to 240 kHz, 350 W, to 800 ft) plus Garmin ClearVu and SideVu scanning sonar at 455, 800 and Ultra High-Definition 1,000 kHz (500 W; ClearVu to 400 ft, SideVu to 500 ft).
How does the GT56UHD differ from the GT51M?
The GT51M uses a mid-band CHIRP traditional element with ClearVu and SideVu at 260 and 455 kHz. The GT56UHD adds a third, Ultra High-Definition 1,000 kHz scanning frequency and uses a High-Wide CHIRP traditional element, giving higher-resolution UHD imaging plus 455 and 800 kHz for range.
Does it come with a fairing block?
Yes. A fairing block, isolation plate and bushings are included, so it can be flush-mounted on hulls of up to 25 degrees deadrise and on metal hulls. The fairing block is shaped to the hull (maximum cut angle 25 degrees).
What do I need to display its sonar?
It uses a 12-pin connector and connects to compatible Garmin chartplotters and the GCV 20 or GSD 25 sonar black box. The Ultra High-Definition modes require a UHD-capable display path; some combinations require an adapter cable.
