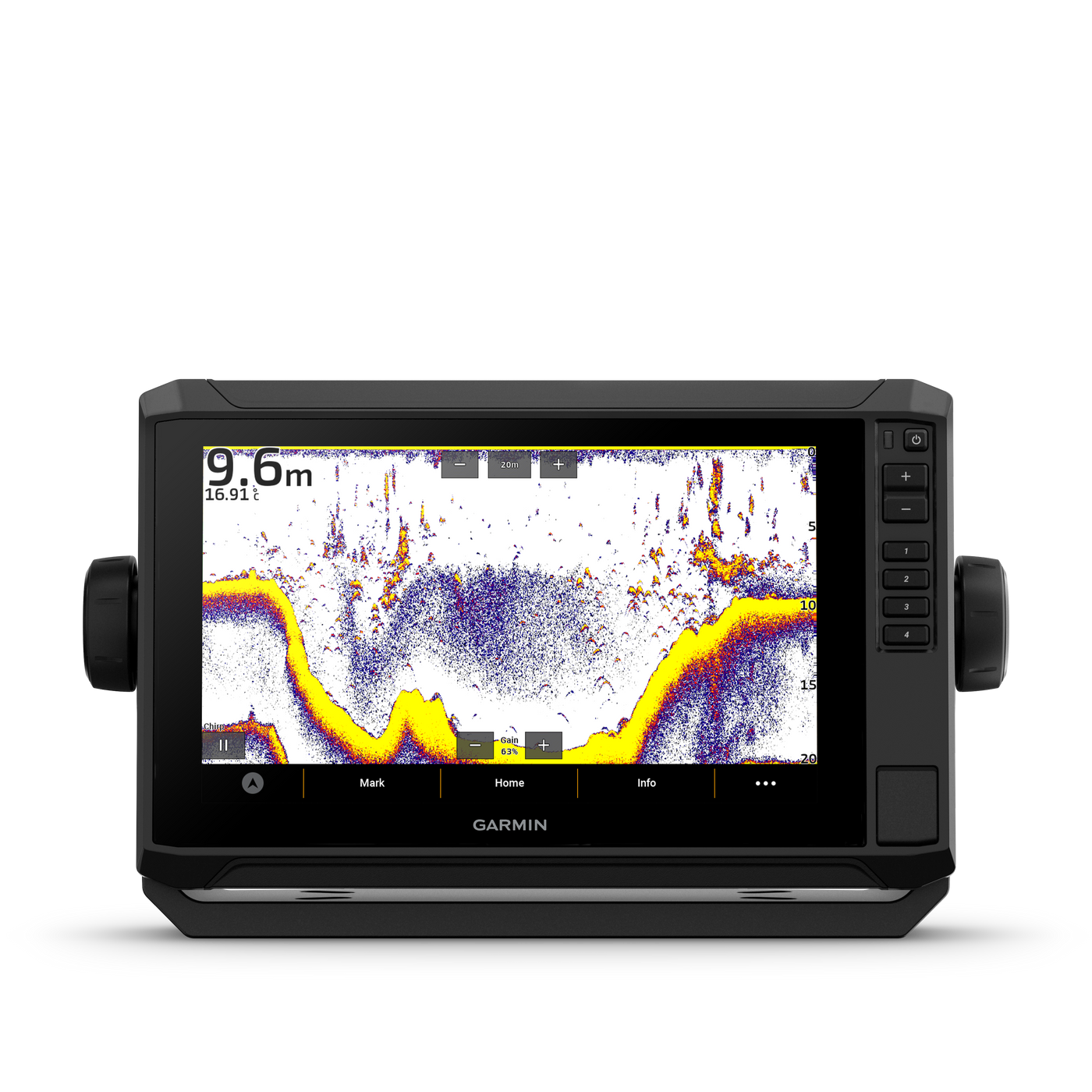

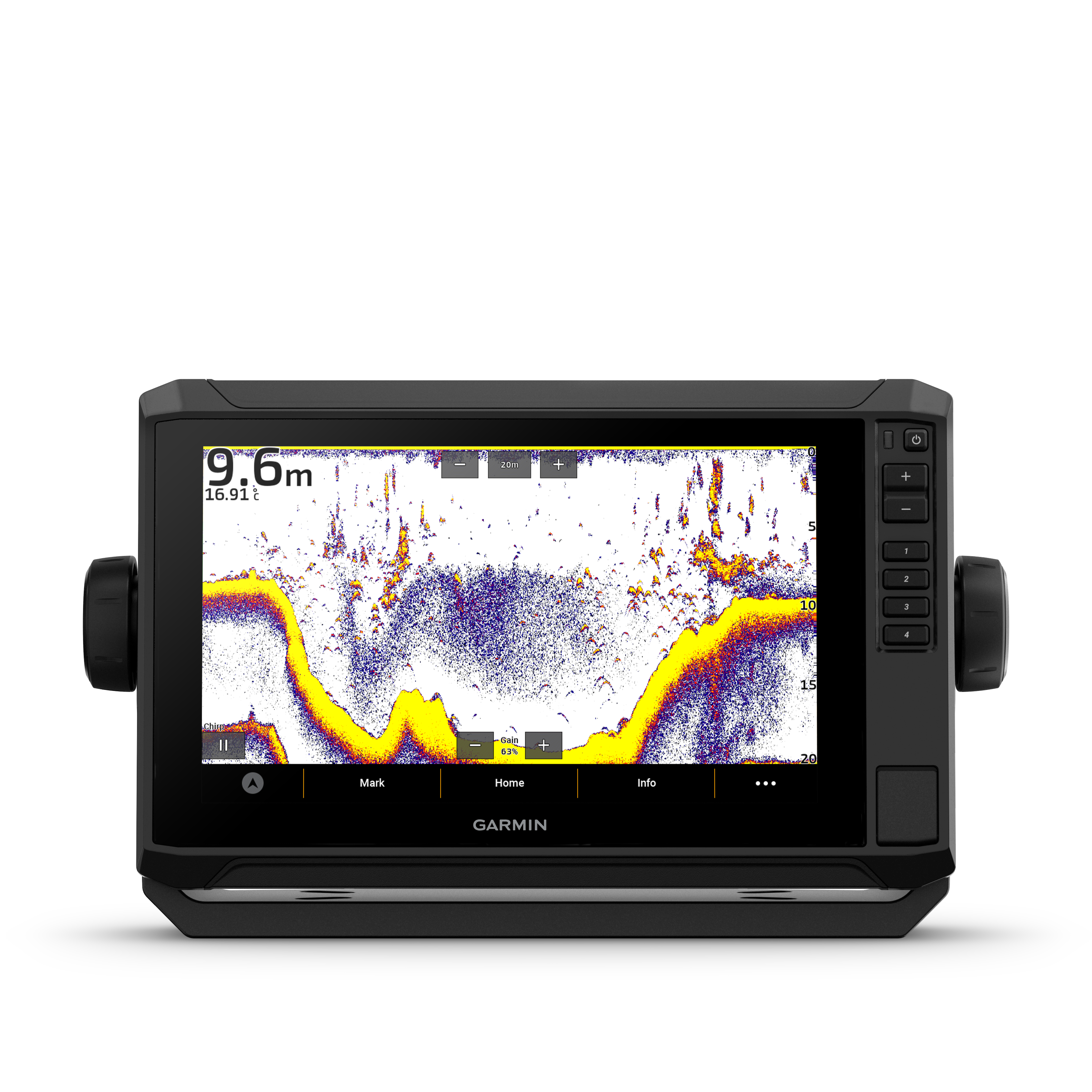

Garmin ECHOMAP™ UHD2 9" Chartplotters, 95sv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 95sv combines a large 9-inch touchscreen with keyed assist and a higher-resolution WSVGA display, with Garmin Navionics+ charts for the United Kingdom and Ireland preloaded so you can navigate local waters from the moment you switch on. Support for traditional CHIRP, Garmin ClearVu and Garmin SideVu sonar reveals near-photographic detail of structure, cover and fish both beneath and to the sides of the boat, while the high-sensitivity GPS keeps you precisely positioned. Quickdraw Contours lets you create personal HD fishing maps as you go, and built-in Wi-Fi connects the unit to the ActiveCaptain app for charts, smart notifications and software updates. NMEA 2000 connectivity supports integration with sensors and engine data, and the IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 9-inch touchscreen chartplotter with keyed assist and bright WSVGA (1024 x 600) display
- Preloaded Garmin Navionics+ charts for the United Kingdom and Ireland
- Best-in-class Garmin sonar support: traditional CHIRP, ClearVu and SideVu (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- NMEA 2000 connectivity for sensors and engine data; IPX7 waterproof rating
- Supplied without a transducer so you can choose the model that suits your boat
- ECHOMAP UHD2 95sv chartplotter (Garmin Navionics+ UK/IE preloaded)
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible products found.
Display
| Display size | 229 mm (9 in.) diagonal; 198 x 115 mm viewable |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Control type | Touchscreen with keyed assist |
Physical
| Dimensions (W x H x D), device only | 264 x 166 x 80 mm |
| Weight | 1.3 kg (2.9 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, fast-acting (included) |
| Max. power draw | 20.7 W |
| Typical current draw at 12 Vdc (RMS) | 1.72 A |
| Max. current draw at 12 Vdc (peak) | 3.5 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP + Garmin SideVu CHIRP (sv) |
| Sonar frequencies | Traditional L, M, H CHIRP: 50/77/83/200 kHz; ClearVu CHIRP: 260/455/800/1000/1200 kHz; SideVu CHIRP: 260/455/800/1000/1200 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP, ClearVu and SideVu) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; 32 GB max. card size |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -20 to 55 C |
| Compass-safe distance | 22.5 cm (9 in.) |
General
| Preloaded mapping | Garmin Navionics+ UK and Ireland |
