Garmin GT34UHD-THP Transducers Thru-Hull Pair
£1,270.00
/
Tax included.
Shipping calculated at checkout.
010-12776-11

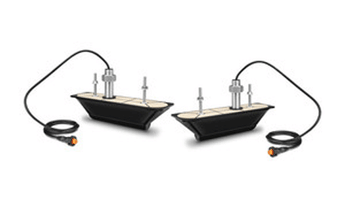

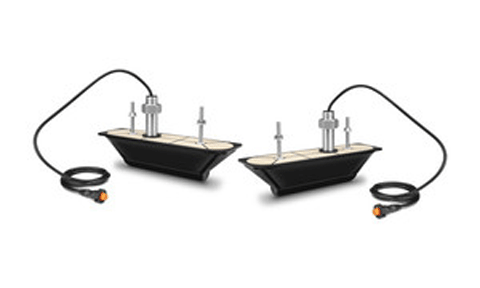

The Garmin GT34UHD-THP is a matched pair of 12-pin thru-hull transducers delivering Ultra High-Definition ClearVu and SideVu scanning sonar. Joined by a Y-cable, the pair extends clear UHD SideVu coverage to hulls of up to 25 degrees deadrise.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT34UHD-THP is a matched port-and-starboard pair of 12-pin thru-hull transducers delivering Ultra High-Definition ClearVu and SideVu scanning sonar at 800 kHz and 1,200 kHz. With 500 W per element, the pair produces stunningly clear, high-resolution images of structure and fish below the boat (UHD ClearVu to 200 ft) and out to the sides (UHD SideVu 125 ft each side, 250 ft total). Splitting SideVu across two hull-mounted transducers maintains clear side coverage on hulls of up to 25 degrees deadrise. Two fairing blocks, isolation plates and bushings are included, with at least one anti-rotation bolt required per transducer, and a built-in fast-response water temperature sensor. The two transducers join via the included Y-cable to a Garmin sonar system, working with a GPSMAP 8600xsv or ECHOMAP Ultra chartplotter or the GCV 20 sonar module.
PRODUCT DETAILS
- Matched pair of thru-hull transducers for Ultra High-Definition ClearVu and SideVu scanning sonar
- UHD ClearVu (800 kHz) and UHD SideVu (1,200 kHz), 500 W per element, for high-resolution imaging
- UHD ClearVu reads to 200 ft; UHD SideVu to 125 ft each side (250 ft total)
- Two fairing blocks support higher-deadrise hulls (0 to 25 degrees)
- Joined by a Y-cable to a Garmin sonar system; built-in temperature sensor
- 12-pin; works with GPSMAP 8600xsv, ECHOMAP Ultra or the GCV 20 sonar module
- Two GT34UHD thru-hull transducers with stainless steel stems
- Two fairing blocks
- Y-cable
- Isolation plates and bushings
- Mounting hardware (including anti-rotation bolts)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
ECHOMAP™ UHD2 62sv without Transducer
ECHOMAP™ UHD2 72sv without Transducer
ECHOMAP™ UHD2 92sv without Transducer
Garmin ECHOMAP™ UHD2 6" Chartplotters, 65sv without Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters, 75sv without Transducer
Garmin ECHOMAP™ UHD2 9" Chartplotters, 95sv without Transducer
ECHOMAP™ Ultra 2 10 Chartplotters, 102sv without Transducer
ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Garmin ECHOMAP™ Ultra 2 16" chartplotter 162sv without transducer
Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP® 1623xsv
GPSMAP® 9017xsv
GPSMAP® 8616 - 010-02093-01
Garmin GPSMAP 8617
Sonar
| Sonar types | Ultra High-Definition Garmin ClearVu and Ultra High-Definition Garmin SideVu scanning sonar (no traditional sonar element) |
| UHD ClearVu frequency | 800 kHz (760-880 kHz) |
| UHD SideVu frequency | 1,200 kHz (1060-1170 kHz) |
| Transmit power | ClearVu and SideVu 500 W |
| Maximum depth | UHD ClearVu 200 ft; UHD SideVu 125 ft each side, 250 ft total |
Beam
| UHD ClearVu beamwidth | 0.76 x 46 degrees at 800 kHz |
| UHD SideVu beamwidth | 0.44 x 55 degrees at 1,200 kHz |
Mounting
| Mount type | Thru-hull pair (port and starboard) with cuttable fairing blocks; supported deadrise 0 to 25 degrees |
| Fairing block | Fairing block included; maximum cut angle 25 degrees; a fairing block should be used where deadrise exceeds 5 degrees |
| Installation | Must be installed with one or more included anti-rotation bolts; metal hulls use the included isolation plate and bushings |
| Anti-fouling | Apply water-based anti-fouling paint every six months; never use ketone-based paint |
Physical
| Housing material | Stainless steel stem |
| Temperature sensor | Built-in fast-response water temperature sensor |
Connectivity
| Connector | 12-pin |
| Cable | Each transducer 1.5 m (5 ft) plus a 9 m (30 ft) Y-extension combining the pair to the sonar black box |
Compatibility
| Compatible devices | Adds Ultra High-Definition ClearVu and SideVu to compatible Garmin chartplotters. Plugs directly into a GPSMAP 8600xsv series or ECHOMAP Ultra series chartplotter, or use the GCV 20 sonar module to display on other compatible chartplotters (also supported via GSD 25). Some combinations require an adapter cable. |
General
| In the box | Two GT34UHD thru-hull transducers with stainless steel stems, two fairing blocks, Y-cable, isolation plates and bushings, mounting hardware and documentation |
No videos available for this product.
Why is the GT34UHD-THP supplied as a pair?
Ultra High-Definition SideVu needs near-flat mounting to image evenly to both sides. Splitting SideVu across two hull-mounted transducers, one angled to each side, lets the GT34UHD-THP keep clear UHD side coverage on hulls of up to 25 degrees deadrise. The pair joins to the sonar system via the included Y-cable.
What sonar does the GT34UHD-THP provide?
Ultra High-Definition Garmin ClearVu (800 kHz) and SideVu (1,200 kHz) scanning sonar, 500 W per element. UHD ClearVu reads to 200 ft and UHD SideVu to 125 ft each side (250 ft total). There is no traditional sonar element.
What do I need to display it?
It uses 12-pin connectors joined by a Y-cable. It works with a GPSMAP 8600xsv or ECHOMAP Ultra chartplotter, or through the GCV 20 sonar module on other compatible chartplotters; some combinations require an adapter cable.
Does it read water temperature?
Yes, it has a built-in fast-response water temperature sensor.
