Garmin

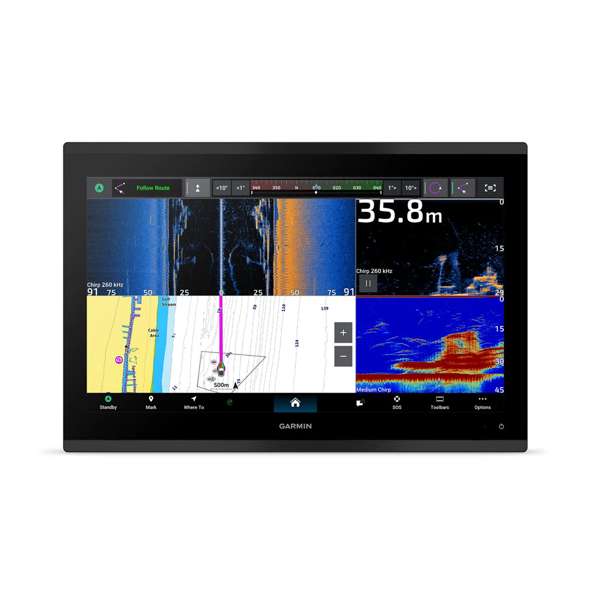

GPSMAP® 9017xsv
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 9017xsv sits at the top of the GPSMAP range, pairing a premium 17 inch 4K UHD IPS touchscreen with built-in high-power sonar for captains and anglers who demand the best. The sunlight-readable display delivers edge-to-edge clarity on a glass helm, while integrated CHIRP traditional, Garmin ClearVu and SideVu sonar reads to 5,000 ft with a compatible transducer.
Built on the Garmin BlueNet network, the 9017xsv shares sonar, radar, charts and HDMI video at high speed across compatible displays. Dual 8-pin and 12-pin transducer ports, two internal microSD readers, HDMI in and out, NMEA 2000, NMEA 0183 and J1939 engine support make it a complete multi-function hub. Wi-Fi and Bluetooth add ActiveCaptain connectivity and easy updates. The unit flush mounts or bail mounts with the supplied hardware; a compatible transducer and a networked Garmin GPS antenna are required.
PRODUCT DETAILS
- Premium 17 in IPS 4K UHD (3840 x 2160) sunlight-readable touchscreen
- Built-in CHIRP traditional, Garmin ClearVu and SideVu sonar with Ultra High-Definition scanning
- 1 kW (RMS) CHIRP sonar reading to 5,000 ft with a compatible transducer
- Garmin BlueNet networking for high-speed sharing of sonar, radar, charts and HDMI video
- Dual 8-pin and 12-pin transducer ports plus dual internal microSD card readers (up to 1 TB each)
- HDMI in and out (up to 4K at 60 fps), NMEA 2000, NMEA 0183 and J1939 engine connectivity
- Wi-Fi (2.4 and 5 GHz) and Bluetooth for ActiveCaptain app, updates and wireless features
- Flush-mount or bail-mount installation with all hardware and metal trim included
- GPSMAP 9017xsv chartplotter/sonar unit
- Flush-mount template, gasket and mounting hardware (wood screws, nut plates and machine screws)
- Bail mount with knobs
- Decorative trim caps
- Power cable with inline fuse holder
- NMEA 2000 starter kit
- Protective bumper
- Documentation
No exploded diagram available for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 17 in (43.8 cm) diagonal; 38.2 x 21.5 cm (15.04 x 8.50 in.) |
| Display resolution | 4K UHD, 3840 x 2160 pixels |
| Touchscreen | Yes, IPS multi-touch |
Physical
| Dimensions (W x H x D) | 42.7 x 28.5 x 9.2 cm (16.80 x 11.23 x 3.60 in.) |
| Weight | 5.90 kg (13.0 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Mounting | Flush mount or bail mount (hardware included) |
| Compass-safe distance | 50 cm (20 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Fuse | 10 A |
| Maximum power usage | 67.5 W |
| Typical current draw | 5.4 A at 12 Vdc; 2.7 A at 24 Vdc |
Sonar
| Built-in sonar | Garmin CHIRP traditional, ClearVu and SideVu with Ultra High-Definition |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; Single Channel CHIRP 40 to 250 kHz; ClearVu CHIRP 260/455/800 kHz; UHD ClearVu 800 kHz (760-880 kHz); UHD SideVu 1,200 kHz (1,060-1,170 kHz) |
| Sonar transmit power (RMS) | CHIRP 1000 W; ClearVu and SideVu CHIRP 500 W |
| Maximum sonar depth | 5,000 ft at 1 kW (transducer dependent) |
| Transducer connectors | 8-pin and 12-pin transducer ports |
Connectivity
| Wi-Fi | Yes, 2.4 GHz and 5 GHz |
| Bluetooth | Yes |
| Networking | Garmin BlueNet network ports; NMEA 2000; NMEA 0183; J1939 |
| Video | HDMI in (up to 4K at 60 fps), HDMI out, composite video in (CVBS) |
| NMEA 2000 LEN | 2 (70 mA max draw) |
GPS/GNSS
| Position source | External Garmin NMEA 2000 GPS antenna (networked) |
General
| Memory card | 2 internal microSD card readers, up to 1 TB each (exFAT, class 10) |
| Maximum waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
