Garmin GT34UHD-TH Thru-hull Transducer
£679.99
/
Tax included.
Shipping calculated at checkout.
010-12776-10

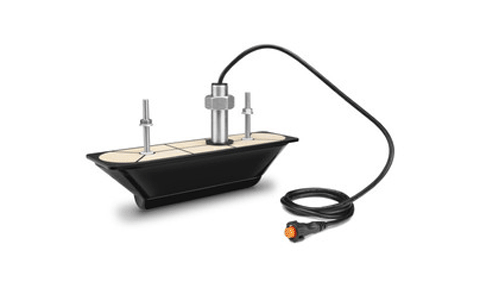

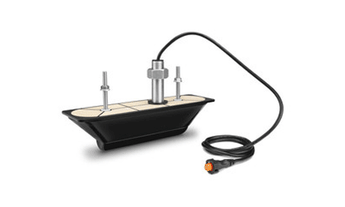

The Garmin GT34UHD-TH is a 12-pin stainless steel thru-hull transducer delivering Ultra High-Definition ClearVu and SideVu scanning sonar. It produces stunningly clear images of structure and fish, with a fairing block for low-deadrise hulls and a built-in temperature sensor.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT34UHD-TH brings Ultra High-Definition ClearVu and SideVu scanning sonar to a flush thru-hull fitting. Operating at 800 kHz (UHD ClearVu) and 1,200 kHz (UHD SideVu) with 500 W, it delivers stunningly clear, high-resolution images of structure and fish below the boat (to 200 ft) and out to the sides (125 ft each side, 250 ft total). A fairing block, isolation plate and bushings are included so it can be flush-mounted on hulls of 0 to 5 degrees deadrise and on metal hulls, and at least one anti-rotation bolt is required. A built-in fast-response water temperature sensor is fitted. The 12-pin transducer plugs directly into a GPSMAP 8600xsv or ECHOMAP Ultra series chartplotter, or connects through the GCV 20 sonar module to display on other compatible chartplotters. For higher-deadrise hulls, the GT34UHD-THP pair extends SideVu coverage.
PRODUCT DETAILS
- Ultra High-Definition ClearVu (800 kHz) and SideVu (1,200 kHz) scanning sonar
- Exceptionally clear, high-resolution images of structure and fish below and beside the boat
- 500 W power; UHD ClearVu reads to 200 ft, UHD SideVu to 125 ft each side (250 ft total)
- Stainless steel thru-hull with included fairing block for low-deadrise hulls (0 to 5 degrees)
- Built-in fast-response water temperature sensor
- 12-pin; plugs into GPSMAP 8600xsv or ECHOMAP Ultra, or use the GCV 20 sonar module
- GT34UHD-TH thru-hull transducer with stainless steel stem
- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware (including anti-rotation bolts)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
ECHOMAP™ UHD2 62sv without Transducer
ECHOMAP™ UHD2 72sv without Transducer
ECHOMAP™ UHD2 92sv without Transducer
Garmin ECHOMAP™ UHD2 6" Chartplotters, 65sv without Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters, 75sv without Transducer
Garmin ECHOMAP™ UHD2 9" Chartplotters, 95sv without Transducer
ECHOMAP™ Ultra 2 10 Chartplotters, 102sv without Transducer
ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Garmin ECHOMAP™ Ultra 2 16" chartplotter 162sv without transducer
Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP® 1623xsv
GPSMAP® 9017xsv
GPSMAP® 8616 - 010-02093-01
Garmin GPSMAP 8617
Sonar
| Sonar types | Ultra High-Definition Garmin ClearVu and Ultra High-Definition Garmin SideVu scanning sonar (no traditional sonar element) |
| UHD ClearVu frequency | 800 kHz (760-880 kHz) |
| UHD SideVu frequency | 1,200 kHz (1060-1170 kHz) |
| Transmit power | ClearVu and SideVu 500 W |
| Maximum depth | UHD ClearVu 200 ft; UHD SideVu 125 ft each side, 250 ft total |
Beam
| UHD ClearVu beamwidth | 0.76 x 46 degrees at 800 kHz |
| UHD SideVu beamwidth | 0.44 x 55 degrees at 1,200 kHz |
Mounting
| Mount type | Thru-hull (single) with cuttable fairing block; supported deadrise 0 to 5 degrees |
| Fairing block | Fairing block included; maximum cut angle 25 degrees; a fairing block should be used where deadrise exceeds 5 degrees |
| Installation | Must be installed with one or more included anti-rotation bolts; metal hulls use the included isolation plate and bushings |
| Anti-fouling | Apply water-based anti-fouling paint every six months; never use ketone-based paint |
Physical
| Housing material | Stainless steel stem |
| Temperature sensor | Built-in fast-response water temperature sensor |
Connectivity
| Connector | 12-pin |
| Cable | 1.5 m (5 ft) transducer cable plus 9 m (30 ft) extension |
Compatibility
| Compatible devices | Adds Ultra High-Definition ClearVu and SideVu to compatible Garmin chartplotters. Plugs directly into a GPSMAP 8600xsv series or ECHOMAP Ultra series chartplotter, or use the GCV 20 sonar module to display on other compatible chartplotters (also supported via GSD 25). Some combinations require an adapter cable. |
General
| In the box | GT34UHD-TH transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and documentation |
No videos available for this product.
What sonar does the GT34UHD-TH provide?
It provides Ultra High-Definition Garmin ClearVu (800 kHz) and Ultra High-Definition SideVu (1,200 kHz) scanning sonar at 500 W, giving very high-resolution images. UHD ClearVu reads to 200 ft and UHD SideVu to 125 ft each side (250 ft total). It does not include a traditional sonar element.
What do I need to display the GT34UHD-TH?
It uses a 12-pin connector and plugs directly into a GPSMAP 8600xsv or ECHOMAP Ultra series chartplotter. To use it with other compatible chartplotters, connect it through the GCV 20 sonar module; some combinations require an adapter cable.
What hull deadrise does it suit?
The single GT34UHD-TH supports hulls of 0 to 5 degrees deadrise. For hulls up to 25 degrees deadrise, choose the GT34UHD-THP pair, which splits SideVu across two transducers to keep clear side coverage.
Does it read water temperature?
Yes, it has a built-in fast-response water temperature sensor.
