Garmin

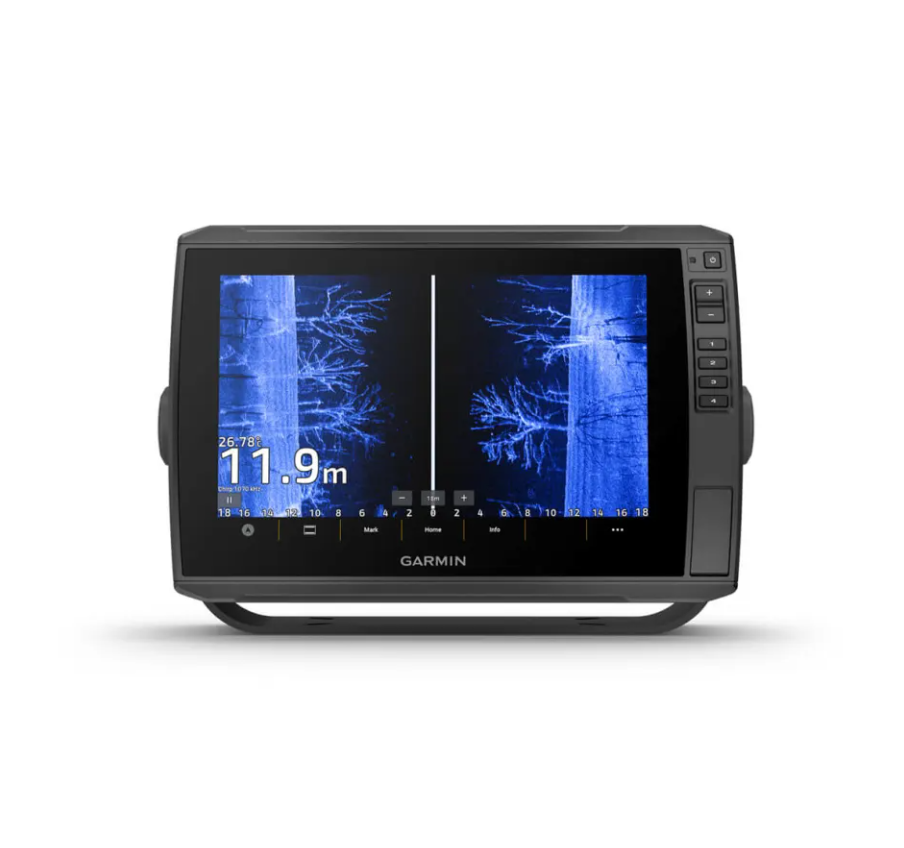

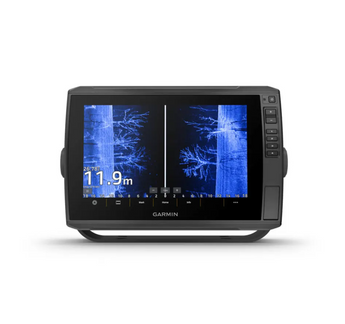

ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP Ultra 2 122sv delivers premium big-screen performance on a large 12-inch touchscreen, with keyed assist and a crisp high-resolution WXGA display that gives serious anglers room to view detailed mapping and sonar together. It supports Garmin's best-in-class sonar, including traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS, and is ready to add the full Garmin LiveScope live scanning sonar range through its dedicated network port. Twin microSD slots accept cards up to 1 TB for premium charts and Quickdraw Contours mapping, while built-in high-sensitivity GPS, Wi-Fi and ActiveCaptain app connectivity keep you positioned and up to date. The unit is compatible with Garmin Navionics+ and Navionics Vision+ charts, and NMEA 2000 connectivity allows integration with sensors and engine data. The IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 12-inch touchscreen chartplotter with keyed assist and high-resolution WXGA (1280 x 800) display
- Best-in-class Garmin sonar: traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS
- Compatible with the full Garmin LiveScope live scanning sonar range via the Garmin network port
- Two microSD card slots supporting cards up to 1 TB for charts and Quickdraw Contours maps
- Built-in high-sensitivity GPS plus Wi-Fi and ActiveCaptain app connectivity
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity and IPX7 waterproof rating; supplied without a transducer
- ECHOMAP Ultra 2 122sv chartplotter
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible products found.
Display
| Display size | 309 mm (12 in.) diagonal; 262 x 164 mm viewable |
| Display resolution | WXGA, 1280 x 800 pixels |
| Control type | Touchscreen with keyed assist |
Physical
| Dimensions (W x H x D), device only | 341 x 229 x 98 mm |
| Weight | 2.46 kg (5 lb. 7 oz.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 8 A, fast-blow (included) |
| Max. power draw | 36 W |
| Typical current draw at 12 Vdc (RMS) | 2.5 A |
| Max. current draw at 12 Vdc (peak) | 5 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP + Garmin SideVu CHIRP (sv); compatible with Ultra High-Definition scanning and LiveScope |
| Sonar frequencies | Traditional L, M, H CHIRP: 50/77/83/200 kHz; ClearVu CHIRP: 260/455/800/1000/1200 kHz; SideVu CHIRP: 260/455/800/1000/1200 kHz |
| Sonar transmit power (RMS) | 600 W (CHIRP, ClearVu and SideVu) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Garmin Marine Network | Garmin network port for compatible LiveScope, GCV and ECHOMAP devices |
| Memory card | 2 microSD card slots; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 9 cm (3.5 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+; Quickdraw Contours |
