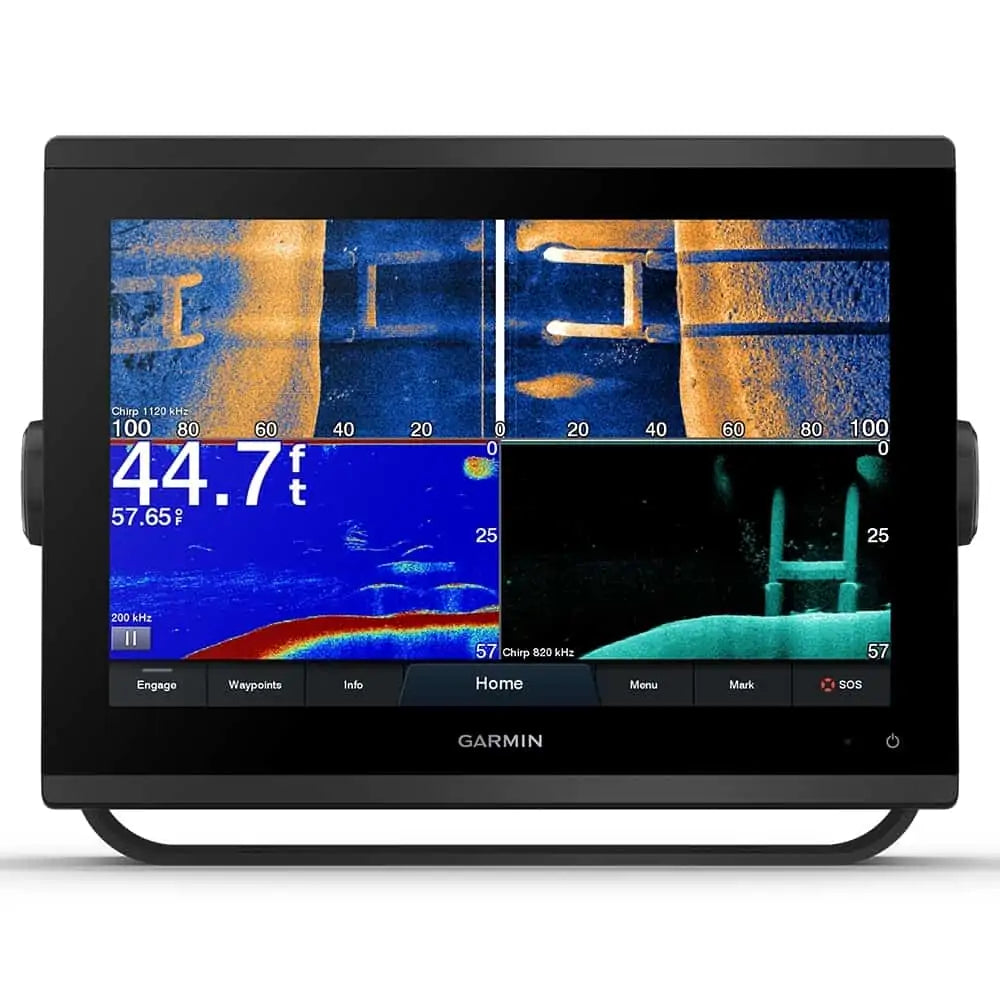

GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1223xsv combines a 12-inch WXGA IPS touchscreen with built-in sonar, making it a complete navigation and fishfinding display for larger helms. The high-resolution screen stays clear in direct sunlight and across wide viewing angles, and HDMI output can mirror the display on an external monitor.
Its 12-pin sonar port drives Garmin SideVu and ClearVu scanning sonar plus traditional CHIRP, giving photo-like views of structure beneath and to the sides of the boat. For live imaging, it connects to Garmin Panoptix and LiveScope modules across the Garmin Marine Network.
A preloaded worldwide basemap supports premium Garmin Navionics+ and Garmin Navionics Vision+ charts with Auto Guidance and detailed coastal data. Built-in Wi-Fi pairs with the ActiveCaptain app for updates and notifications, while NMEA 2000, NMEA 0183 and Garmin Marine Network connectivity link radar, autopilot, engine data and instruments. The housing is rated to IPX7.
PRODUCT DETAILS
- Built-in Ultra High-Definition Garmin SideVu, ClearVu and traditional CHIRP sonar via the 12-pin transducer port
- 12-inch WXGA IPS touchscreen (1280 x 800) with bright, high-resolution display for clear viewing in direct sunlight
- HDMI video output to mirror the chartplotter screen on an external monitor or television
- Preloaded worldwide basemap with support for premium Garmin Navionics+ and Garmin Navionics Vision+ cartography
- Expandable to Garmin Panoptix and LiveScope live-imaging sonar across the Garmin Marine Network
- Built-in Wi-Fi and ActiveCaptain app connectivity for chart updates, smart notifications and Garmin Helm remote control
- Rugged IPX7 waterproof housing with two microSD card slots (32 GB max) for charts and Quickdraw Contours
- GPSMAP 1223xsv chartplotter
- Bail mount with knobs
- Flush-mount kit and template
- Power/data cable
- NMEA 2000 drop cable and T-connector
- Protective sun cover
- Ferrite beads
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 30.7 cm (12.1 in) diagonal; 262.1 x 164.2 mm viewable |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 308.3 x 227.6 x 81.8 mm (12 1/8 x 8 15/16 x 3 1/4 in) |
| Weight | 3.0 kg (6.6 lb) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 45 cm (17.72 in) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Maximum power usage at 10 Vdc | 43.0 W (sonar model) |
| Typical current draw at 12 Vdc | 1.68 A (sonar model) |
| Maximum current draw at 12 Vdc | 3.56 A (sonar model) |
| Fuse | 6 A, 125 V fast-acting |
Sonar
| Sonar technologies | Built-in Garmin SideVu, Garmin ClearVu and traditional CHIRP sonar |
| Transducer connector | 12-pin sonar port |
| Panoptix and LiveScope support | Compatible with Garmin Panoptix and LiveScope sonar via the Garmin Marine Network |
Connectivity
| Wireless | Wi-Fi, 2.4 GHz @ 18.3 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max draw) |
| Data interfaces | NMEA 2000, NMEA 0183, Garmin Marine Network (Ethernet), J1939 engine network |
| Video | HDMI video out and composite video in (CVBS) |
| Memory card | 2 microSD card slots, 32 GB max card size |
GPS/GNSS
| GPS | Internal GPS antenna; supports external GPS source over NMEA 2000 |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55°C (5 to 131°F) |
