Raymarine Element 12 HV with HV-100 Transducer and Two-Region LightHouse Chart

Name: Raymarine Element 12 HV with HV-100 Transducer and Two-Region LightHouse Chart
Brand: Raymarine
SKU: E70536-05-202
Availability: Discontinued

E70536-05-202

Raymarine Element 12 HV bundle with HV-100 transducer and Two-Region LightHouse Chart. Flagship 12.1 inch IPS Element HV with HyperVision 1.2 MHz sonar for picture-like imaging of fish and structure. LightHouse Sport OS, RealBathy live mapping and MicroSDXC chart slot. Pairs with Quantum radar and integrates with Evolution autopilots over SeaTalkng.

Description

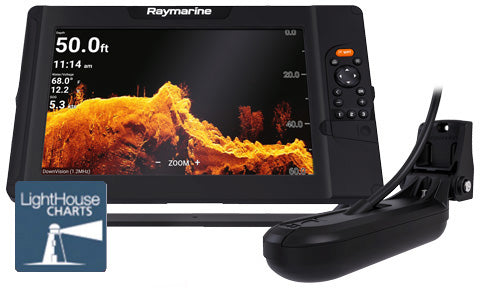

This pack includes the display together with the HV-100 HyperVision transom mount transducer and a Two-Region LightHouse chart, giving you everything in one box.

The Raymarine Element 12 HV is the flagship of the Element range: a 12.1 inch 1280 x 800 IPS display with HyperVision sonar built in. At 1.2 MHz, RealVision 3D, SideVision and DownVision deliver super-high-resolution imagery of fish and structure; standard 350 kHz modes extend range, and 200 kHz conical high CHIRP reaches 274 m.

LightHouse Sport keeps everything two presses away with three Quicklaunch buttons, while RealBathy records your own bathymetry as you fish. Charts run from a MicroSDXC slot with support for LightHouse NC2 with Fishing Hot Spots, Navionics and C-MAP. A 28-channel GPS / GLONASS / BeiDou receiver provides positioning.

HyperVision HV-100 and HV-300 transducers connect directly, legacy transducers connect via adaptor cables, Quantum radar pairs over Wi-Fi and Evolution autopilot integration runs over SeaTalkng / NMEA 2000. Element displays operate standalone from Axiom MFDs.

PRODUCT DETAILS

HyperVision 1.2 MHz super-high-resolution CHIRP sonar
Seven sonar channels: RealVision 3D, SideVision and DownVision in Hyper and Standard modes, plus 200 kHz conical high CHIRP
15-pin HyperVision transducer connector
LightHouse Sport operating system with three programmable Quicklaunch buttons
RealBathy personal sonar map creation
Built-in GPS / GLONASS / BeiDou receiver
Compatible with LightHouse NC2 charts with Fishing Hot Spots, Navionics and C-MAP cartography
Pairs wirelessly with Quantum series radar scanners
Sends navigation data to an Evolution autopilot over SeaTalkng / NMEA 2000
Sunlight-viewable 1500 nit display, IPx6 / IPx7 rated
Wi-Fi for over-the-air software updates

Element 12 HV display
Trunnion bracket
Trunnion knobs (x2)
Surface mount gasket
Surface mount fixings (4 x M4 x 40 machine screws, flat washers, locking nuts)
Sun cover
Power / NMEA 2000 cable (1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
Documentation pack
HV-100 transom mount transducer

No exploded diagram available for this product.

Raymarine CPT-110 DownVision Through Hull Transducer

Raymarine CPT-S 12° Urethane Through Hull Transducer

Raymarine CPT-S 12° Bronze Through Hull Transducer

Raymarine CPT-70 Dragonfly Through Hull Plastic CHIRP Transducer

Raymarine CPT-S 20° Bronze Through Hull Transducer

Raymarine CPT-80 Dragonfly Through Hull Bronze CHIRP Transducer

Raymarine CPT-S Transom Mount Transducer

Raymarine CPT-S 20° Urethane Through Hull Transducer

Raymarine HV-300THP Pair of HV-300TH Through Hull Transducers

Raymarine HV-300TH Through Hull Transducer 6 Meter Cable

Raymarine CPT-120 DownVision Through Hull Transducer

Raymarine CPT-S 0° Urethane Through Hull Transducer

Raymarine HV-300THP-S Split Transducer STBD Plastic 2M

Raymarine CPT-S 0° Bronze Through Hull Transducer

Raymarine HV100.02 HyperVision Transom Transducer, 6 m Cable

Raymarine HV-300THP-P Split Transducer Port Plastic 2M

Raymarine Dragonfly CPT-DVS Spare Transducer

Raymarine CPT-100DVS DownVision Transom Mount Transducer

Raymarine Transducer Extension Cable for Direct Connect Transduser 3m

Raymarine Element 12 Trunnion Kit

Raymarine MinnKota Transducer to Element HV Adaptor Cable

Raymarine HyperVision Thru-Hull Transducer Split Y-Cable, 0.5 m

Raymarine Element 12 Sun Cover

Raymarine CPT-S / DownVision 9-Pin Transducer to Element HV Adaptor Cable

Raymarine Element Ice Fishing Kit

Raymarine Dragonfly CPT-DV - CPT-DVS Extension Cable 4m

Raymarine MotorGuide Transducer to Element HV Adaptor Cable

Raymarine Dragonfly 10-Pin Transducer to Element HV Adaptor Cable

Raymarine HyperVision Transducer Extension Cable, 4 m

Raymarine Element 12 Surface Mount Kit

Raymarine Transducer Extension Cable for CPT-S, CPT100, CPT110 and CPT120, 4 m

Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 Connector

Raymarine p70s Autopilot Control Head

RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD

Raymarine SeaTalk ng Starter Kit

Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables

Raymarine Evolution Cabling Kit (SeaTalkng)

Raymarine EV-1 Sensor Core

Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card

Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power Cable

Raymarine ECI-100 Engine and Control Interface

Raymarine SeaTalk ng Backbone Kit

Raymarine p70Rs Autopilot Control Head

Raymarine Quantum Q24W Wireless Only CHIRP Radar with 10m Power Cable

Display

Display size	12.1"
Display type	IPS (In-Plane Switching)
Resolution	WXGA 1280 x 800
Aspect ratio	8:5
Colour depth	24 bit
Maximum brightness	1500 cd/m2 (1500 nits)
Viewing angle (T / B / L / R)	89° / 89° / 89° / 89°

Sonar

Sonar channels	Conical high CHIRP sonar; RealVision 3D (Hyper); RealVision 3D (Standard); SideVision (Hyper); SideVision (Standard); DownVision (Hyper); DownVision (Standard)
Sonar frequencies	1.2 MHz CHIRP; 350 kHz CHIRP; 200 kHz CHIRP
Sonar power	1.2 MHz (Hyper) = 1000 W; 350 kHz (Standard) = 700 W; 200 kHz (conical high CHIRP) = 100 W
Range (200 kHz conical high CHIRP)	0.6 m (2 ft) to 274 m (900 ft)
Range (350 kHz Standard)	RealVision 3D: to 91 m (300 ft); SideVision: to 91 m (300 ft) each side; DownVision: to 183 m (600 ft)
Range (1.2 MHz Hyper)	RealVision 3D / SideVision / DownVision: to 38 m (125 ft)
Transducer connector	1 x 15-pin HyperVision connector

GNSS receiver

Channels	Multiple — ability to simultaneously track up to 28 satellites
GNSS compatibility	GPS; GLONASS; BeiDou
SBAS compatibility	EGNOS; GAGAN; MSAS; QZSS; WAAS
Cold start	Less than 2 minutes
Receiver sensitivity	165 dBm (tracking); 160 dBm (acquisition); 148 dBm (cold start)
Operating frequency	1574 MHz to 1605 MHz
Position accuracy	Without SBAS: within 15 m, 95% of the time; with SBAS: within 5 m, 95% of the time
Geodetic datum	WGS-84 (alternatives can be selected on the MFD)
Antenna	Internal — ceramic chip mounted near top of unit

Connections

SeaTalkng / NMEA 2000	1 x DeviceNet female connector built into power cable
Wi-Fi	1 x 802.11 b/g/n (2.4 GHz)
NMEA 2000 LEN (Load Equivalency Number)	1 (based on 9 V dc nominal voltage)
Memory card	1 x MicroSDXC card slot

Power

Nominal supply voltage	12 V dc
Operating voltage range	8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (approximate @ 12 V dc)	24 Watts
Fuse rating	Inline fuse: 5 A; thermal breaker: 3 A

Physical

Width (trunnion bracket)	373.40 mm (14.70 in)
Height (trunnion bracket)	225.19 mm (8.87 in)
Width (surface mount)	357.20 mm (14.06 in)
Height (surface mount)	215.20 mm (8.47 in)
Depth (overall)	149.40 mm (5.88 in)
Weight (display only)	2.0 kg

Environmental

Operating temperature range	-25°C (-13°F) to +55°C (+131°F)
Storage temperature range	-30°C (-22°F) to +70°C (+158°F)
Humidity	Up to 93% @ 40°C (+104°F)
Water ingress protection	IPx6 and IPx7

Conformance

Conformance	EN 60945:2002; EMC Directive 2014/30/EU; Australia and New Zealand C-Tick compliance level 2; Canadian RSS 247; FCC rules part 15
EU Declaration of Conformity	RD1053 (Radio Equipment Directive 2014/53/EU)

What is the difference between Element HV and Element S?

Element HV has a built-in HyperVision sonar module offering RealVision 3D, SideVision and DownVision channels at super-high 1.2 MHz resolution plus 350 kHz standard modes and 200 kHz conical high CHIRP. Element S has a built-in conical high CHIRP (200 kHz) sonar module only, designed for direct connection to CPT-S transducers.

Which transducers work with an Element display?

Element HV connects directly to HyperVision HV-100 and HV-300 series transducers, and to CPT-S, DownVision and Dragonfly transducers via the A80559 or A80558 adaptor cables. MinnKota and MotorGuide embedded transducers connect via the A80560 and A80606 adaptors with the 200 kHz channel available. Element S connects directly to CPT-S high CHIRP transducers.

Can I network an Element display with an Axiom or other Raymarine MFD?

No. Element displays cannot be connected to the same SeaTalkng backbone as a multifunction display such as an Axiom, and they have no RayNet connection, so they cannot be networked with an MFD in any way. Waypoints can however be shared between networked Element displays.

Does Element support radar?

Yes. Element pairs wirelessly with a Quantum series radar scanner over Wi-Fi. Quantum scanners running v2.52 software or later require the Element display to be running LightHouse Sport v3.19.17 or later.

Which charts can I use with an Element display?

Element supports Raymarine LightHouse NC2 charts with Fishing Hot Spots, plus Navionics and C-MAP cartography, loaded via the MicroSDXC card slot.

Can an Element display control an autopilot?

An Element display can send navigation data to a compatible Evolution autopilot system on the same SeaTalkng / NMEA 2000 network. A dedicated autopilot controller, such as a p70s or p70Rs, is required to operate the autopilot.
