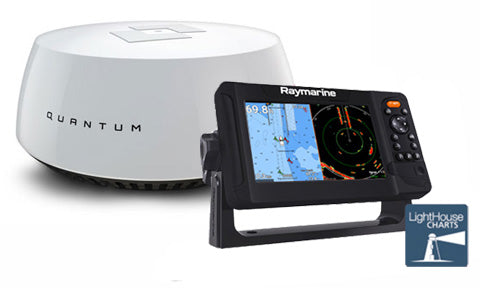

Raymarine Element 7 S with Two Region Lighthouse Chart and Wireless Radar
Manufacturer Part Number:
E70531-00-202-Q24W
Manufacturer Part Number:
E70531-00-202-Q24W
The Element 7 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful colour. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays. Comes with Quantum 18 inch Q24W raydome and 10 meter power cable, Raymarine Lighthouse 2 region download chart.
Home or Marina Delivery
Pick up at Hamble
More Information
Element S, Element HV
1. Element™ display.
2. Surface mount gasket.
3. Suncover.
4. Trunnion knobs x 2.
5. Documentation pack
6. Trunnion bracket
7. Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
8. Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000
lead).
Trunnion mount dimensions
Surface mount dimensions
Element technical specification
Internal GNSS (GPS / GLONASS) receiver specification
HyperVision™ technical specification
GENERAL SPECIFICATIONS
| Input Voltage | 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking | Wi-Fi only |
| Antenna Type | Patch Array |
| Power Consumption | Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range | Scales From 1/16 to 24 nautical miles |
| Transmit Frequency | 9354 to 9446 MHz |
| Peak Power Output | 20W |
| Duplexer | Circulator |
| Pulse Widths (3 dB) | 40 ns to 14.7 μs |
| CHIRP Lengths | 400 ns to 20 μs |
| CHIRP Bandwidth | Up to 32 MHz |
| IF Bandwidth | 26 MHz |
| Noise | Less than 4 dB |
| Max. Range Scale | from 1/16 to 24 nautical miles |
| Beamwidth (nominal) | 4.9º horizontal and 20º vertical |
| Polarisation | Horizontal |
| Waterproofing | IPX6 |
| Weight | 5.6 kg (12.3 lb) |
Raymarine Element Navigation
