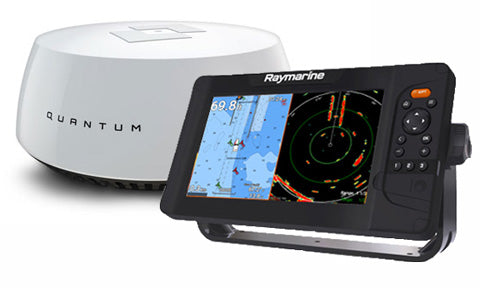

Raymarine Element 9 S with Wireless Radar
Manufacturer Part Number:
E70533-Q24W
Manufacturer Part Number:
E70533-Q24W
The Element 9 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful colour. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays. Comes with Quantum 18 inch Q24W raydome and 10 meter power cable.
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine Element Navigation
Element S, Element HV
1. Element™ display.
2. Surface mount gasket.
3. Suncover.
4. Trunnion knobs x 2.
5. Documentation pack
6. Trunnion bracket
7. Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
8. Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000
lead).
Trunnion mount dimensions
Surface mount dimensions
GENERAL SPECIFICATIONS
| Input Voltage | 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking | Wi-Fi only |
| Antenna Type | Patch Array |
| Power Consumption | Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range | Scales From 1/16 to 24 nautical miles |
| Transmit Frequency | 9354 to 9446 MHz |
| Peak Power Output | 20W |
| Duplexer | Circulator |
| Pulse Widths (3 dB) | 40 ns to 14.7 μs |
| CHIRP Lengths | 400 ns to 20 μs |
| CHIRP Bandwidth | Up to 32 MHz |
| IF Bandwidth | 26 MHz |
| Noise | Less than 4 dB |
| Max. Range Scale | from 1/16 to 24 nautical miles |
| Beamwidth (nominal) | 4.9º horizontal and 20º vertical |
| Polarisation | Horizontal |
| Waterproofing | IPX6 |
| Weight | 5.6 kg (12.3 lb) |
Element technical specification
Internal GNSS (GPS / GLONASS) receiver specification
HyperVision™ technical specification
