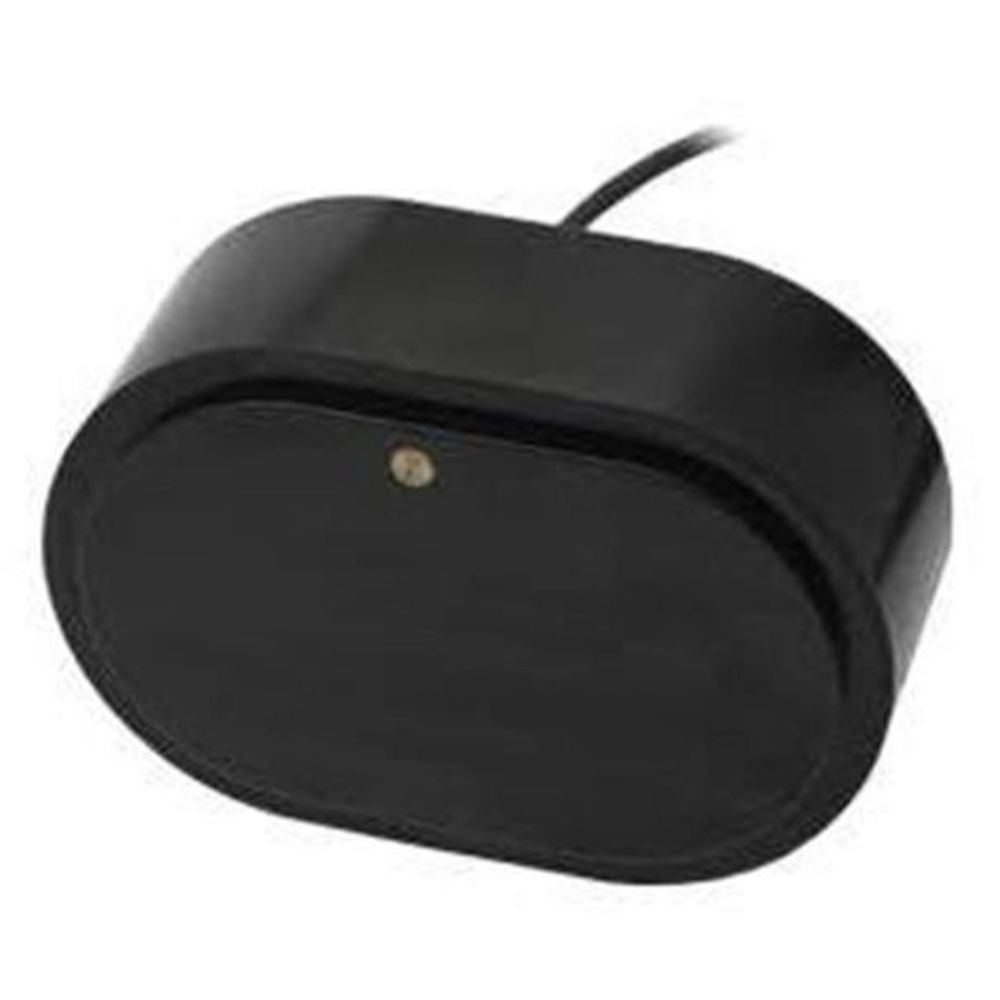

xSonic CM275LH-W Tank-Mounted Low/High CHIRP Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Airmar CM275LH-W is a 1kW wide-beam tank-mounted CHIRP transducer that brings true broadband performance to sportfishing and commercial vessels around 8m (25ft) and up. It combines a 42 to 65kHz low band for long-range depth work with a 150 to 250kHz high band for fine detail, delivering around 123kHz of total bandwidth from a single transducer.
The seamless, sealcast urethane housing is designed for tank or chest mounting inside the hull, avoiding any external fitting while still reading to around 914m (3,000ft) on the low band and 152m (500ft) on the high band. A wide, constant 25 degree high-frequency beam gives broad coverage and excellent fish arches, and integrated depth and fast-response water-temperature sensing complete the package. The XSonic 9-pin connector fits compatible Navico Lowrance, Simrad and B&G sonar.
PRODUCT DETAILS
- Dual-band CHIRP: 42 to 65kHz low and 150 to 250kHz high
- Around 123kHz of total bandwidth from one transducer
- Wide 25 degree constant high-frequency beam for broad coverage
- Tank or chest mounting inside the hull with no external fitting
- 1kW transmit power reading to around 914m (3,000ft) on the low band
- Integrated depth and fast-response water-temperature sensing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Low frequency | 42 to 65kHz CHIRP |
| High frequency | 150 to 250kHz CHIRP |
| Total bandwidth | Around 123kHz |
| Beamwidth | 25 to 16 degrees low, 25 degrees constant high |
| Maximum depth | 914m (3,000ft) low, 152m (500ft) high |
Electrical
| Transmit power | 1kW |
Physical
| Housing | Sealcast seamless urethane, tank-mounted |
| Mounting | Internal tank or chest mount |
| Sensors | Depth and fast-response water temperature |
Connectivity
| Connector | 9-pin XSonic (Navico) |
Sonar Capability
| Chirp | Yes |
