Raymarine i70s Multifunction Instrument Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

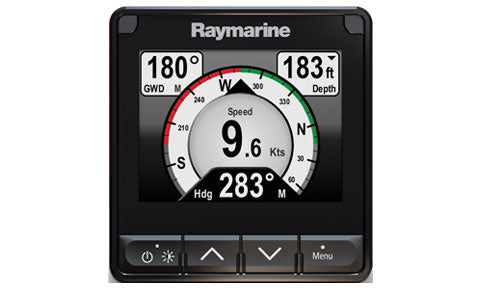

The Raymarine i70s is the multifunction heart of a SeaTalkng instrument system, turning one 4.1 inch colour display into wind, speed, depth, tridata, engine, fuel, environment and navigation pages. The optically bonded TFT delivers 1,200 cd/m2 brightness, 320 x 240 resolution and characters up to 43 mm tall, with colour palettes for day and night and waterproofing to IPx6 and IPx7.
The LightHouse style interface keeps setup and favourites consistent with Raymarine chartplotters, and an AIS repeater view shows the closest 25 targets from an NMEA 2000 AIS receiver. Smart transducers such as the DST800, DT800 and current DST810 connect straight to the backbone, while the iTC-5 converter brings analogue depth, speed, wind, rudder and compass transducers into the system with full calibration from the i70s.
A single SeaTalkng spur connects the display, drawing just 1.7 W, and it networks with Axiom chartplotters and p70s autopilot heads. NMEA 2000 and SeaTalk systems join via adaptor cables.
PRODUCT DETAILS
- Oversized sunlight viewable 4.1 inch optically bonded colour LCD
- 1,200 cd/m2 brightness with day and night colour palettes
- Characters up to 43 mm tall for reading at a distance
- Wind, Speed, Depth, Tridata, Engine, Environment, Fuel and Navigation views
- AIS repeater shows the closest 25 targets from an NMEA 2000 receiver
- LightHouse style interface consistent with Raymarine chartplotters
- Single SeaTalkng connection, 1.7 W consumption, LEN 3
- Full analogue transducer support via the iTC-5 converter
- Waterproof to IPx6 and IPx7
- i70s instrument display (supplied with buttonpad and black bezel A80353 fitted)
- Suncover (A80357)
- Alternative gunmetal bezel (A80354)
- SeaTalkng spur cable 400 mm (15.7 in) (A06038)
- Panel seal gasket
- Cable suppression ferrite
- 4x M3x16 pan head pozi mounting screws
- Documentation pack
No exploded diagram available for this product.
Raymarine DST800 Smart Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine DT800 Smart Bronze Depth, Temperature Transducer 12 degree Tilted Element
Raymarine P319 Low Profile Through Hull Plastic Depth Transducer
Raymarine P7 D Shorty Low Profile Plastic Through Hull Depth Transducer
Raymarine B45 Through Hull Bronze Stem Depth Transducer, includes Fairing Block
Raymarine B17 D Through Hull Retractable Bronze Depth Transducer
Raymarine P17 D Through Hull Retractable Plastic Depth Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, NMEA2000
Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, SeaTalk ng
Raymarine P66 Transom Mount Depth Transducer
Raymarine P120 Speed/Temperature Low-Profile Plastic Through-Hull Transducer (Retractable)
ST900/P120 Speed/Temperature Low Profile Retractable Through Hull Analog Transducer - 20.0m Cable
Raymarine ST900/B120 Speed/Temp Thru-Hull Transducer Cable, 13.7 m
Raymarine ST950/P17 Speed/Temp Thru-Hull Transducer Cable, 10 m
Raymarine P371 Speed Temperature Shorty Plastic Through Hull Transducer
Raymarine ST69 Speed Temperature Transom Mount Transducer
Raymarine P120 L Speed/Temperature Low-Profile Plastic Through-Hull Transducer (Retractable)
Raymarine DST800 Plastic Depth, Speed, Temperature Through Hull Transducer
Raymarine P66 Depth, Speed, Temperature Transom Mount Transducer
Raymarine B744V Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine Short Arm Wind Vane Transducer with 30m Cable
Raymarine Long Arm Wind Vane Transducer with 50m Cable
Raymarine RotaVecta Wind Transducer with 20m Cable
Raymarine Autopilot Rudder Angle Transducer
Raymarine DST810 Gen2 Smart Transducer
Raymarine DST800 Smart Plastic Depth, Speed, Temperature Through Hull Transducer
Raymarine DT800 Smart Plastic Depth, Temperature Transducer 12 degree Tilted Element
Raymarine DT800 Smart Plastic Depth, Temperature Transducer 0 degree Tilted Element
Raymarine i40 Depth Display with P7D Through Hull Depth Transducer
Raymarine i40 Bidata Display with P371 and P7D Through Hull Transducers
Raymarine B120 Speed Temperature Low Profile Bronze Through Hull Retractable Transducer
Raymarine Compass Transducer
Raymarine Active Depth Temp Transducer
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 Pro 12 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 XL 16 Chartplotter Kit
Raymarine Axiom 2 XL 19 Chartplotter Kit
Raymarine Axiom 2 XL 22 Chartplotter Kit
Raymarine Axiom 2 XL 24 Chartplotter Kit
Raymarine DST810 Gen2 Smart Transducer
Raymarine i50 Speed Instrument Display
Raymarine i50 Depth Instrument Display
Raymarine i50 Tridata Instrument Display
Raymarine i60 Wind Instrument Display
Raymarine i60 Close Hauled Wind Instrument Display
Raymarine iTC-5 Instrument Transducer Converter
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine Silicone Suncover for Square Instruments (i50, i60, i70, i70s, p70, p70s)
Raymarine Black Suncover for i50, i60, i70, i70s, p70, p70s
Display
| Screen | 4.1 inch TFT LCD, optically bonded |
| Resolution | 320 (H) x 240 (V) |
| Colours | 16 bit colour (64k colours) |
| Brightness | 1,200 cd/m2 |
| Character height | Up to 43 mm (1.7 in) |
Physical
| Width | 110 mm (4.33 in) |
| Height | 115 mm (4.53 in) |
Mounting
| Panel cut-out | 92 mm (3 5/8 in) hole cutter |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Current | 143 mA |
| Power consumption | 1.7 W |
| LEN (NMEA 2000 Load Equivalency Number) | 3 |
Connections
| Data connections | 1x SeaTalkng connector |
Environmental
| Waterproof rating | IPx6 and IPx7 |
| Relative humidity | 93% max |
| Operating temperature | -25°C to +55°C (-13°F to +131°F) |
| Storage temperature | -30°C to +70°C (-22°F to +158°F) |
Conformance
| Conformance | Europe 2004/108/EC; Australia and New Zealand C-Tick compliance level 2; NMEA 2000 certification pending at publication |
