Victron

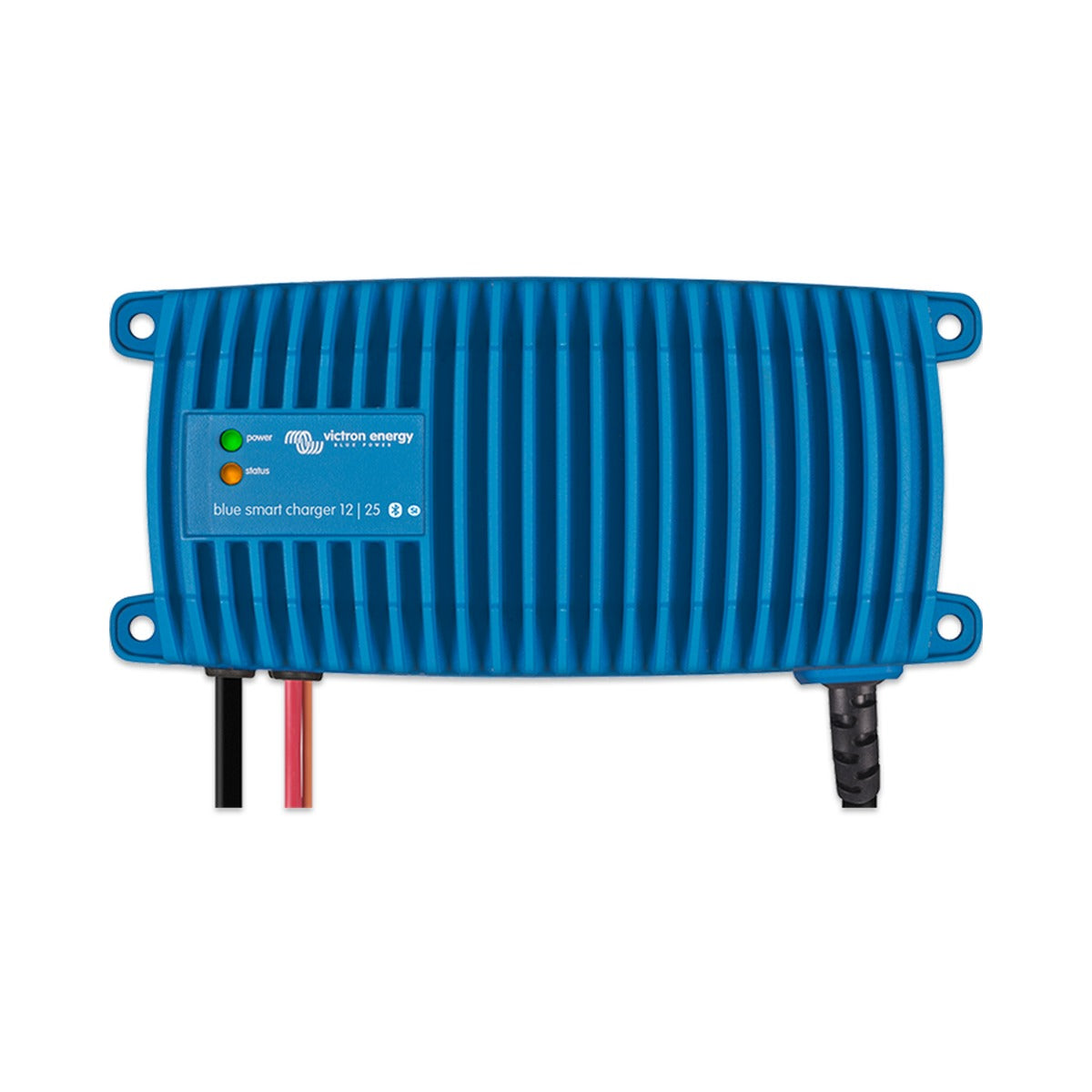

Victron Blue Smart IP67 Charger 24/12 (230V UK Plug)
£186.00
/
Tax included.
Shipping calculated at checkout.
BPC241247026
The Victron Blue Smart IP67 Charger 24/12 is a fully waterproof 24 V, 12 A single-output battery charger with built-in Bluetooth and up to 96% efficiency. This 230 V version is fitted with a UK plug.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Blue Smart IP67 Charger is a professional, fully sealed battery charger built for the harshest environments. Its cast aluminium case and resin-encapsulated electronics make it waterproof, shockproof and ignition protected, so water, oil and dirt will not damage it, on the boat, the bench or the vehicle.
Built-in Bluetooth lets you monitor voltage and current, change settings and update firmware from the free VictronConnect app on a phone, tablet or laptop. A microprocessor-controlled adaptive 5-stage charge algorithm optimises every charge cycle, while storage mode reduces maintenance and ageing when the battery is left connected. The charger also recovers deeply discharged batteries from zero volts and can run as a DC power supply.
This 24 V, 12 A single-output model is the 230 V variant, supplied with a UK BS 1363 plug and rated for a 180-265 VAC supply. With efficiency up to 96% and under 1 W consumption once charged, it wastes far less energy as heat than conventional chargers.
PRODUCT DETAILS
- 24 V, 12 A single-output battery charger
- Fully waterproof, shockproof and ignition-protected IP67 enclosure
- Built-in Bluetooth with the free VictronConnect app
- Adaptive 5-stage charge algorithm (bulk, absorption, recondition, float, storage)
- Charges lead-acid and lithium-ion (LiFePO4) batteries
- Recovers fully discharged batteries from zero volts
- Can be used as a DC power supply
- 230 V version with UK plug; up to 96% efficiency
No exploded diagram available for this product.
No compatible transducers listed for this product.
Key specifications
| Battery voltage | 24 V |
| Charge current | 12 A |
| Number of outputs | 1 |
| Maximum efficiency | 96 % |
Charging
| Charge algorithm | 5-stage adaptive (bulk, absorption, recondition, float, storage) |
| Low current mode | 4 A |
| Charge voltage 'absorption' | Normal 28.8 V; High 29.4 V; Li-ion 28.4 V |
| Charge voltage 'float' | Normal 27.6 V; High 27.6 V; Li-ion 27.0 V |
| Charge voltage 'storage' | Normal 26.4 V; High 26.4 V; Li-ion 27.0 V |
Input
| AC input voltage range | 180-265 VAC (nominal 220-240 VAC) |
| Input frequency | 45-65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (VictronConnect) |
| Battery type selection | Normal, High, Li-ion |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
| Ignition protected | Yes |
Environmental
| Operating temperature | -20 to +60 (full rated output up to 40, derate 3 % per C above 40) |
| Humidity | Up to 100 % |
Physical
| Colour | Blue (RAL 5012) |
| Material | Cast aluminium, electronics moulded in resin |
| Cooling | Natural convection (fanless) |
| Protection category | IP67 |
| Terminals | Battery cable 1.5 m; AC cable 1.5 m with UK BS 1363 plug |
| Weight | 2.4 kg |
| Dimensions (h x w x d) | 99 x 219 x 65 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/-6-2/-6-3, EN 61000-3-2/-3-3 |
Which batteries can this charger be used with?
It charges 24 V lead-acid batteries (flooded, AGM and gel) using a 5-stage adaptive algorithm, and lithium-ion (LiFePO4) batteries using a bulk, absorption and float algorithm. Battery type is selected as Normal, High or Li-ion in the VictronConnect app.
Is the IP67 charger really waterproof?
Yes. The casing is cast aluminium and the electronics are moulded in resin, giving an IP67 rating so water, oil and dirt will not damage it. It is also shockproof and ignition protected.
How do I monitor and configure the charger?
Bluetooth is built in. The free VictronConnect app for phone, tablet or laptop lets you read voltage and current, change settings and update firmware wirelessly.
Can it recover a fully discharged battery?
Yes. It will initiate charging even if the battery has been discharged to zero volts, and it can reconnect to a fully discharged Li-ion battery that has an internal disconnect function.
What AC supply does this version need?
This is the 230 V version with a UK plug. It accepts a 180-265 VAC, 45-65 Hz supply and is fitted with a 1.5 m cable and a UK BS 1363 plug.
