Victron

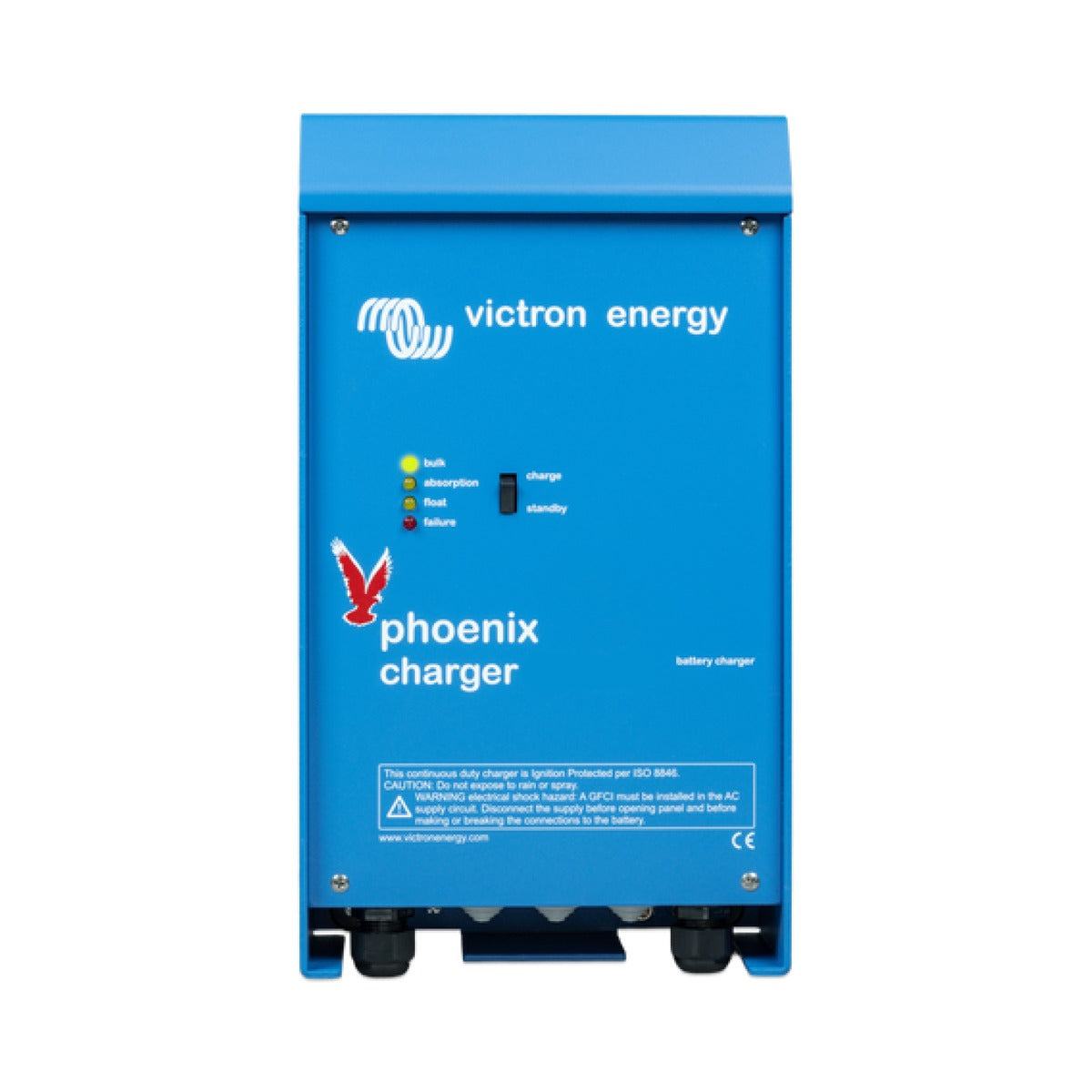

Victron Phoenix Charger 24/16
£392.40
/
Tax included.
Shipping calculated at checkout.
PCH024016001
The Victron Phoenix Charger 24/16 is a microprocessor-controlled 24V 16A battery charger with a 4-stage adaptive charge algorithm, a dedicated 4 A starter-battery output and an included battery temperature sensor. Configurable via RS-485 with VEConfigure.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Phoenix Charger is the original microprocessor-controlled mains charger from Victron Energy, built for marine and demanding leisure use where a rugged, fan-cooled unit is wanted. Its adaptive battery management automatically tunes the charge process to the way the battery is used, shortening absorption after shallow discharges to limit corrosion and extending it after deep discharges to ensure a full recharge.\n\nThis 24V 16A model charges a main 24V house bank and tops up a separate starter battery through a dedicated output rated at up to 4 A. An included temperature sensor lowers the charge voltage as the battery warms, while the storage mode reduces voltage when the battery is left connected, protecting the plates from corrosion over long lay-up periods.\n\nUnlike the later Phoenix Smart IP43 range, this charger has no Bluetooth. All charge parameters are set through the RS-485 data port using the free VEConfigure software with an MK2-USB interface, and an optional Charger Control panel adds remote status indication and output-current limiting for use on small generators or limited shore power.
PRODUCT DETAILS
- 24V 16A output with 4-stage adaptive charge algorithm
- Dedicated starter-battery output rated up to 4 A
- Battery temperature sensor included for compensated charging
- Storage mode reduces voltage during long lay-up to limit corrosion
- Universal 90 to 265 VAC input, also accepts 90 to 400 VDC
- Forced (fan) cooling in a rugged aluminium IP21 enclosure
- Configurable over RS-485 with free VEConfigure software
- Optional Charger Control panel for remote monitoring and current limiting
No exploded diagram available for this product.
No compatible transducers listed for this product.
Key specifications
| Battery voltage | 24 V |
| Charge current | 16 A |
| Number of outputs | 1+1 |
Charging
| Charge algorithm | 4-stage adaptive (bulk, absorption, float, storage) |
| Charge voltage 'absorption' | 28.8 V |
| Charge voltage 'float' | 27.6 V |
| Charge voltage 'storage' | 26.4 V |
| Recommended battery capacity | 100 to 200 Ah |
| Charge current starter battery | 4 A |
Input
| AC input voltage range | 90 to 265 VAC (90 to 400 VDC) |
| Input frequency | 45 to 65 Hz |
| Power factor | 1 |
Connectivity & control
| Communication port | RS-485 (configure with VEConfigure via MK2-USB) |
| Battery temperature sensor | Yes, included |
| Battery voltage sense | Yes |
Protection
| Protection | Output short circuit, battery reverse polarity, battery voltage too high, temperature too high |
Environmental
| Operating temperature | -20 to 60 C |
| Humidity | Max 95% (non-condensing) |
Physical
| Cooling | Forced (fan) cooling |
| Colour | Aluminium, blue RAL 5012 |
| Protection category | IP21 |
| Terminals | Battery M6 studs; AC screw-clamp 4 mm2 (AWG11) |
| Weight | 3.8 kg |
| Dimensions (h x w x d) | 350 x 200 x 108 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 |
No videos available for this product.
Does this Phoenix Charger have Bluetooth?
No. This is the original Phoenix Charger, configured through its RS-485 data port using Victron VEConfigure software and an MK2-USB interface. For built-in Bluetooth and the VictronConnect app, choose the Phoenix Smart IP43 Charger range instead.
What battery bank size suits the 24/16?
Victron recommends a battery capacity of 100 to 200 Ah for the 24V 16A model.
Can it charge a second starter battery?
Yes. In addition to the main house output it provides a dedicated starter-battery output rated at up to 4 A.
Can it run on a generator or limited shore power?
Yes. Output current can be limited from the optional Charger Control panel to reduce the power drawn from the AC supply, which is useful with small gensets or limited shore power.
Does it include a battery temperature sensor?
Yes. Every Phoenix Charger ships with a battery temperature sensor so charge voltage is automatically compensated as battery temperature changes.
