Discontinued
This product has been discontinued by Victron and is no longer available to buy.
Victron

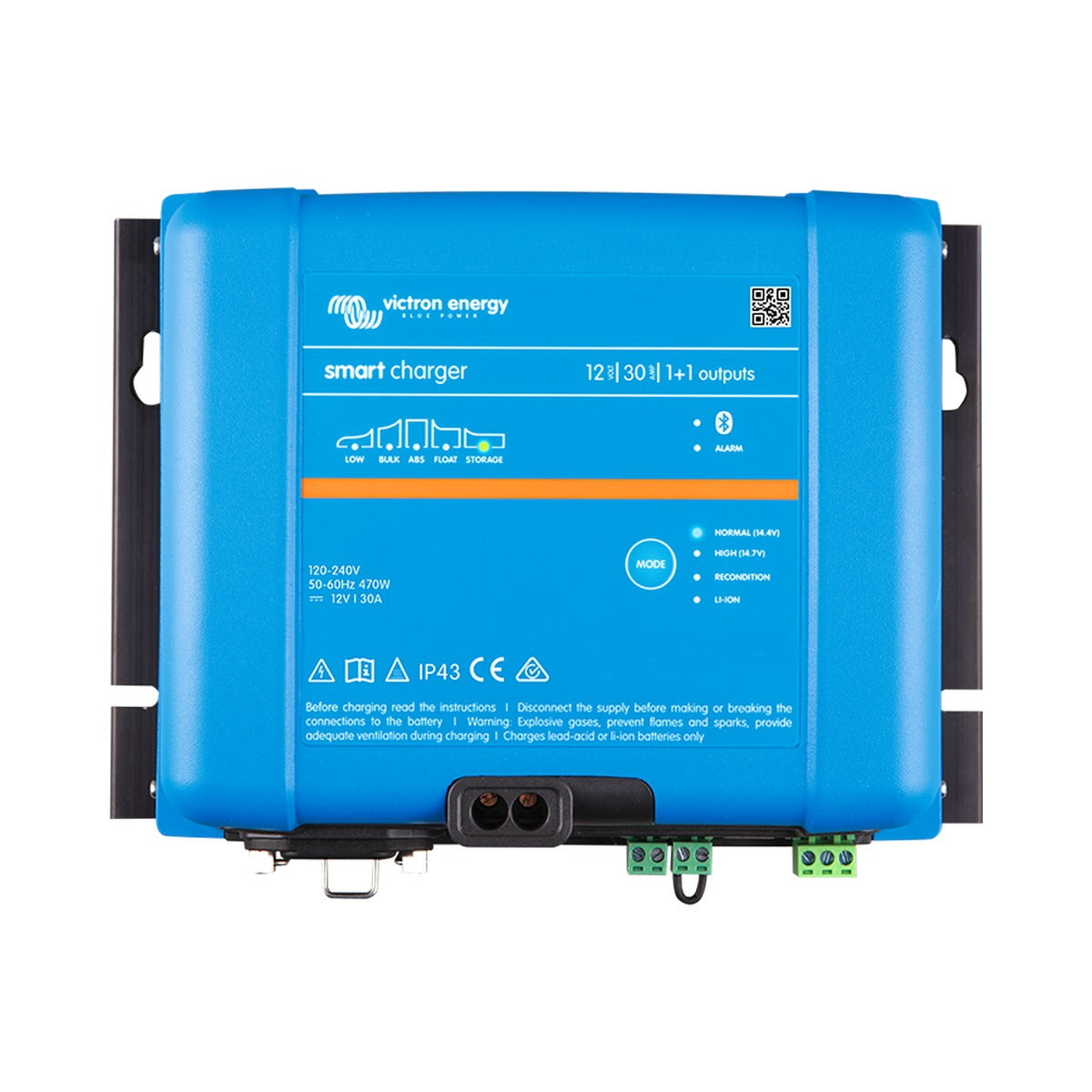

Victron Phoenix Smart IP43 Charger 12/30 (1+1)
PHC 12030-1-SM-UNIV
The Victron Phoenix Smart IP43 Charger 12/30 (1+1) is a 12V 30A mains charger with built-in Bluetooth, a 6-stage adaptive charge algorithm and lithium compatibility. The 1+1 version adds a 4 A output to keep a starter battery topped up.
Description
The Phoenix Smart IP43 Charger is Victron Energy's compact, natural-convection cooled mains charger with built-in Bluetooth. It suits marine, leisure, eMobility and off-grid systems where a quiet, efficient charger that can be set up and monitored from a phone is wanted.
This 12V 30A model uses an adaptive 6-stage charge algorithm that optimises the charge to the way the battery is used, with selectable Normal, High and Lithium profiles and a fully programmable option. A storage mode lowers the voltage when the battery is left connected to limit gassing and corrosion.
The 1+1 output configuration charges a main house bank at the full rated current and tops up a starter battery through a second output limited to about 4 A. VE.Smart Networking allows external voltage and temperature sensing and synchronised charging across several units, and a VE.Direct port links the charger to a GX device for monitoring through the VRM portal.
PRODUCT DETAILS
- 12V 30A output with built-in Bluetooth and VictronConnect app
- Adaptive 6-stage charge algorithm with Normal, High and Lithium profiles
- Two outputs: full current to the house bank plus a 4 A starter output
- Charges lithium (LiFePO4) and lead-acid batteries
- Storage mode limits gassing and corrosion during lay-up
- Natural convection cooled, silent operation, IP43 electronics
- VE.Direct port for GX devices and VRM monitoring
- VE.Smart Networking for external sensing and synchronised charging
No exploded diagram available for this product.
No compatible transducers listed for this product.
Victron Cerbo GX MK2
Victron GX Touch 50 Display
Victron GX Touch 70 Display
Victron Ekrano GX
Victron SmartShunt IP65 500A Battery Monitor
Victron SmartShunt IP65 1000A Battery Monitor
Victron Lithium Battery Smart 12.8V/50Ah
Victron Lithium Battery Smart 12.8V/100Ah
Victron Lithium Battery Smart 12.8V/160Ah
Victron Lithium Battery Smart 12.8V/180Ah
Victron Lithium Battery Smart 12.8V/200Ah
Key specifications
| Battery voltage | 12 V |
| Charge current | 30 A |
| Number of outputs | 1+1 |
| Maximum efficiency | 95 % |
Charging
| Charge algorithm | 6-stage adaptive (bulk, absorption, recondition, float, storage, refresh; 3-stage for lithium) |
| Charge voltage 'absorption' | 14.4 V (Normal mode) |
| Charge voltage 'float' | 13.8 V (Normal mode) |
| Charge voltage 'storage' | 13.2 V (Normal mode) |
| Recommended battery capacity | 150 to 300 Ah |
| Temperature compensation | -16 mV/C |
| Back current drain | <1 mA |
| Charge current starter battery | 4 A max (1+1 models only) |
Input
| AC input voltage range | 85 to 250 VAC (full power from 100 VAC, startup from 90 VAC); 90 to 375 VDC |
| Input frequency | 45 to 65 Hz |
| Power factor | 1 |
| Maximum input current setting | 3 to 10 A |
| No-load power consumption | 1 W |
Connectivity & control
| Bluetooth | Yes, built-in (-4 dBm, 2402 to 2480 MHz), VictronConnect app |
| Communication port | VE.Direct |
| Programmable relay | Yes (SPDT, 5 A up to 250 VAC / 5 A up to 28 VDC) |
| Remote on/off | Yes (2-pole terminal) |
Protection
| Protection | Battery reverse polarity (internal fuse, not user accessible), output short circuit, over temperature |
Environmental
| Operating temperature | -20 to 60 C (rated output to 40 C, derate to 20% at 60 C) |
| Humidity | Max 95% (non-condensing) |
Physical
| Colour | Aluminium, blue RAL 5012 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Terminals | Battery screw terminals 16 mm2 (AWG6); AC IEC 320 C14 inlet with retainer clip (AC cord ordered separately) |
| Weight | 2.7 kg |
| Dimensions (h x w x d) | 180 x 249 x 116 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 |
No videos available for this product.
Does this charger have Bluetooth?
Yes. The Phoenix Smart IP43 Charger has built-in Bluetooth, so you can set up, monitor and update it and configure alarms from the VictronConnect app on a phone or tablet. It can also connect by VE.Direct to a GX device such as a Cerbo GX for full system monitoring through the VRM portal.
What does the (1+1) output mean?
The 1+1 version has two outputs. The main output delivers the full rated current to your house bank, and a second output limited to about 4 A keeps a starter battery topped up.
Can it charge lithium (LiFePO4) batteries?
Yes. A dedicated lithium charge algorithm is selectable, and the charge algorithm is fully programmable over Bluetooth or VE.Direct. Charger on/off can also be driven from a lithium BMS through the remote on/off port.
Is a mains lead included?
No. The charger uses an IEC 320 C14 inlet and the AC cord with the correct country plug must be ordered separately.
Can several chargers work together?
Yes. Pairing two or more units in a VE.Smart Network enables synchronised charging, which improves charge efficiency and battery life. An external Smart Battery Sense, SmartShunt or BMV-712 can also share battery voltage and temperature with the chargers.
