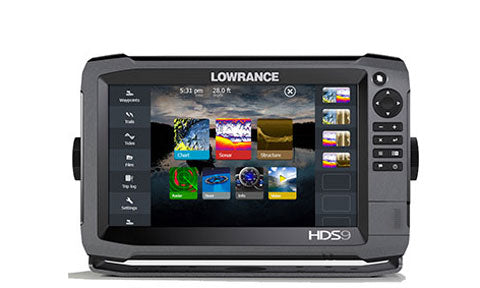

Lowrance HDS-9 Gen3 Multi -Touch Fishfinder Chartplotter no transducer
Description
The Lowrance HDS-9 Gen3 was a 9-inch multi-touch fishfinder and chartplotter featuring a brighter SolarMAX display and an enhanced processor. It offered built-in CHIRP sonar, Broadband Sounder, StructureScan HD and DownScan Imaging, a 10 Hz internal GPS antenna and integrated GoFree wireless, operated by touchscreen, keypad or both. It was supplied as a display-only unit with no transducer or chart card.
The HDS Gen3 range has been succeeded by the current Lowrance HDS LIVE and HDS PRO series. We continue to support installed Gen3 units with compatible transducers, suncovers and mounting spares.
PRODUCT DETAILS
- 9" WVGA SolarMAX colour display with multi-touch and keypad control
- Built-in CHIRP Sonar and Broadband Sounder
- StructureScan HD and DownScan Imaging support (StructureScan 3D ready)
- Internal 10 Hz GPS antenna with WAAS/EGNOS/MSAS
- Dual microSD card slots and integrated GoFree wireless
- NMEA 0183, NMEA 2000 and Ethernet networking
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp
Lowrance Airmar TM150M Transom-Mount Transducer
Lowrance B175M (20°) - Bronze 1kW Medium-CHIRP Through Hull Depth/Temperature Transducer.
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Remote Controller LR-1 (HDS LIVE, HDS Carbon)
Display
| Screen size | 9" WVGA colour TFT LCD |
| Resolution | 800 x 480 px |
| Backlighting | LED, multi-touch |
Sonar
| Sonar | CHIRP (low/mid/high) + Broadband 50/83/200 kHz + StructureScan 455/800 kHz |
| Sonar output power | 500 W RMS |
| Depth capability | 5000 ft (1524 m), transducer dependent |
Navigation
| GPS | Internal 10 Hz, WAAS/EGNOS/MSAS |
Connectivity
| Communication | NMEA 0183, NMEA 2000, Ethernet |
| Card slots | 2x microSD |
Electrical
| Supply voltage | 12 V DC (10 - 17 V DC) |
Physical
| Case size (W x H x D) | 265 x 169 x 86 mm |
General
| Warranty | 2 years |
