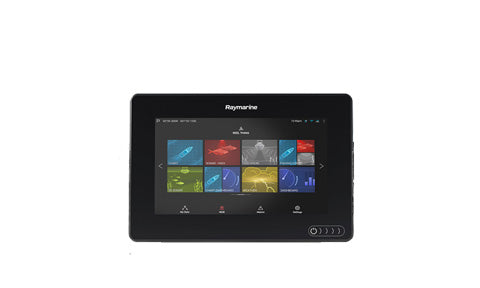

Raymarine Axiom 7 DV, 7 inch Multifunction Display
Description
The Axiom 7 DV delivers fast and fluid all-in-one navigation thanks to a quad-core processor and Raymarine's powerful LightHouse operating system. The 7 inch multi-touch display is easy to read and easy to personalise for your navigation style.
The Axiom 7 DV includes an integrated CHIRP sonar and CHIRP DownVision sonar channel, delivering photo-like images of bottom structure and fish through a 9-pin DownVision transducer connection. The CHIRP channel tracks the bottom to 274 m (900 ft) and DownVision to 183 m (600 ft).
A built-in GPS / GLONASS receiver gets you underway quickly, while standard Wi-Fi and Bluetooth connect the latest Raymarine apps for tablets and smartphones. RayNet Ethernet and NMEA 2000 networking let you grow the system with Quantum radar, CHIRP and RealVision 3D sonar modules, FLIR thermal cameras, audio, instruments and Evolution autopilot.
PRODUCT DETAILS
- Fast and fluid 7 inch multi-touch multifunction display with a quad-core processor
- Powered by the intuitive Raymarine LightHouse operating system
- Built-in dual-channel CHIRP and CHIRP DownVision sonar for photo-like images of structure and fish
- CHIRP sonar to 274 m (900 ft) and DownVision to 183 m (600 ft) via a 9-pin transducer connection
- Built-in GPS / GLONASS receiver tracks up to 28 satellites for a quick, accurate fix
- Standard Wi-Fi and Bluetooth for Raymarine mobile apps on tablets and smartphones
- RayNet Ethernet and NMEA 2000 networking for radar, sonar modules, cameras, instruments and autopilot
- Supports LightHouse, Navionics and C-MAP charts via the MicroSDXC card slot
- MFD (chartplotter)
- Trunnion bracket
- Trunnion knobs x 2
- Trunnion mount suncover
- Panel mount gasket
- Threaded studs (M5x58) x 4
- Thumb nuts (M5) x 4
- Documentation
- Power / NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
No exploded diagram available for this product.
