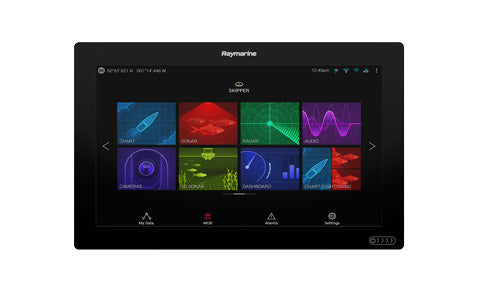

Raymarine Axiom XL 16 Glass Bridge Multifunction Display
Description
Axiom XL displays are Raymarine's flagship glass bridge chartplotters, engineered for premium helm integration on motor yachts and large vessels. At the heart of each model is a fast quad-core processor running the LightHouse operating system for a responsive, uncluttered all-in-one navigation experience.
The Axiom XL 16 uses a 15.6 inch in-plane switching (IPS) panel with Raymarine optical bonding to deliver wide viewing angles, sharp contrast and clear readability in direct sunlight. The smart, rugged all-glass front is optimised for flush or surface mounting and features a sleek buttonless design with swipe-to-power touch control, or add the RMK-10 keypad for full remote control.
As a network and video integration platform, Axiom XL provides three Ethernet ports for connecting radar, CHIRP and RealVision 3D sonar modules and additional Axiom family displays, plus FLIR thermal camera support and HDMI input so the display can serve as a remote PC or entertainment screen. It works with LightHouse, Navionics and C-MAP charts, Quantum and Cyclone radar, Evolution autopilot and YachtSense digital control.
PRODUCT DETAILS
- Premium 15.6 inch glass bridge display with in-plane switching (IPS) panel and Raymarine optical bonding
- Fast quad-core processor running the intuitive LightHouse operating system
- Buttonless all-glass front with swipe-to-power multi-touch control, optimised for flush or surface mounting
- Three PoE RayNet Ethernet ports for radar, CHIRP and RealVision 3D sonar modules and additional Axiom displays
- HDMI in and out to view a remote PC or stream the display below deck
- Connect up to four analogue or IP video cameras with built-in onboard DVR recording
- FLIR thermal camera and ClearCruise augmented reality support for enhanced awareness
- Compatible with LightHouse, Navionics and C-MAP charts, Quantum and Cyclone radar and Evolution autopilot
- MFD (chartplotter)
- Suncover (silicone)
- Rear mounting bars x 2
- Documentation
- Mounting gasket tape
- Power / Video / NMEA 0183 cable 1.5 m (4.92 ft) right-angled
- Mounting bar fixings (M5x20 pozi countersunk) x 4
- Mounting fixings: bolts (M5x35), wavy washers (M5), nuts (M5), mounting feet x 4
- DeviceNet to SeaTalk ng adaptor cable 1 m (3.28 ft)
- Optional grounding connection (screw M3x5, spring washer M3, crimp terminal M3)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
