Description

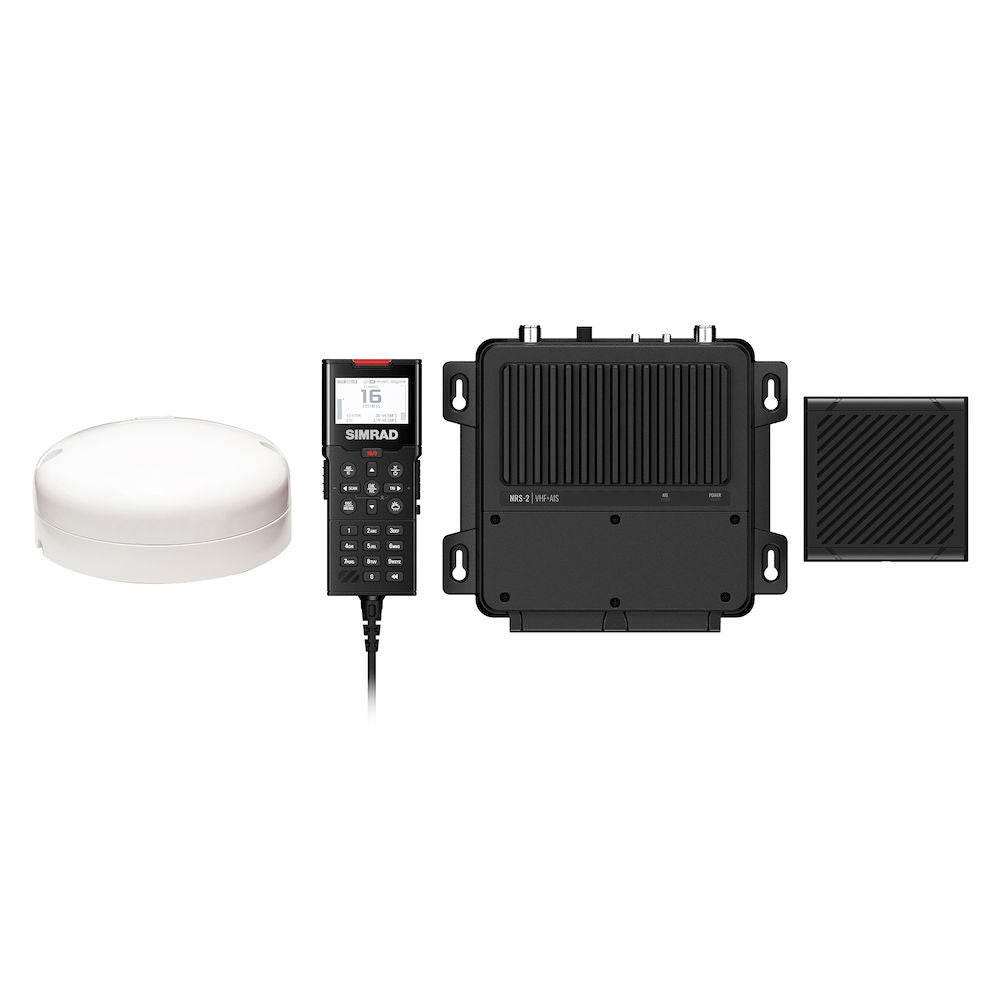

The Simrad RS100-B brings collision-avoidance awareness to the modular RS100 black-box VHF system. Built around the NRS-2 processor, it adds a built-in dual-channel AIS receiver and a Class B AIS transmitter, so nearby AIS-equipped vessels appear on your handsets or networked Simrad display while your own position and vessel details are transmitted for others to see. This package is supplied with the GPS-500 GPS antenna, which provides the position fix required for both DSC distress calls and AIS transmission.
Like the standard RS100, the system is controlled by alphanumeric wired and wireless handsets and speakers placed wherever you need them, expanding to up to four wired handsets, four wireless handsets (eight in total) and four speakers for true vessel-wide communications and intercom. Full Class D Digital Selective Calling, hailer and fog horn functions, a 60-second audio record and replay, and NMEA 2000 networking with backlight sync are all included. A separate VHF/AIS antenna is required for the AIS transmitter and is not supplied.
PRODUCT DETAILS
- AIS-equipped modular black-box VHF system built around the NRS-2 processor
- Built-in dual-channel AIS receiver and Class B AIS transmitter, see and be seen
- Supplied with the GPS-500 GPS antenna for position reporting
- Class D DSC with one-touch DISTRESS calling
- Expandable to four wired handsets, four wireless handsets and four speakers
- Intercom, hailer and fog horn with 60-second audio record and replay
- Switchable 25 W / 1 W transmit power
- NMEA 2000 and NMEA 0183 connectivity with backlight sync to Simrad displays
- NRS-2 black-box VHF and AIS Class B module
- GPS-500 GPS antenna
- Black-box connector accessory pack with wireless dipole antenna and spare fuse
- Black-box mounting kit
- Cable retainer and wire ties
- Black-box power cable (1 m)
- System user manual, quick start guide, declaration of conformity and warranty card
No exploded diagram available for this product.
No compatible transducers listed for this product.
Simrad HS100 Handset - Wired
Simrad HS100 wired handset and SP100 speaker kit for RS100/RS100-B VHF radio systems
Image coming soonSimrad HS40 DSC Wireless Handset
Lowrance, Simrad, B&G 1710 VHF antenna, 2.5 m (8 ft) ultraglass, quickfit 6dB
Lowrance, Simrad, B&G 1770 VHF antenna, 1 m (3 ft) Ultraglass, quickfit 3dB
Lowrance, Simrad, B&G 1810 VHF antenna mount, nylon heavy duty, quickfit 5m Cable
Lowrance, Simrad, B&G 1815 VHF antenna mount, stainless steel, quickfit with 5m Cable
General
| System type | Modular black-box VHF with AIS (NRS-2 processor with wired/wireless handsets and speakers) |
| Usable channels | International, USA, Canada, Weather (country specific) |
| DSC class | Class D (Global) |
Transmitter
| Output power | 25 W (high) / 1 W (low) |
AIS
| AIS receiver | Dual-channel AIS receiver |
| AIS transmitter | Class B CSTDMA transceiver (requires additional VHF/AIS antenna) |
GPS
| GPS | Internal GPS source via supplied GPS-500 antenna |
Connectivity
| Handsets supported | Up to 4 wired and 4 wireless handsets (8 total) |
| Speaker outputs | Up to 4 configurable 4 W wired speaker outputs |
| NMEA 2000 | Yes (with backlight sync) |
| NMEA 0183 | Yes, AIS generally requires 38400 baud |
Features
| Audio record and replay | 60 seconds, with 15-second skip forward/back |
| Other functions | Intercom, hailer, fog horn, MOB, navigation, station naming, channel scan, favourites, AIS silent mode |
Electrical
| Power supply | 12 V DC |
