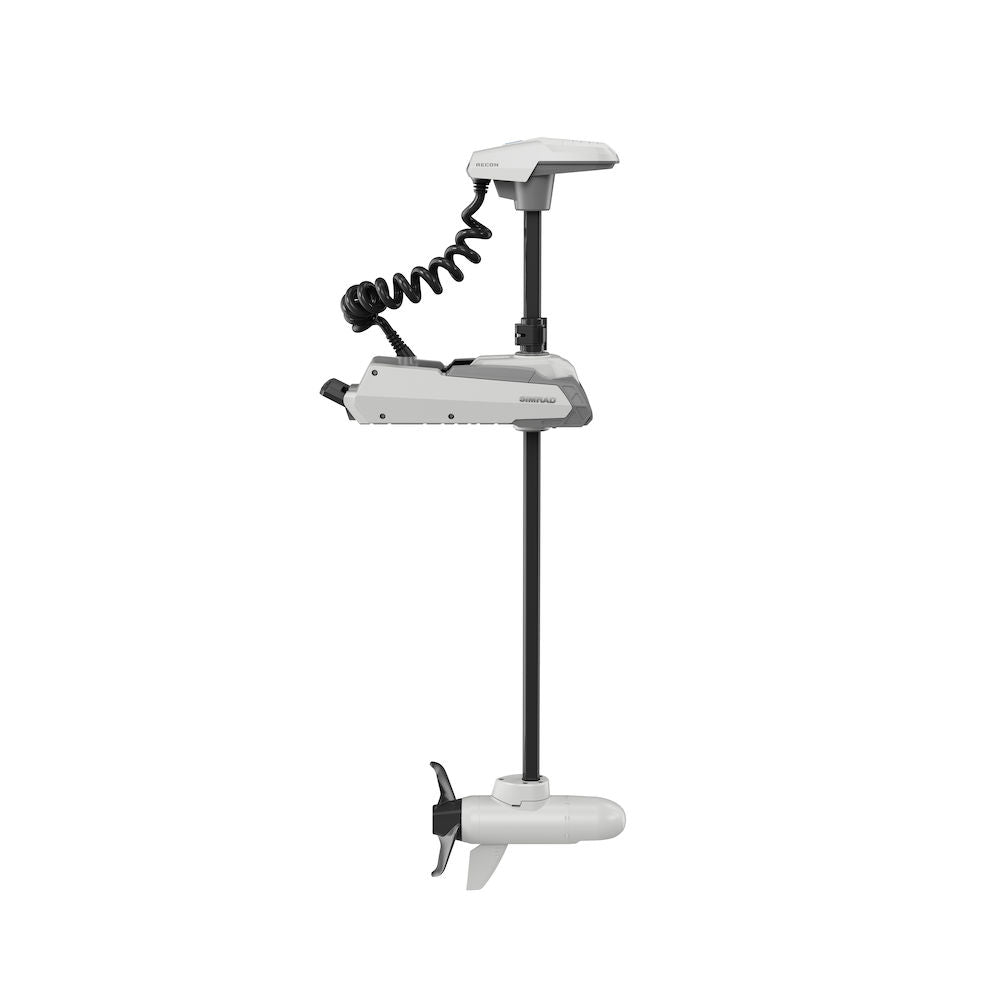

Simrad RECON Saltwater 72”
Description
The Simrad RECON Saltwater 72" trolling motor is built to battle the elements. A brushless motor paired with a stiff carbon composite shaft delivers best-in-class power and thrust, while the 2-blade weedless propeller lets you push into the hardest to reach spots with no loss of control. The long 72 inch shaft suits boats with a tall bow or significant freeboard, keeping the propeller well submerged in a chop, and the supplied sacrificial anode protects the lower unit against galvanic corrosion in salt and brackish water.
RECON delivers 90 lb of thrust on a 24 V battery system and 115 lb on a 36 V system, with a brushless drive that runs cool and efficient for long days on the water. An internal 10 Hz GPS with internal compass provides highly accurate anchor lock, holding the boat over your target spot, along with route following and heading hold. Control comes from the wearable FreeSteer joystick remote, which gives full 360 degree steering with fine 1.5 degree adjustments, or from a compatible foot pedal.
Full integration over NMEA 2000 brings effortless control to the helm of a compatible Simrad multifunction display, sharing data with chartplotters, autopilots and sonar for a fully connected system. The replaceable nose cone on saltwater models ships empty and can be upgraded with a compatible sonar nose cone where offered. Connected Simrad displays operate the motor in control-only mode. RECON is deployed and stowed manually and carries a lifetime shaft warranty.
PRODUCT DETAILS
- Brushless motor with 90 lb thrust on 24 V and 115 lb on 36 V
- 72 inch carbon composite shaft for tall bows and rougher water
- Internal 10 Hz GPS and compass for precise anchor lock and heading hold
- FreeSteer wearable joystick remote with full 360 degree control and 1.5 degree steering steps
- 2-blade weedless propeller with supplied sacrificial shaft anode for saltwater use
- Full NMEA 2000 integration with compatible Simrad MFDs, plus Bluetooth 5.2
- Replaceable nose cone, upgradeable with a compatible sonar nose cone
- Lifetime shaft warranty
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.

Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer

Simrad NSX 3009 w/ Active Imaging Transducer

Simrad NSS 4 - 10" Chartplotter Without Built-in Sonar

Simrad NSX® 3009, No Transducer

Simrad NSS16 EVO3S 16 Inch MFD

Simrad NSO EVO3S 16 Inch MFD

Simrad NSX 3012 12 Inch Touch Screen Display With Active Imaging Transducer

Simrad NSS 4 - 16" Chartplotter Without Built-in Sonar

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS 4 - 12" Chartplotter and Fishfinder

Simrad NSS 4 - 16" Chartplotter and Fishfinder

Simrad NSS12 EVO3S 12 Inch MFD

Simrad NSS 4 - 12" Chartplotter Without Built-in Sonar

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSO EVO3S 24 Inch MFD
Motor & Drive
| Motor type | Brushless |
| Maximum thrust | 90 lb (24 V) / 115 lb (36 V) |
| Propeller | 2-blade weedless |
| Saltwater protection | Propeller shaft anode included |
Electrical
| Supply voltage | 24 V and 36 V (functional 16 V to 46 V) |
| Maximum current draw | 55 A RMS |
| Fuse / breaker rating | 60 A |
Physical
| Shaft / column length | 72 in |
| Shaft material | Carbon composite |
| Deployed length | 2155.7 mm (84.87 in) |
| Weight | 19.95 kg (44 lb) |
| Mount style | Pivot, electric-steer |
Navigation & Control
| Steering | Remote, foot pedal, MFD |
| GPS | Internal; 10 Hz GLONASS, GNSS |
| Compass | Internal |
Connectivity
| Networking | NMEA 2000 |
| Wireless | Bluetooth 5.2 |
Environmental
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
