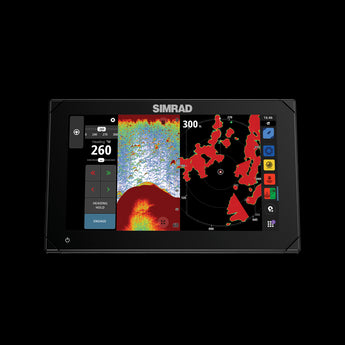

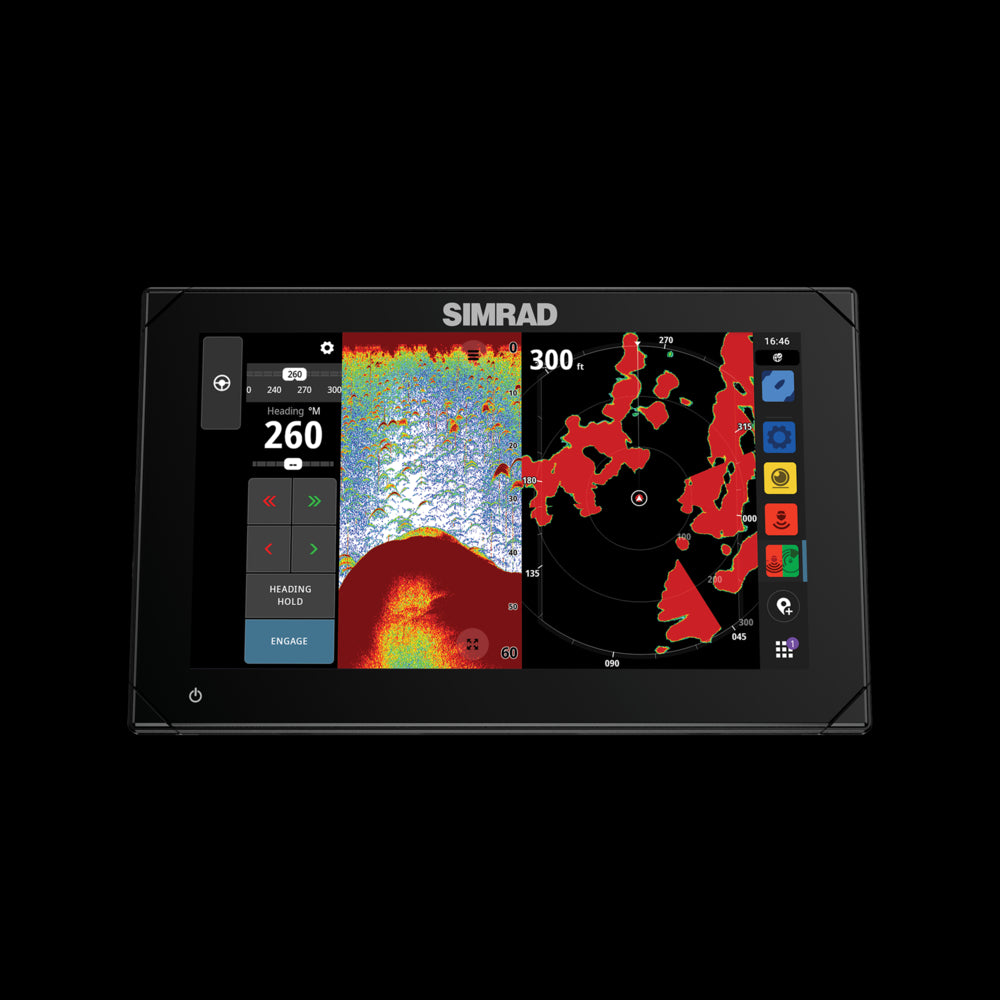

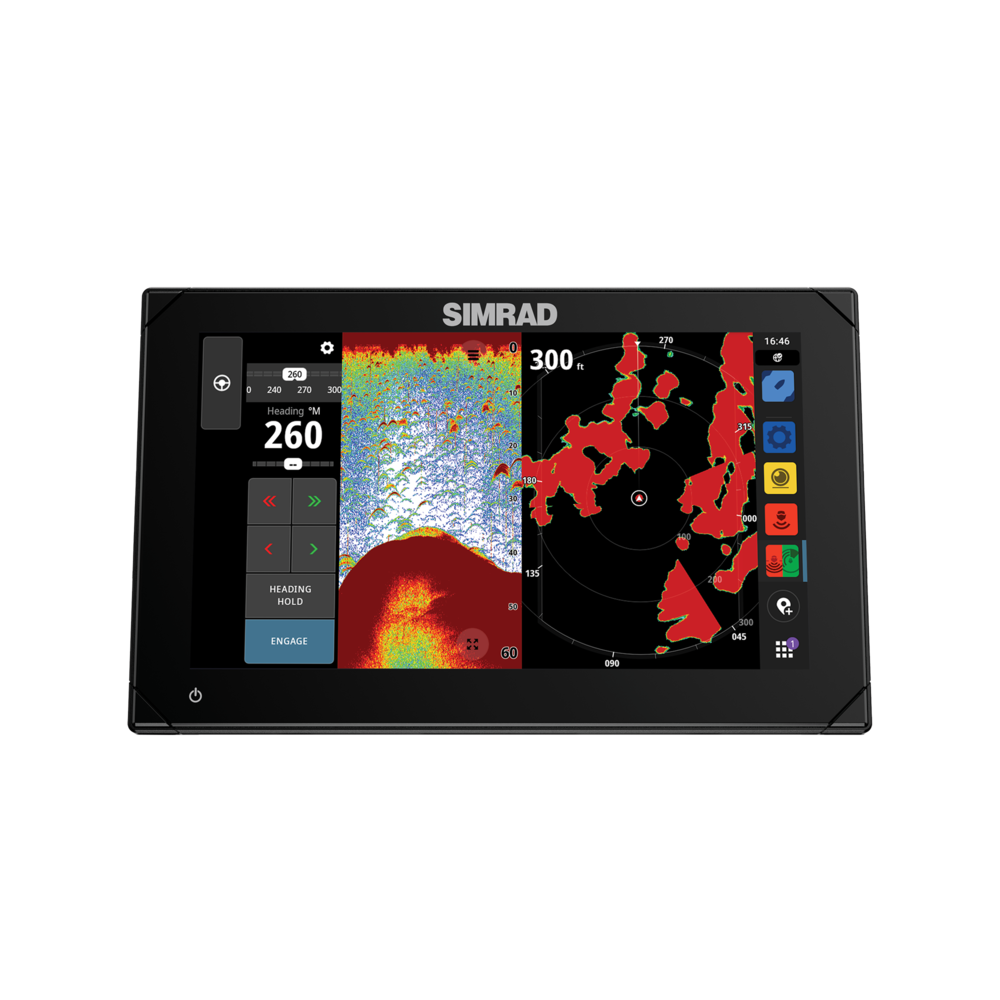

Simrad NSX® 3009, No Transducer Simrad NSX® 3009, No Transducer
Simrad NSX® 3009, No Transducer

Simrad

Simrad NSX® 3009, No Transducer

£1,489.99
Tax included. Shipping calculated at checkout.
000-15219-001
The Simrad NSX 3009 is a smart 9-inch chartplotter and fishfinder running the latest NEON operating system, with a redesigned charting experience and Simrad's fastest-ever auto-routing. Its SolarMAX IPS HD touchscreen stays clear in direct sunlight and through polarised sunglasses, with extreme viewing angles. Fully equipped for Sonar, HALO radar and autopilot integration, this version is supplied without a transducer.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Simrad NSX 3009 is a 9 inch chartplotter and fishfinder supplied as a display-only unit, ready to pair with the transducer of your choice. It introduces a redesigned, touch-first operating system with a redesigned charting experience, Simrad's fastest-ever autorouting and seamless integration for total control of your boat.

The SolarMAX IPS touchscreen stays clear in direct sunlight and through polarised lenses, while the Setup Wizard and Simrad companion app make the unit quick to set up and easy to manage. Internal high-speed GPS, Wi-Fi, Bluetooth, NMEA 2000 and Ethernet allow you to expand with Simrad sonar, HALO radar and NAC autopilot systems, and the IPX6 and IPX7 rating keeps it protected at an exposed helm.

PRODUCT DETAILS

  • Smart 9-inch chartplotter and fishfinder running the latest NEON operating system
  • SolarMAX IPS HD multi-touch screen with extreme viewing angles, readable in direct sunlight and through polarised sunglasses
  • Redesigned charting with the fastest-ever auto-routing and C-MAP DISCOVER X and REVEAL X chart support
  • Full HALO radar support and easy Simrad autopilot integration (NAC-1/NAC-2/NAC-3/NAC-D)
  • Sonar sharing between NSX displays plus single-channel CHIRP, 50/200 kHz, HDI and Active Imaging compatibility
  • Extensive third-party integration including Mercury SmartCraft Connect and VesselView, CZone, OmniSense, Dometic and Lumishore
  • Wireless connectivity with full Ethernet, USB and NMEA 2000 networking, IP camera support and Simrad App pairing
  • Setup Wizard for quick commissioning; waterproof to IPX6 and IPX7
  • NSX 3009 display unit (no transducer)
  • Dash gasket
  • Sun cover
  • Corner clip and screws kit
  • Power cable (4-pin)
  • Fuse holder and fuse
  • Plastic gimbal kit
  • Documentation pack

No exploded diagram available for this product.

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar TM150M

Lowrance, Simrad XSonic Airmar TM150M

Lowrance, Simrad XSonic Airmar TM185 HW

Lowrance, Simrad XSonic Airmar TM185 HW

Lowrance, Simrad Xsonic Airmar TM185 M

Lowrance, Simrad Xsonic Airmar TM185 M

Image coming soon

XSONIC Airmar TM165HW

Image coming soon

ActiveTarget® 2 XL

Image coming soon

Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

No spares or accessories listed for this product.

No compatible products found.

Display

Screen Size9 inches
Resolution1280 x 720 px
Screen Brightness> 1200 nits
Display TypeSolarMAX IPS, full multi-touch
Viewing Angles85 deg (top, bottom, left and right)

Electrical

Supply Voltage12 V DC (10 to 17 V DC min-max)
Maximum Power Consumption18.8 W (1360 mA at 13.8 V)
Recommended Fuse Rating3 A

Sonar

Echosounder1 port (9-pin), single-channel CHIRP, 50/200 kHz, HDI, Active Imaging

Connectivity

GPSInternal 10 Hz high-speed update, WAAS/MSAS/EGNOS/GLONASS, 32 channels
Wi-FiIEEE 802.11b/g/n
BluetoothBluetooth 4.0 with Bluetooth Classic support
Ethernet1 port (5-pin connector)
NMEA 20001 port (Micro-C), 1 LEN
USB1 port (USB-A), output 5 V DC 1.5 A
Card Reader1x microSD (SDHC) slot

General

CartographyC-MAP DISCOVER X and REVEAL X, plus selected third-party charts
Autopilot CompatibilityNAC-1, NAC-2, NAC-3, NAC-D
Waypoints / Routes / Tracks6000 waypoints, 500 routes (100 points each), 50 tracks (up to 12,000 points)

Environment

Waterproof RatingIPX6 and IPX7
Operating Temperature-15 C to +55 C

Physical

Weight1.2 kg (display only)
Dimensions (W x H x D)239 x 149 x 73 mm
Compass Safe DistanceMinimum 50 cm
What is the screen size and resolution of this NSX 3009?
It has a 9 inch SolarMAX IPS touchscreen with a resolution of 1280 x 720 pixels and brightness greater than 1200 nits.
Does this NSX 3009 include a transducer?
No. This is the display-only version, supplied without a transducer so you can choose your own. The 9-pin echosounder port supports CHIRP sonar, DownScan, SideScan, Active Imaging, TotalScan and StructureScan.
Is the NSX 3009 a touchscreen and does it have built-in GPS?
Yes. It has a full multi-touch screen and an internal 10 Hz high-speed GPS supporting WAAS, MSAS, EGNOS and GLONASS.
How does the NSX 3009 network with other equipment?
It has Wi-Fi (802.11b/g/n), Bluetooth, a NMEA 2000 port and an Ethernet port, so you can add Simrad sonar, HALO radar and NAC autopilot systems.
What is the waterproof rating and supply voltage?
The unit is rated IPX6 and IPX7 and runs on 12 V DC (10 to 17 V DC), with a recommended 3 A fuse.
What is in the box and what warranty does it carry?
The box contains the NSX 3009 display (no transducer), dash gasket, sun cover, corner clip and screws, 4-pin power cable, fuse holder and fuse, plastic gimbal kit and documentation. It is supplied with a 2 year warranty.
