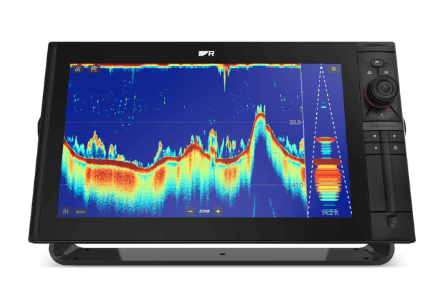

Raymarine Axiom 2 Pro 16 S with Northern Europe LightHouse Chart
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Axiom 2 Pro 16 S (E70657) brings chartplotter, sonar, radar, autopilot and video together in one fast, all-in-one 15.6″ multifunction display. A hexacore (6-core) processor and the intuitive LightHouse 4 operating system keep charts and sonar smooth and responsive, while HybridTouch gives you the best of both worlds: full touchscreen control, plus a configurable keypad for when the sea gets lively.
A built-in 100 W High CHIRP conical sonar module (for CPT-S transducers) delivers reliable depth soundings and clear underwater detail, and the bright HydroTough nano-coated 1920 x 1080 Full HD IPS display stays sunlight-readable and usable in the wet.
Use it as a standalone GPS chartplotter, or grow a complete system over dual RayNet Gigabit Ethernet and NMEA 2000, adding radar, Evolution autopilot, cameras and audio as your boat demands. Waterproof to IPx6 and IPx7 for mounting above or below decks. Supplied with pre-loaded LightHouse Northern Europe charts. Full technical details are under Specifications.
PRODUCT DETAILS
- 15.6″ HydroTough nano-coated IPS HybridTouch display (1920 x 1080 Full HD) with touchscreen plus configurable keypad
- Hexacore (6-core) processor running the LightHouse 4 operating system
- Built-in 100 W High CHIRP conical sonar (CPT-S transducer support)
- Dual RayNet Gigabit Ethernet and NMEA 2000 (DeviceNet / SeaTalk ng) networking
- Built-in Wi-Fi (2.4 and 5 GHz) and Bluetooth with Raymarine app support
- Micro HDMI video output, 64 GB internal storage and dual MicroSD card reader
- Waterproof to IPx6 and IPx7 for above or below decks installation
- Axiom 2 Pro display
- User-configurable lower keypad
- Suncover
- Mounting gasket
- M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)
- SeaTalk NG to DeviceNet adaptor cable, 1 m (3.3 ft)
- RayNet network cable, 2 m (6.6 ft)
- Mounting fixings x 4 (including M4 x 40 bolts, M4 plain washers, M4 nuts)
- Documentation
- Power/video/audio cable, 1.5 m (4.92 ft)
- LightHouse Northern Europe chart
No exploded diagram available for this product.
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine CPT-S In-Hull Transducer
Raymarine CPT-S Transom Mount Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Raymarine Straight Power Cable for Axiom2 Pro and Axiom2 XL (1.5 m)
Raymarine Right-Angled Power Cable for Axiom2 Pro and Axiom2 XL (1.5 m)
Image coming soonAxiom 2 Pro 9, 12, 16 Left Hand Bungs
Raymarine Micro HDMI (Type D) Video Out Cable 3m
Raymarine RCR-1 Micro SD Card Reader
Raymarine RCR Remote SD Card Reader and USB Socket
Raymarine GA200 GPS External Antenna
Raymarine GA150 GPS-GLONASS External Antenna
Raymarine RMK-10 System Remote Control Keypad (Portrait Only)
Raymarine RMK-10 System Remote Control Keypad (Portrait and Landscape)
Image coming soonAxiom2 Pro 16 Suncover (Silicone)
Raymarine Axiom2 Pro 16 Engraved Stainless Steel Trunnion Mount Kit
Image coming soonRaymarine Adapter Plate for Axiom 16 Pro to fit E140W/e165 Size Cutout
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Raymarine CAM300 ClearCruise Augmented Reality Pack with AR200 Sensor
Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor
Raymarine FLIR M300C Pan and Tilt Visible Light IP Camera
Raymarine AIS700 Class B Transceiver With Integrated Splitter
Raymarine Ray73 VHF Radio Integrated GPS and AIS
Raymarine i70s Multifunction Instrument Display
RNS-5 Gigabit Raynet Network Switch
Yachtsense Link Marine Cloud Router
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine LightHouse Chart (preloaded with UK & Ireland charts) on 32Gb micro SD card
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine LightHouse Chart (preloaded with Northern Europe charts) on 32Gb micro SD card
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Raymarine Magnum 4kW Pedestal including VCM100
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Power
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Current (maximum) | 5 A |
| Power consumption (max @ 12 V dc) | 38.4 Watts |
| Power consumption (max @ 24 V dc) | 37.7 Watts |
| Off-current (max @ 12 V dc) | 11 mA (0.13 Watts) |
| Off-current (max @ 24 V dc) | 18 mA (0.43 Watts) |
| Fuse requirements | Inline fuse 15 A, or thermal breaker 15 A |
Environmental
| Operating temperature range | -25 °C (-13 °F) to +55 °C (131 °F) |
| Storage temperature range | -30 °C (-22 °F) to +70 °C (158 °F) |
| Humidity | Up to 93% @ 40 °C (104 °F) |
| Water ingress protection | IPx6 and IPx7 |
| Installation location | Above or below decks |
Display
| Screen size (diagonal) | 15.6″ |
| Display type | IPS (In-Plane Switching) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect ratio | 16:9 |
| Colour depth | 24-bit |
| Brightness | 1200 nits / 1200 cd/m2 |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Simultaneous touches | 1 to 16 |
Physical
| Net (unboxed) weight | 5.98 kg |
| Gross (boxed) weight | 9.02 kg |
| Dimensions (surface/flush mounted) | Height 258 mm x Width 452.02 mm x Depth incl. cables 240.4 mm |
| Dimensions (trunnion mounted) | Height 281.2 mm x Width 482.5 mm x Depth incl. cables 241.4 mm (trunnion bracket A80722 sold separately) |
| Internal storage | 64 GB solid state |
| External storage | Dual slot MicroSDXC card reader |
Connections
| Ethernet | RayNet (10/100/1,000 Mbits/s) x 2 |
| NMEA 2000 | DeviceNet connector (Load Equivalency Number = 1) |
| NMEA 0183 | NMEA 0183 to NMEA 2000 converter required (part number A80721) |
| HDMI | Micro HDMI (Type D) (v1.4b) output connector |
| USB | USB Micro B (for external card reader connection) |
| Analogue video in | Composite BNC connectors via Power/Video/Audio cable |
| Audio out | Left and Right RCA connectors via Power/Video/Audio cable |
| Wi-Fi | Multiband 2.4 GHz and 5 GHz, 802.11b/g/n |
| Bluetooth | v4.0 (combined with Wi-Fi module) |
| GPS antenna | TNC type connector (optional external antenna) |
| Transducer | 25-pin RV / RVM connector (adaptor cable required for CPT-S only transducers) |
GNSS receiver
| GNSS compatibility | GPS, GLONASS, Beidou, Galileo |
| Channels | Track up to 28 satellites simultaneously |
| Position accuracy | Without SBAS: <=15 m 95% of the time; with SBAS: <=5 m 95% of the time |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Refresh rate | 10 Hz (10 times per second) |
| Cold start (Time To First Fix) | <2 minutes |
| Antenna | Internal antenna, optional external antenna connection |
| Geodetic datum | WGS-84 (alternatives can be selected on the display) |
| Operating frequency | 1574 MHz to 1605 MHz |
Sonar (S variant)
| Sonar | 100 W Sonar (conical beam) CHIRP channel |
| Range | 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions |
Conformance
| Conformance / approvals | Radio Equipment Directive 2014/53/EU; EN 60945:2002; FCC Part 15C and Part 15E; ISED ICES-003; NMEA 2000 certified |
| Product markings | UKCA, CE, FCC, ISED, Japan, Australian Tick, Brazil Anatel, WEEE |
