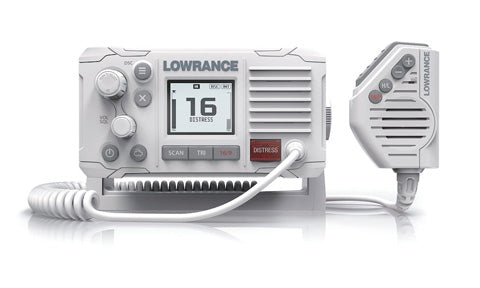

Lowrance Link-6 Fixed Mount DSC VHF Radio White
Description
The Lowrance Link-6 White is the white-finished version of Lowrance's dependable fixed-mount DSC VHF radio, styled to blend with light-coloured helms and consoles. Simple rotary and keypad controls and a removable four-key hand microphone make it easy to operate, and the front-mountable mechanical design keeps installation straightforward where space behind the dash is limited.
With no internal GPS of its own, the Link-6 White is built to draw a position feed from a connected chartplotter or external GPS over NMEA 0183, so a DISTRESS call can carry your identity and location. That link also lets the radio exchange DSC data with a compatible Lowrance display, so the two work as one system at the helm.
It suits a boat already fitted with a Lowrance HDS, Elite FS or Hook plotter, and can be gimbal-bracket or flush mounted to match the install, with a flush mount kit supplied.
PRODUCT DETAILS
- Class D DSC fixed-mount marine VHF radio meeting Global DSC Class D standards
- White finish to match light helm and console installations
- Choice of 25 W (high) or 1 W (low) transmit power
- Waterproof and submersible to IPx7
- Removable four-key hand microphone with built-in speaker, front or rear mountable
- Dedicated CH16/9 distress key, Tri-watch and multiple scan modes
- DISTRESS button transmits MMSI and position until acknowledged
- Contacts list storing up to 50 vessel names with MMSI numbers
- NMEA 0183 connectivity for GPS position from an external source
- Bracket (gimbal) or flush mount installation, flush mount kit included
- Link-6 VHF radio (white) with hand microphone
- Bracket for gimbal mounting
- Gasket for recessed (flush) mounting
- Knobs for bracket
- Mounting screw hole covers
- Bulkhead mount for hand microphone
- 8 A (3 AG) spare fuse
- Stainless steel mounting screws (6 x 3.5 x 20 mm and 4 x 4 x 25 mm)
- Documents: user manual, warranty card and mounting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 10. No transducer
Lowrance HDS PRO 16 with Active Imaging™ HD
Lowrance HDS PRO 16. No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-7 Live 3-in-1 Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS-9 Live 3-in-1 Transducer
Lowrance HDS-12 Live No Transducer
Lowrance HDS-12 Live 3-in-1 Transducer
Lowrance HDS-16 Live No Transducer
Lowrance HDS-16 Live 3-in-1 Transducer
Lowrance Elite FS 7 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 9 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 9 No Transducer
Lowrance Hook Reveal-5 83-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-5 Splitshot Icemachine Chartplotter Fishfinder
Lowrance Hook Reveal-7 50-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-7 83-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-7 Tripleshot Chartplotter Fishfinder
Lowrance Hook Reveal-7 Splitshot Icemachine Chartplotter Fishfinder
Lowrance Hook Reveal-9 50-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-9 Tripleshot Chartplotter Fishfinder
General
| DSC Class | Class D (Global) with dual receiver (individual CH70) |
| Usable Channels | International, USA, Canada, Weather (country specific) |
| Modes | 16K0G3E (FM) / 16K0G2B (DSC) |
Transmitter
| Output Power | 25 W (high) / 1 W (low), switchable |
| Frequency Range | 156.025 - 157.425 MHz |
| Frequency Error | within +/- 1.5 KHz |
| Transmitter Protection | Open / short circuit of antenna |
Receiver
| Frequency Range | 156.050 - 163.275 MHz |
| Channel Spacing | 25 KHz |
| 12dB SINAD Sensitivity | 0.25 microV (distant) / 0.8 microV (local) |
| Adjacent Channel Selectivity | more than 70 dB |
| Audio Output Power | 2 W (8 ohm) / 4 W (4 ohm external speaker) |
GPS
| Built-in GPS Receiver | No (position from external GPS source via NMEA 0183) |
Electrical
| Power Supply | 12 V DC battery system (negative ground) |
| Nominal Operating Voltage | +13.6 V DC |
| Current Drain (Transmit) | 6 A or less @ 25 W / 1.5 A @ 1 W (12 V DC) |
| Current Drain (Receive) | Less than 450 mA in standby |
| Replacement Fuse | 8 A, glass type 3 AG, 32 mm |
Connectivity
| NMEA 2000 | No |
| NMEA 0183 | Yes, input RMC/GGA/GLL/GNS; output DSC/DSE |
| VHF Antenna Connector | SO-239 (50 ohm) |
Audio
| External Speaker | Yes - 4 W |
| Handset Microphone | Removable 4-key hand mic with built-in speaker |
Display
| LCD Display | FSTN monochrome, 42 x 34 mm viewing area |
| Contrast and Backlight | Adjustable contrast and keypad backlight |
Environment
| Waterproof Rating | IPx7 (waterproof and submersible) |
| Operating Temperature | -20 C to +55 C |
Physical
| Dimensions (W x H x D) | 166.7 x 89.2 x 161.4 mm (without bracket) |
| Weight | 1.18 kg |
| Compass Safe Distance | 0.5 m |
| Mounting | Bracket (gimbal) or flush mount; flush mount kit included |
