Simrad RS100 Marine VHF System
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad RS100 takes marine VHF beyond a single helm. Built around the NRS-1 black-box processor, it is controlled by alphanumeric handsets and speakers placed where you need them, so you can talk and listen from the flybridge, cockpit or below deck. This standard package includes the NRS-1 module, one HS100 wired handset and one SP100 speaker, and grows to support up to four wired handsets, four wireless handsets (eight handsets in total) and four configurable speakers for true vessel-wide communications and intercom.
Full Class D Digital Selective Calling lets you send a one-touch distress alert and make direct digital calls, while an internal GPS processor accepts a GPS antenna for accurate position reporting. Hailer and fog horn functions, a 60-second audio record and replay so you never miss an important call, station naming, favourites and channel scanning all come as standard. Backlight synchronisation across a NMEA 2000 network keeps the system in step with your Simrad displays at night.
PRODUCT DETAILS
- Modular black-box VHF system built around the NRS-1 processor

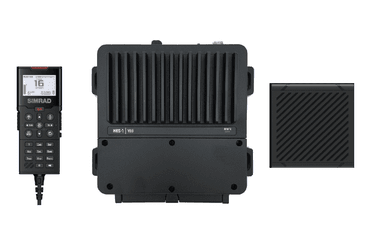

- Package includes NRS-1 module, one HS100 wired handset and one SP100 speaker
- Expandable to four wired handsets, four wireless handsets and four speakers
- Class D DSC with one-touch DISTRESS calling and built-in GPS processor for an external GPS antenna
- Intercom, hailer and fog horn functions for vessel-wide communication
- 60-second audio record and replay so you never miss a call
- Switchable 25 W / 1 W transmit power
- NMEA 2000 and NMEA 0183 connectivity with backlight sync to Simrad displays
- NRS-1 black-box VHF radio module
- HS100 wired handset with CR100 mounting cradle and 5 m cable
- SP100 wired speaker with mounting box and bezels
- Black-box connector accessory pack with wireless dipole antenna and spare fuse
- Black-box, handset and speaker mounting kits
- Cable retainer and wire ties
- Black-box power cable (1 m)
- System user manual, quick start guide, declaration of conformity and warranty card
No exploded diagram available for this product.
No compatible transducers listed for this product.
Simrad HS100 wired handset and SP100 speaker kit for RS100/RS100-B VHF radio systems
Image coming soonSimrad HS40 DSC Wireless Handset
Lowrance, Simrad, B&G 1710 VHF antenna, 2.5 m (8 ft) ultraglass, quickfit 6dB
Lowrance, Simrad, B&G 1770 VHF antenna, 1 m (3 ft) Ultraglass, quickfit 3dB
Lowrance, Simrad, B&G 1810 VHF antenna mount, nylon heavy duty, quickfit 5m Cable
Lowrance, Simrad, B&G 1815 VHF antenna mount, stainless steel, quickfit with 5m Cable
Lowrance 1720 VHF antenna, 1.1 m (3 ft) stainless masthead whip with bracket
Lowrance, Simrad, B&G VHF mast cable 30 m (98 ft) for 1720 antenna
General
| System type | Modular black-box VHF (NRS-1 processor with wired/wireless handsets and speakers) |
| Usable channels | International, USA, Canada, Weather (country specific) |
| DSC class | Class D (Global) |
Transmitter
| Output power | 25 W (high) / 1 W (low) |
GPS
| GPS | Built-in GPS processor; requires external GPS antenna, or networked NMEA 2000 / NMEA 0183 GPS |
Connectivity
| Handsets supported | Up to 4 wired and 4 wireless handsets (8 total) |
| Speaker outputs | Up to 4 configurable 4 W wired speaker outputs |
| NMEA 2000 | Yes (with backlight sync) |
| NMEA 0183 | Yes, selectable 38400 or 4800 baud |
Features
| Audio record and replay | 60 seconds, with 15-second skip forward/back |
| Other functions | Intercom, hailer, fog horn, MOB, navigation, station naming, channel scan, favourites |
Electrical
| Power supply | 12 V DC |
Physical
| Weight (system, packaged) | 4.05 kg |
