Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Lowrance NAC-1 Outboard Hydraulic Pilot Pack is a complete, ready-to-install autopilot solution for hydraulic-steered outboard and sterndrive boats up to nine metres (30 feet) in length. At its heart is the NAC-1 autopilot computer, which uses Continuum Steering technology and Virtual Rudder Feedback to deliver reliable steering without the need to fit a separate rudder feedback unit.
What's in the pack

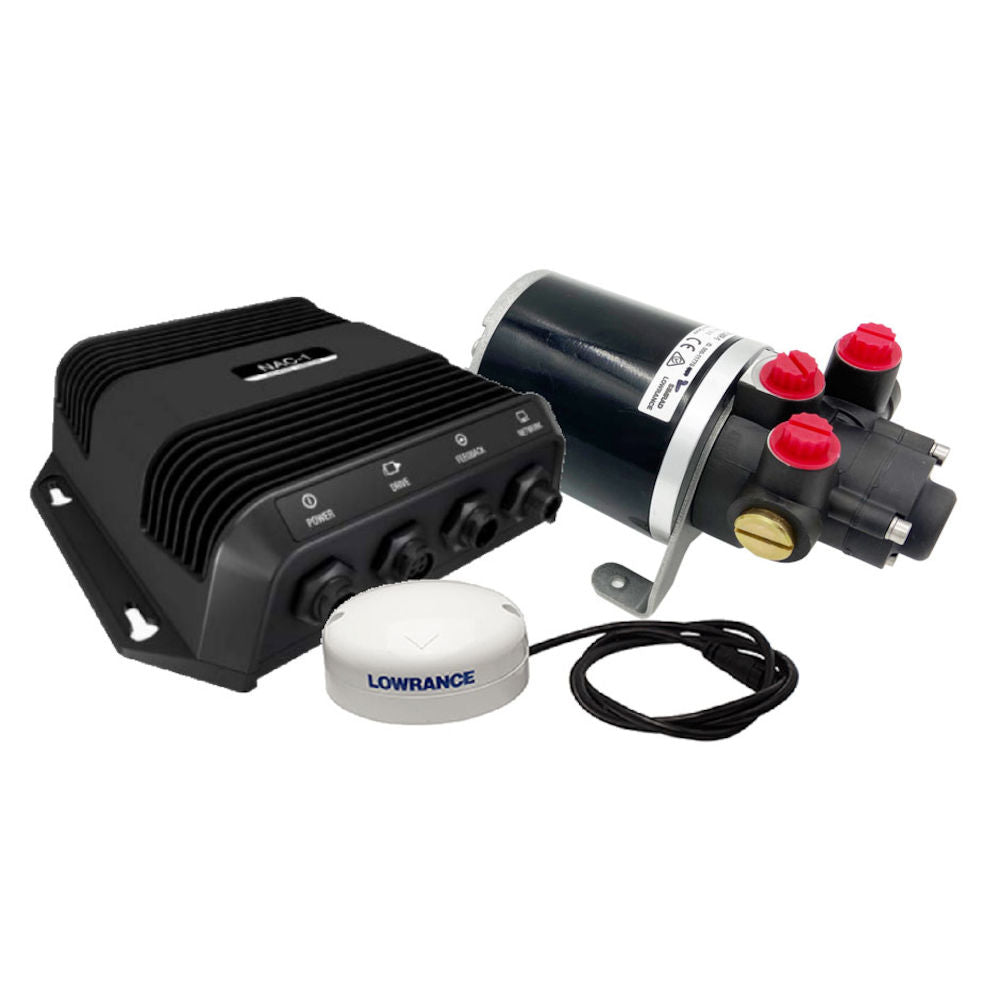

The pack pairs the NAC-1 computer with a high-efficiency, super-quiet 0.8 L/min reversible PUMP-1 hydraulic gear pump, the Point-1AP combined heading sensor and GPS antenna, a dash-mount Auto/Standby button for one-touch engagement, an ORB hydraulic fitting kit and a full NMEA 2000 network kit.
Easy to install and use
NAC-1 plug-and-socket connectors mean no screw terminals or wire stripping, and industry-standard NMEA 2000 networking allows the heading sensor, rudder feedback and multifunction display to be located anywhere on board. Once installed, the system can steer to Heading, Course or Route and run automatic turn patterns, with a compatible Lowrance display acting as the controller.
PRODUCT DETAILS
- Complete Outboard Pilot hydraulic autopilot pack for hydraulic-steered outboards up to 9 m (30 ft)
- Includes NAC-1 autopilot computer, PUMP-1 hydraulic pump, Point-1AP heading/GPS sensor and Auto/Standby button
- Continuum Steering with Virtual Rudder Feedback removes the need for a separate rudder feedback unit
- Steer to Heading, Course or Route with automatic turn patterns
- High-efficiency, quiet 0.8 L/min reversible hydraulic gear pump
- NAC-1 plug-and-socket connectors, no screw terminals or wire stripping
- NMEA 2000 networking to heading sensors, rudder feedback and multifunction displays
- ORB fitting kit suits SeaStar, BayStar, Hynautic and other common steering rams
- NAC-1 Autopilot Computer
- PUMP-1 reversible hydraulic pump (0.8 L/min) for Outboard Pilot
- Point-1AP heading and GPS sensor
- Auto/Standby button (metal, dash mount)
- Autopilot pump fitting kit for ORB steering system
- NMEA 2000 Micro-C low-loss 4-way joiner
- TR-120-KIT network terminator kit
- NMEA 2000 network extension cables (0.6 m, 4.5 m and 0.9 m)
- Micro-C power cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 10. No transducer
Lowrance HDS PRO 16 with Active Imaging™ HD
Lowrance HDS PRO 16. No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-7 Live 3-in-1 Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS-9 Live 3-in-1 Transducer
Lowrance HDS-12 Live No Transducer
Lowrance HDS-12 Live 3-in-1 Transducer
Lowrance HDS-16 Live No Transducer
Lowrance HDS-16 Live 3-in-1 Transducer
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 7 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 9 No Transducer
Lowrance Elite FS 9 Active Imaging 3-in-1 Transducer
Lowrance Point-1 GPS Glonass With Electronic Compass
General
| Pack type | Outboard Pilot hydraulic autopilot pack (hydraulic-steered outboards) |
| Recommended boat length | Up to 9 m (30 ft) |
| Steering technology | Continuum Steering with Virtual Rudder Feedback |
| Warranty | 2 years |
NAC-1 Autopilot Computer
| Drive output | 12 V DC reversible motor control, 8 A continuous, 16 A peak (1 s) |
| Rudder sensor support | Virtual Rudder Feedback (VRF), 0-5 V, RF25 |
| NMEA 2000 connectivity | 1x CAN Micro-C port, 3 LEN |
| Supply voltage | 9-16 V DC |
| Power consumption | 140 mA + drive unit load |
| Recommended fuse rating | 20 A |
| Operating temperature | -25°C to 55°C (-13°F to 131°F) |
| Protection | IPX5 (splashproof) |
| Dimensions (W x H x D) | 204 x 190 x 57 mm (8.03 x 7.5 x 2.24 in) |
| Weight | 0.6 kg (1.3 lbs) |
PUMP-1 Hydraulic Pump
| Type | Reversible hydraulic gear pump |
| Flow rate | 0.8 L/min at 24 bar (350 psi) |
| Load | 5 A at 8 bar (116 psi), 7 A at 24 bar (350 psi) |
| Hydraulic thread size | ORB-5 |
| Operating temperature | -15°C to 75°C (5°F to 167°F) |
| Protection | IPX5 (splashproof) |
| Weight | 2.2 kg (4.9 lbs) |
Point-1AP Compass/GPS
| Heading accuracy | +/- 3° |
| Horizontal accuracy | 3 m (9.8 ft) |
| Supply/load | 9-16 V DC, < 100 mA at 12 V DC |
| Protection | IPX7 (watertight) |
| Weight | 0.14 kg (0.31 lbs) |
Compatible Steering Systems
| ORB fitting kit | Teleflex SeaStar (HC5345/47/48/58), Teleflex BayStar (HC4600/45/47/48/58), Hynautic K6, plus Vetus/Uflex/Lecomble & Schmitt rams |
