Raymarine Axiom 2 Pro 9 RVM with Northern Europe LightHouse Chart
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

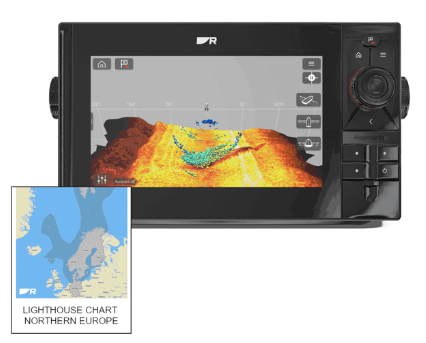

The Raymarine Axiom 2 Pro 9 RVM (E70654) brings chartplotter, sonar, radar, autopilot and video together in one fast, all-in-one 9.0″ multifunction display. A hexacore (6-core) processor and the intuitive LightHouse 4 operating system keep charts and sonar smooth and responsive, while HybridTouch gives you the best of both worlds: full touchscreen control, plus a configurable keypad for when the sea gets lively.
A built-in RealVision Max 3D and 1 kW CHIRP sonar module delivers improved ping rates and tighter beamwidths for sharper images, detailed wrecks and distinct fish targets, and works with RealVision Max, RealVision 3D and CPT-S transducers. The bright HydroTough nano-coated 1280 x 720 HD IPS display stays sunlight-readable and usable in the wet.
Use it as a standalone GPS chartplotter, or grow a complete system over dual RayNet Gigabit Ethernet and NMEA 2000, adding radar, Evolution autopilot, cameras and audio as your boat demands. Waterproof to IPx6 and IPx7 for mounting above or below decks. Supplied with pre-loaded LightHouse Northern Europe charts. Full technical details are under Specifications.
PRODUCT DETAILS
- 9.0″ HydroTough nano-coated IPS HybridTouch display (1280 x 720 HD) with touchscreen plus configurable keypad
- Hexacore (6-core) processor running the LightHouse 4 operating system
- Built-in RealVision Max 3D with 1 kW CHIRP sonar (RealVision Max, RealVision 3D and CPT-S transducer support)
- Dual RayNet Gigabit Ethernet and NMEA 2000 (DeviceNet / SeaTalk ng) networking
- Built-in Wi-Fi (2.4 and 5 GHz) and Bluetooth with Raymarine app support
- Micro HDMI video output, 64 GB internal storage and dual MicroSD card reader
- Waterproof to IPx6 and IPx7 for above or below decks installation
- Axiom 2 Pro display
- User-configurable lower keypad
- Suncover
- Mounting gasket
- Trunnion mounting bracket
- Trunnion knobs
- M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)
- SeaTalk NG to DeviceNet adaptor cable, 1 m (3.3 ft)
- RayNet network cable, 2 m (6.6 ft)
- Mounting fixings x 4 (including M4 x 40 bolts, M4 plain washers, M4 nuts)
- Documentation
- Power/video/audio cable, 1.5 m (4.92 ft)
- LightHouse Northern Europe chart
No exploded diagram available for this product.
Raymarine RVM-100 RealVision MAX 3D Transom Mount Transducer
Raymarine RVM-400 RealVision MAX 3D Through Hull Transducer
Raymarine RVM-412 RealVision MAX 3D Through Hull Transducer
Raymarine RVM-420 RealVision MAX 3D Through Hull Transducer
Raymarine RV-100 RealVision 3D Transom Mount Transducer
Raymarine RV-200 RealVision 3D Through Hull Transducer
Raymarine RV-212 RealVision 3D Through Hull Transducer
Raymarine RV-220 RealVision 3D Through Hull Transducer
Raymarine RV-300 RealVision 3D Through Hull Transducer
Raymarine RV-312 RealVision 3D Through Hull Transducer
Raymarine RV-320 RealVision 3D Through Hull Transducer
Raymarine RV-400 RealVision 3D Through Hull Transducer
Raymarine RV-412 RealVision 3D Through Hull Transducer
Raymarine RV-420 RealVision 3D Through Hull Transducer
Raymarine CPT-200 SideVision Transom Mount Transducer
Raymarine CPT-110 DownVision Through Hull Transducer
Raymarine CPT-120 DownVision Through Hull Transducer
Raymarine CPT-100DVS DownVision Transom Mount Transducer
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine CPT-S In-Hull Transducer
Raymarine CPT-S Transom Mount Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Image coming soonRaymarine RVM-412P RealVision MAX 3D Through Hull Transducer
Image coming soonRaymarine RVM-412S RealVision MAX 3D Through Hull Transducer
Image coming soonRaymarine RVM-420P RealVision MAX 3D Through Hull Transducer
Image coming soonRaymarine RVM-420S RealVision MAX 3D Through Hull Transducer
Raymarine RV-212P RealVision 3D Through Hull Transducer
Raymarine RV-212S RealVision 3D Through Hull Transducer
Raymarine RV-220P RealVision 3D Through Hull Transducer
Raymarine RV-220S RealVision 3D Through Hull Transducer
Raymarine RV-312P RealVision 3D Through Hull Transducer
Raymarine RV-312S RealVision 3D Through Hull Transducer
Raymarine RV-320P RealVision 3D Through Hull Transducer
Raymarine RV-320S RealVision 3D Through Hull Transducer
Raymarine RV-412P RealVision 3D Through Hull Transducer
Raymarine RV-412S RealVision 3D Through Hull Transducer
Raymarine RV-420P RealVision 3D Through Hull Transducer
Raymarine RV-420S RealVision 3D Through Hull Transducer
Raymarine B265LH 1kW Depth Temp Bronze Through Hull CHIRP Low-High Transducer
Raymarine B265LM 1kW Depth Temp Bronze Through Hull CHIRP Low-Medium Transducer
Raymarine M265LH 1kW Depth In Hull CHIRP Low-High Transducer with Mounting Kit
Raymarine TM265LH 1kW Depth Transom Mount CHIRP Low-High Transducer
Raymarine B765LH 600W Depth Temp Bronze Through Hull CHIRP Low-High Transducer
Raymarine B765LM 600W Depth Temp Bronze Through Hull CHIRP Low-Medium Transducer
Raymarine M265LM 1kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit
Raymarine TM265LM 1kW Depth Transom Mount CHIRP Low-Medium Transducer
Raymarine Straight Power Cable for Axiom2 Pro and Axiom2 XL (1.5 m)
Raymarine Right-Angled Power Cable for Axiom2 Pro and Axiom2 XL (1.5 m)
Image coming soonAxiom 2 Pro 9, 12, 16 Left Hand Bungs
Raymarine Micro HDMI (Type D) Video Out Cable 3m
Raymarine RCR-1 Micro SD Card Reader
Raymarine RCR Remote SD Card Reader and USB Socket
Raymarine GA200 GPS External Antenna
Raymarine GA150 GPS-GLONASS External Antenna
Raymarine RMK-10 System Remote Control Keypad (Portrait Only)
Raymarine RMK-10 System Remote Control Keypad (Portrait and Landscape)
Image coming soonAxiom2 Pro 9 Suncover (Silicone)
Raymarine eS9 Trunnion Kit for 9 Inch eS-Series MFDs
Raymarine Adapter Plate for Axiom 9 Pro to fit E90W Size Cutout
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Raymarine CAM300 ClearCruise Augmented Reality Pack with AR200 Sensor
Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor
Raymarine FLIR M300C Pan and Tilt Visible Light IP Camera
Raymarine AIS700 Class B Transceiver With Integrated Splitter
Raymarine Ray73 VHF Radio Integrated GPS and AIS
Raymarine i70s Multifunction Instrument Display
RNS-5 Gigabit Raynet Network Switch
Yachtsense Link Marine Cloud Router
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine LightHouse Chart (preloaded with UK & Ireland charts) on 32Gb micro SD card
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine LightHouse Chart (preloaded with Northern Europe charts) on 32Gb micro SD card
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Raymarine Magnum 4kW Pedestal including VCM100
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Power
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Current (maximum) | 5 A |
| Power consumption (max @ 12 V dc) | 44.4 Watts |
| Power consumption (max @ 24 V dc) | 40.9 Watts |
| Off-current (max @ 12 V dc) | 11 mA (0.13 Watts) |
| Off-current (max @ 24 V dc) | 18 mA (0.43 Watts) |
| Fuse requirements | Inline fuse 15 A, or thermal breaker 15 A |
Environmental
| Operating temperature range | -25 °C (-13 °F) to +55 °C (131 °F) |
| Storage temperature range | -30 °C (-22 °F) to +70 °C (158 °F) |
| Humidity | Up to 93% @ 40 °C (104 °F) |
| Water ingress protection | IPx6 and IPx7 |
| Installation location | Above or below decks |
Display
| Screen size (diagonal) | 9.0″ |
| Display type | IPS (In-Plane Switching) |
| Resolution | 1280 x 720 (HD) |
| Aspect ratio | 16:9 |
| Colour depth | 24-bit |
| Brightness | 1300 nits / 1300 cd/m2 |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Simultaneous touches | 1 to 16 |
Physical
| Net (unboxed) weight | 2.98 kg |
| Gross (boxed) weight | 5.16 kg |
| Dimensions (surface/flush mounted) | Height 173.79 mm x Width 299.32 mm x Depth incl. cables 234.9 mm |
| Dimensions (trunnion mounted) | Height 186.2 mm x Width 329.5 mm x Depth incl. cables 234.9 mm |
| Internal storage | 64 GB solid state |
| External storage | Dual slot MicroSDXC card reader |
Connections
| Ethernet | RayNet (10/100/1,000 Mbits/s) x 2 |
| NMEA 2000 | DeviceNet connector (Load Equivalency Number = 1) |
| NMEA 0183 | NMEA 0183 to NMEA 2000 converter required (part number A80721) |
| HDMI | Micro HDMI (Type D) (v1.4b) output connector |
| USB | USB Micro B (for external card reader connection) |
| Analogue video in | Composite BNC connectors via Power/Video/Audio cable |
| Audio out | Left and Right RCA connectors via Power/Video/Audio cable |
| Wi-Fi | Multiband 2.4 GHz and 5 GHz, 802.11b/g/n |
| Bluetooth | v4.0 (combined with Wi-Fi module) |
| GPS antenna | TNC type connector (optional external antenna) |
| Transducer | 25-pin RV / RVM connector and 11-pin 1 kW connector |
GNSS receiver
| GNSS compatibility | GPS, GLONASS, Beidou, Galileo |
| Channels | Track up to 28 satellites simultaneously |
| Position accuracy | Without SBAS: <=15 m 95% of the time; with SBAS: <=5 m 95% of the time |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Refresh rate | 10 Hz (10 times per second) |
| Cold start (Time To First Fix) | <2 minutes |
| Antenna | Internal antenna, optional external antenna connection |
| Geodetic datum | WGS-84 (alternatives can be selected on the display) |
| Operating frequency | 1574 MHz to 1605 MHz |
Sonar (RVM variant)
| Sonar module | Internal RealVision Max 3D and 1 kW CHIRP |
| Channels (RV/RVM connection) | RealVision Max 3D, CHIRP, DownVision, SideVision, conical (CPT-S) |
| CHIRP range | 0.6 m (2 ft) to 366 m (1,200 ft) |
| DownVision range | 0.6 m (2 ft) to 183 m (600 ft) |
| SideVision range | 0.6 m (2 ft) to 91 m (300 ft) |
| RealVision Max 3D range | 0.6 m (2 ft) to 91 m (300 ft) |
| Traditional sonar range | 0.9 m (3 ft) to 1,524 m (5,000 ft) (1 kW transducer) |
Conformance
| Conformance / approvals | Radio Equipment Directive 2014/53/EU; EN 60945:2002; FCC Part 15C and Part 15E; ISED ICES-003; NMEA 2000 certified |
| Product markings | UKCA, CE, FCC, ISED, Japan, Australian Tick, Brazil Anatel, WEEE |
