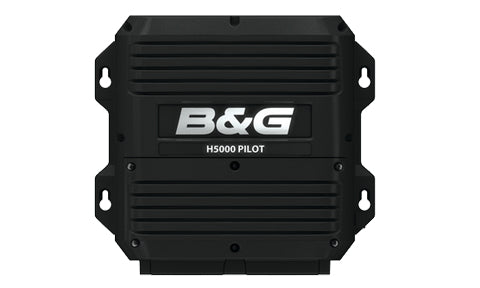

B&G H5000 Pilot Computer

B&G

B&G H5000 Pilot Computer

Name: B&G H5000 Pilot Computer
Brand: B&G
SKU: 000-11554-001
Price: 2290.00 GBP
Availability: InStock

£2,290.00

Tax included. Shipping calculated at checkout.

000-11554-001

The B&G H5000 Pilot Computer is the record-breaking autopilot brain trusted in the toughest offshore conditions. Dedicated sailing algorithms including Gust Response, Recovery and High Wind Response keep the boat on course as conditions change, steering to heading, wind or waypoint. Ideal for short-handed cruisers and racers, it integrates fully with H5000 instruments for precise, responsive self-steering.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

No extended cover
+1 year cover £114.50
+2 years cover £229.00
+3 years cover £343.50

Extended cover is added to your order and confirmed with your warranty documentation.

Description

H5000,Pilot Computer: The record-breaking B&G Pilot features dedicated steering modes and sailing algorithms including Gust Response, Recovery and High Wind Response. It's been proven in the toughest conditions and most testing environments and is ideal for short-handed cruisers or racers.

Note: An H5000 Hydra, Hercules or Performance CPU is required to steer to wind

PRODUCT DETAILS

Selectable steering modes: elect to steer to Heading, Wind or Waypoint
AWA and TWA steering: utilise Apparent, True or Polar wind modes for optimum performance under sail
Intuitive and responsive: gust and high-wind response modes for rapid response to changing conditions
Optimum course keeping
Auto response switching and recovery mode for optimum course keeping in varying sea-states

1x H5000 Pilot Computer
4x Fixing screws, 3.5 x 19 mm
1x Micro-C Drop cable (male)
1x Micro-C T-Joiner
Connectors
1x 30Amp fuse

No exploded diagram available for this product.

No compatible transducers listed for this product.

Image coming soon

B&G Conn Pack, H5000 Pilot CPU

B&G Zeus S-12 Ultrawide 12 Inch Display

B&G Zeus SR - 10" Chartplotter

B&G Zeus2 - ZM16-T 16 inch Glass Helm Touch Monitor

B&G Zeus3 16 GH 16 inch Glass Helm Display

B&G Zeus3S 9 MFD

B&G, Lowrance, Simrad RF300 Rudder Feedback

B&G, Simrad DD15 Direct Mechanical Drive

B&G, Simrad Hydraulic Ram T3 12v Up to 36,000kg Displacement

B&G, Simrad Hydraulic Ram T3 24v Up to 36,000kg Displacement

B&G, Simrad Hydraulic Ram T4 24v Up to 55,000kg Displacement

Image coming soon

Helm Drive - Type-S

PUMP-2, 12V, 0.8L

PUMP-3,12V,1.6L

PUMP-4, 12V, 3.0L

PUMP-5, 24V, 3.0L

Image coming soon

RF70N Rudder Feedback - NMEA2000

SD10 Drive Unit

Simrad RF25 Rudder Feedback Unit

Simrad RF45X Rugged rudder Feedback Unit

B&G NEMESIS 9

B&G Triton2 Autopilot Keypad controller

B&G Triton2 Digital Display

B&G, Lowrance, Simrad WR10 Wireless Remote Autopilot Controller.

Image coming soon

B&G, Simrad OP50 or ZC2 Dial now with grub screw

Image coming soon

RF40 Rudder Feedback - Resistance

Physical

Compass Safe	0.3m (11.8in)
Weight	1.1 kg (2.4 lbs)
Dimensions H x W x D	211 x 196 x 65.5mm (8.29 x 7.72 x 2.58in)

Electrical

Supply Voltage	12/24VDC +30 -10%
Drive output	12/24VDC. Rev. motor control 30A, 50A peak (1 sec.). Solenoid control: 10A (min. 10mA)
Power Consumption max	50mA (from CAN)
Power Consumption typical	50mA (from CAN)
Recommended Fuse Rating	Internal fuse 30A (Slow)

Environment

Operating Temperature Range	-15 to +55C (5 to 131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)

Connectivity

NMEA 2000 Connectivity	1x CAN terminal, 1 LEN
NMEA 0183 Sentences supported	Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)

Autopilot

Compass sensor support	NMEA2000, NMEA0183
Engine Drive systems integration	Reversible pump, Solenoid valve on/off
Rudder sensor support	RF300, RF45X, RF25N, RF70

Other

Warranty Period

2 years

Do I need an H5000 CPU to use the Pilot Computer?

Yes. To steer to wind the Pilot Computer requires an H5000 Hydra, Hercules or Performance CPU on the network. The instrument system feeds sensor data over the network to the Pilot Computer, which processes it and drives the steering gear.

What steering features does the H5000 Pilot offer?

The record-breaking B&G Pilot includes dedicated sailing algorithms and steering modes such as Gust Response, Recovery and High Wind Response, developed and proven in demanding offshore and racing conditions.

How is the Pilot Computer connected?

It connects to the H5000 Micro-C (NMEA 2000 compatible) network backbone, which carries data between the CPU, displays, sensors and the Pilot Computer. It then outputs to the drive system you fit.

What drive types can the Pilot Computer control?

It can drive a linear ram, rotary drive or hydraulic pump. B&G and Simrad reversible hydraulic pumps, hydraulic rams and drive units are compatible options for steering the vessel to the desired heading or course.

How do I control the autopilot?

You can control and set up the pilot from an H5000 Pilot Controller, an H5000 Graphic Display, a compatible Triton2 display or keypad, or wireless controllers such as the WR10. The Pilot Controller provides dedicated access to all autopilot functions.

What is the environmental rating of the Pilot Computer?

The H5000 Pilot Computer carries an IPX4 environmental protection rating and should be mounted vertically in a protected location below decks, with a compass safe distance of 0.3 m (1.0 ft).
